Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery and bracket.
  2. Remove cable from range lever.
  3. Set range lever in neutral position.
  4. Remove range lever and install alignment tool (J45404).
  5. Loosen park/neutral position (PNP) switch bolts.
  6. Adjust park/neutral position (PNP) switch so that alignment tool (J45404) pointer aligns with neutral base line on park/neutral position (PNP) switch body.

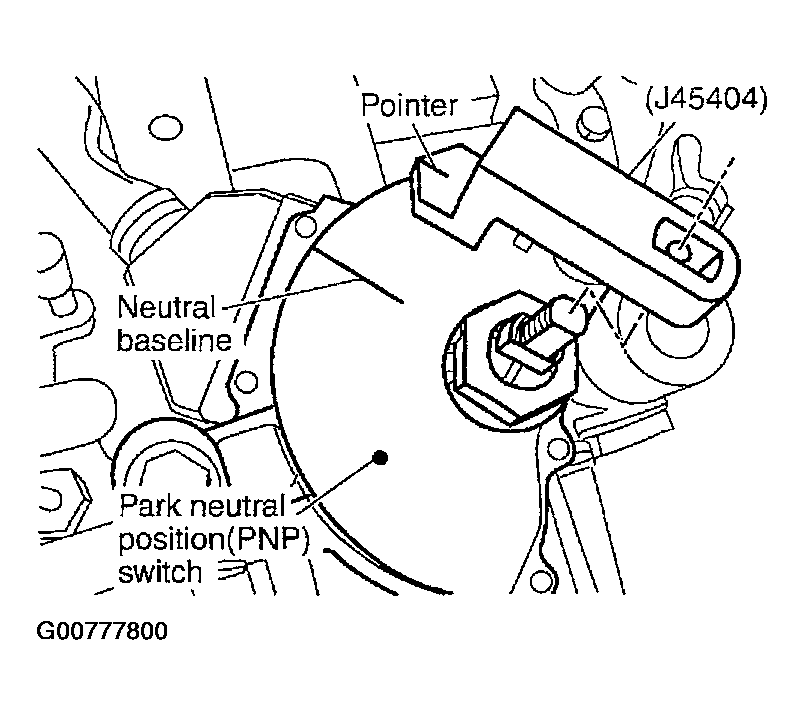

    Fig 1: Park/Neutral Position (PNP) Switch Adjustment (1 Of 2)
    G00777800Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Tighten park/neutral position (PNP) switch bolts.

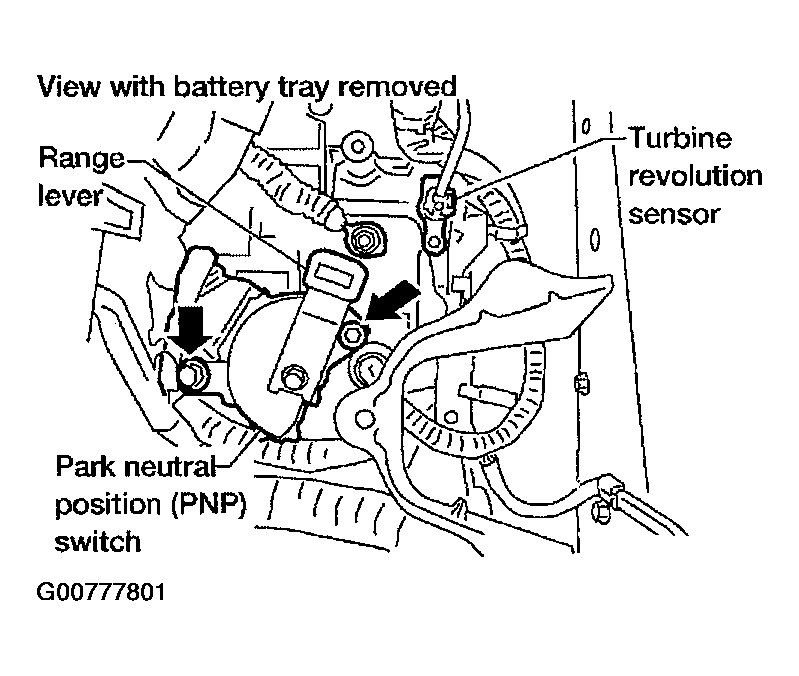

    Fig 2: Park/Neutral Position (PNP) Switch Adjustment (2 Of 2)
    G00777801Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Reinstall range lever and cable.
  9. Adjust control cable. Refer to "Control Cable Adjustment ".
  10. Reinstall battery and bracket.
  11. Check continuity of park/neutral position (PNP) switch. Refer to "Component Inspection ".
