PNP Switch

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check continuity between PNP switch terminals while moving selector lever. Refer to the following table.

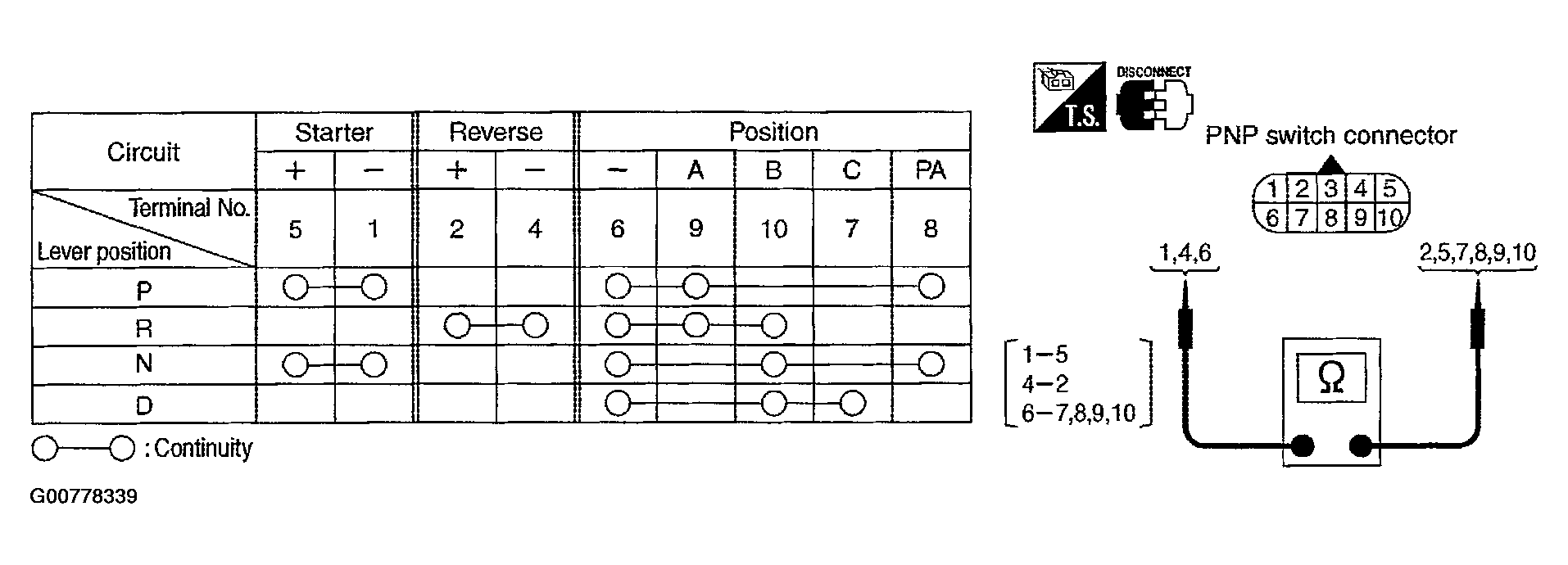

    Fig 1: PNP Switch Continuity Reference Table
    G00778339Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If NG, check again with control cable disconnected. (Refer to Step 1 above.)
  3. If OK on step 2, adjust control cable. Refer to "Control Cable Adjustment ".
  4. If NG on step 2, remove park/neutral position (PNP) switch from A/T and check continuity of park/neutral position (PNP) switch terminals. (Refer to step  1 above.)
  5. If OK on step 4, adjust park/neutral position (PNP) switch. Refer to "Park/Neutral Position (PNP) Switch Adjustment ".
  6. If NG on step 4, replace park/neutral position (PNP) switch.
