Removal & Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove appropriate seat belt pretensioner. See SEAT BELT PRETENSIONER . Remove nuts from satellite sensor and discard. Disconnect satellite sensor electrical connector. See Fig 1 . Remove satellite sensor.
To install, reverse removal procedure. Tighten NEW satellite sensor nuts, seat belt pretensioner retaining bolt and anchor bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

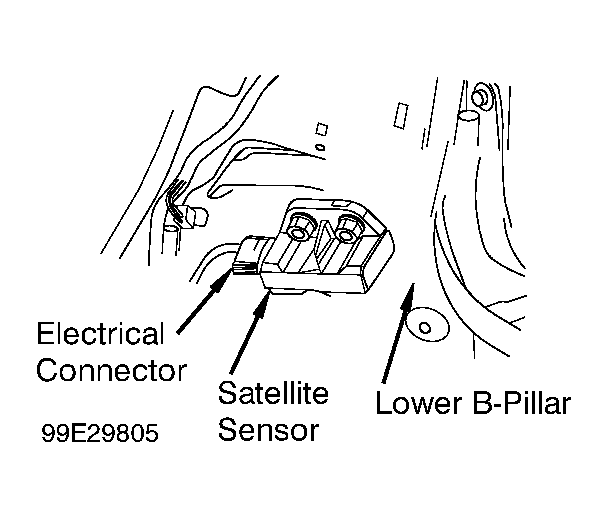

Fig 1: Identifying Satellite Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
