5. Check BCM Input (Compressor On) Signal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check compressor ON/OFF signal. Refer to "CONSULT-II ".

  1. A/C SW ON : COMP ON SIG ON
  2. A/C SW OFF : COMP ON SIG OFF

OK or NG

  1. OK, GO TO 8 .
  2. NG, GO TO 6.

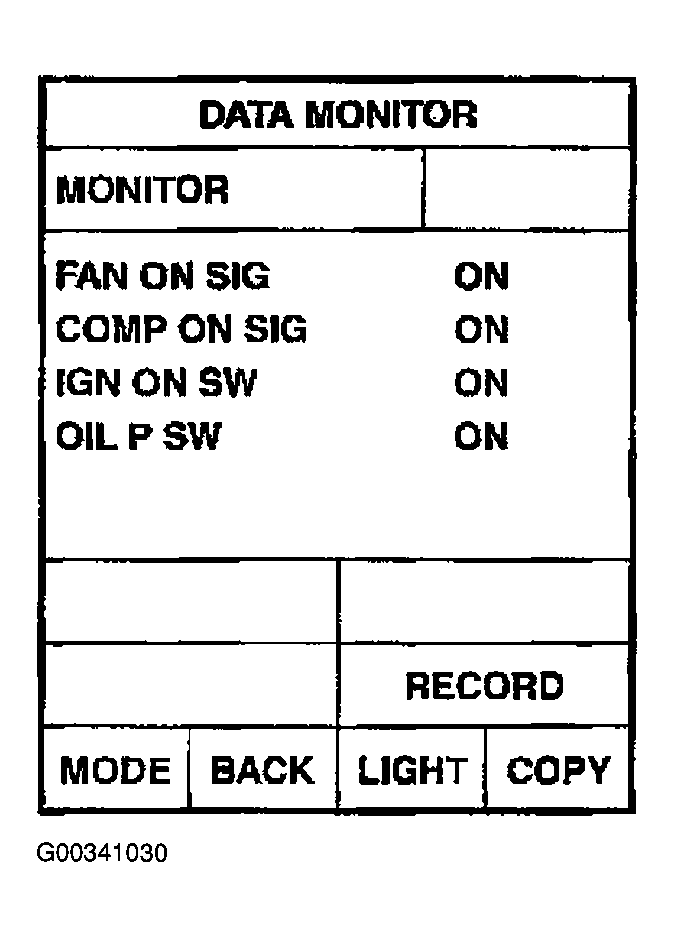

Fig 1: CONSULT-II Data Monitor Screen
G00341030Courtesy of NISSAN MOTOR CO., U.S.A.
