8. Check Refrigerant Pressure Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

WITH CONSULT-II
1. Start engine.
2. Check voltage of refrigerant pressure sensor. Refer to "CONSULT-II
WITHOUT CONSULT-II
1. Start engine.
2. Check voltage between ECM harness connector F54 terminal 70 (W) and ground. See Fig 1.

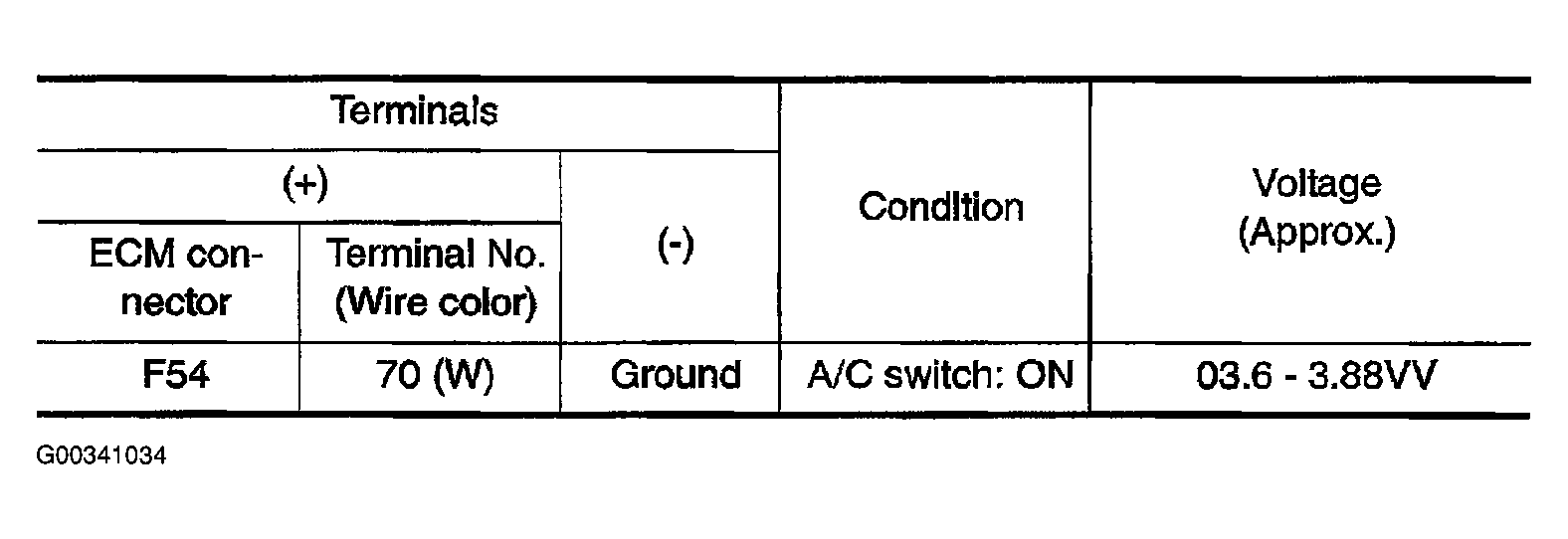

Fig 1: Checking Refrigerant Pressure Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK,
- WITH CONSULT-II
  1. GO TO 9.
- WITHOUT CONSULT-II
  1. GO TO 10 .
NG, Refer to REFRIGERANT PRESSURE SENSOR .
