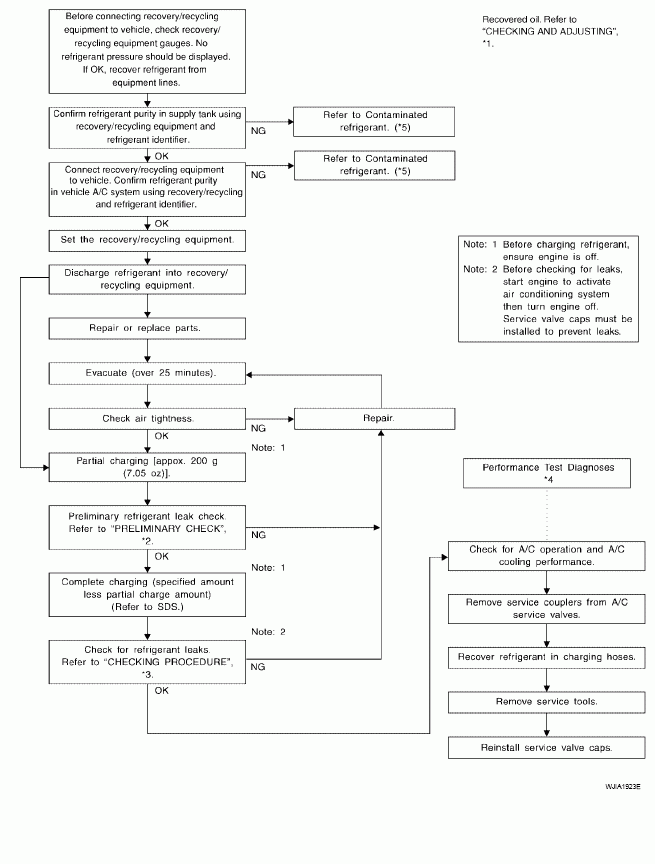

Evacuating System and Charging Refrigerant
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

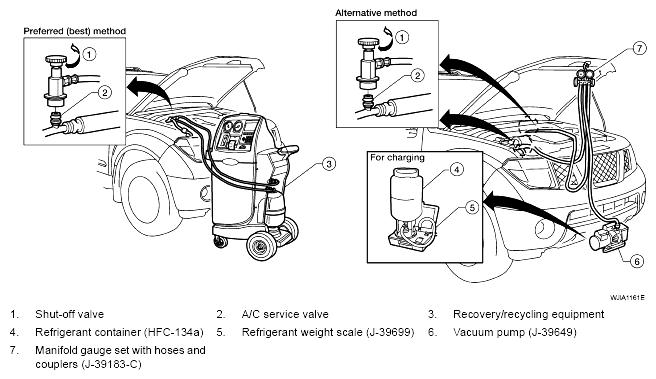

| Footnotes (See Fig. 120) | References |
| *1 | CHECKING AND ADJUSTING |
| *2 | CHECKING FOR REFRIGERANT LEAKS |
| *3 | CHECKING FOR REFRIGERANT LEAKS |
| *4 | PERFORMANCE TEST DIAGNOSES |
| *5 | CONTAMINATED REFRIGERANT |
