Performance Test Diagnoses

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

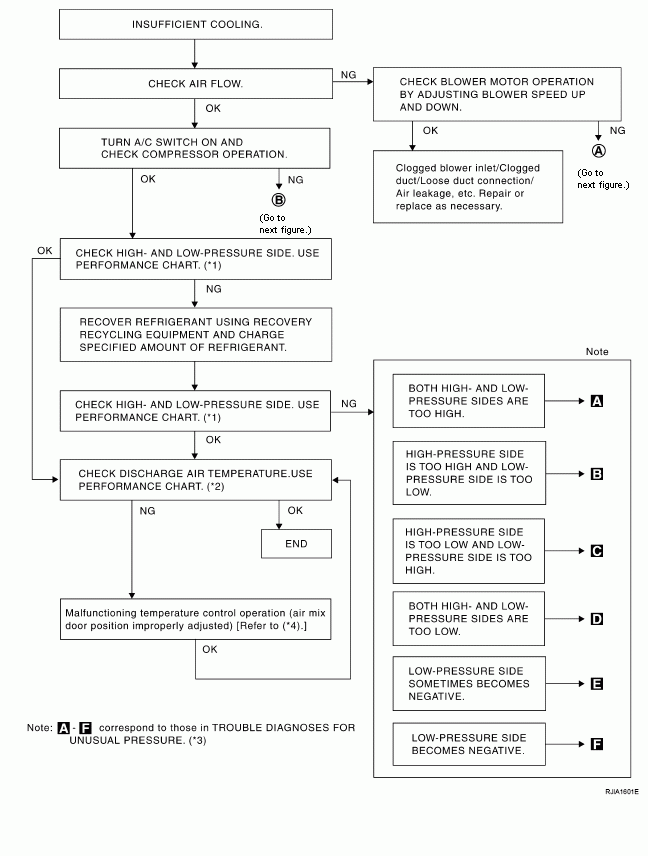

Fig 1: Identifying Trouble Diagnoses Flow Chart (1 Of 2)

G04913460

(*1) PERFORMANCE CHART

(*2) PERFORMANCE CHART

(*3) TROUBLE DIAGNOSES FOR UNUSUAL PRESSURE

(*4) Air Mix Door Motor Circuit

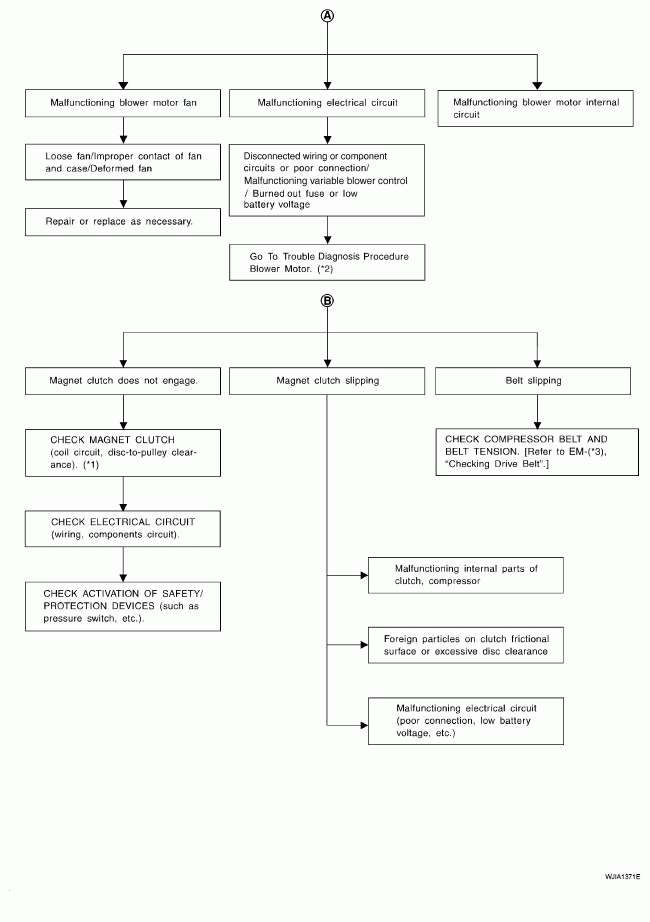

Fig 2: Identifying Trouble Diagnoses Flow Chart (2 Of 2)

G04913461

(*1) Removal and Installation for Compressor Clutch

(*2) Front Blower Motor Circuit

(*3) CHECKING DRIVE BELTS
