With Consult-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "ON". (Do not start engine.)

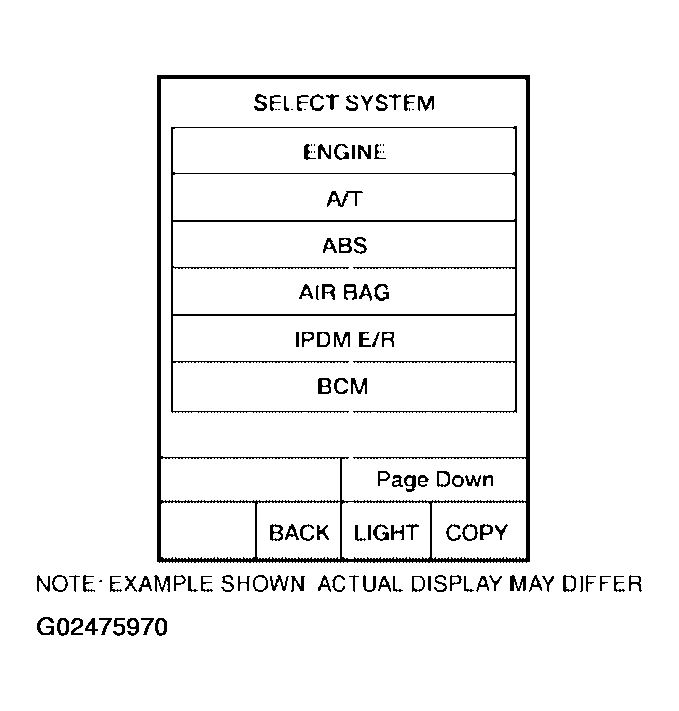

- Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
- Start engine.
- Drive vehicle and check for an increase of "VHCL/S SE-A/T" value in response to "VHCL/S SE-MTR" value.
If the check result is NG, go to DIAGNOSTIC PROCEDURE .
If the check result is OK, go to following step.
- Maintain the following conditions for at least 2 consecutive minutes.
FLUID TEMP: More than 20°C (68°F)
VHCL/S SE-A/T: 70 km/h (43 MPH) or more
SLCT LVR POSI: "D" position
If the check result is NG, go to DIAGNOSTIC PROCEDURE .
