Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TURBINE REVOLUTION SENSOR CIRCUIT

With CONSULT-II

Start engine.
Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

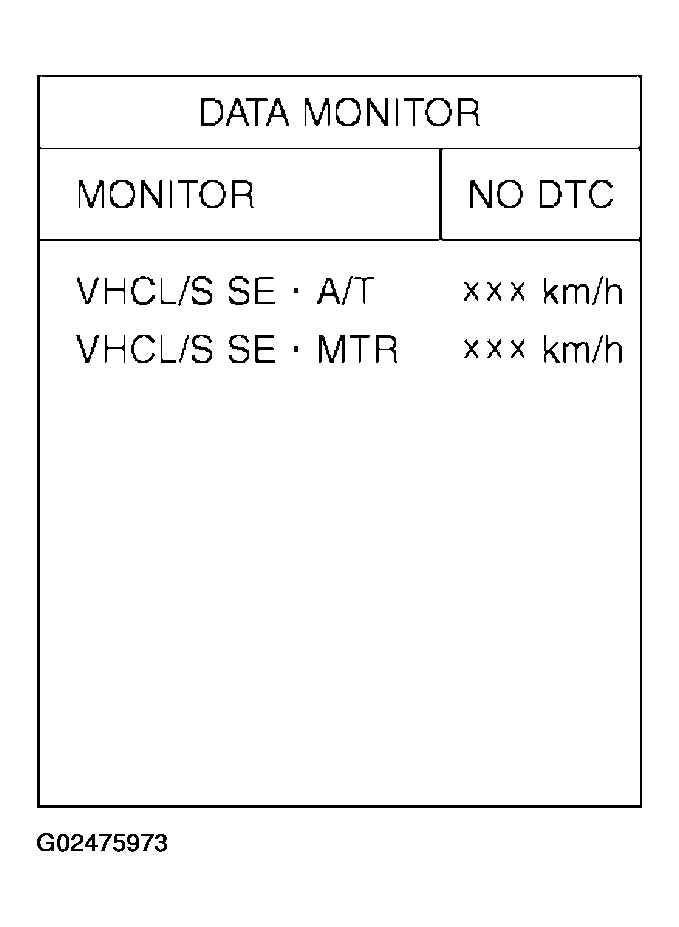

Fig 1: Consult-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.

Drive vehicle and read out the value of "VHCL/S SE-AT".

MONITOR ITEM - VHCL/S SE-AT

Monitor item	Condition	Specification
VHCL/S SE-AT	During driving	Approximately matches the speedometer reading.

Without CONSULT-II

Start the engine.

Check pulse between TCM connector terminals 22 and 29.

PULSE (HERTZ) SPECIFICATIONS - TCM CONNECTOR TERMINALS 22 AND 29

Connector	Terminal (Wire color)	Condition	Data (Approx.)
E142	22 (L) - 29 (R) (ground)	When moving at 20 km/h (12 MPH) in 1st gear.	119 Hz

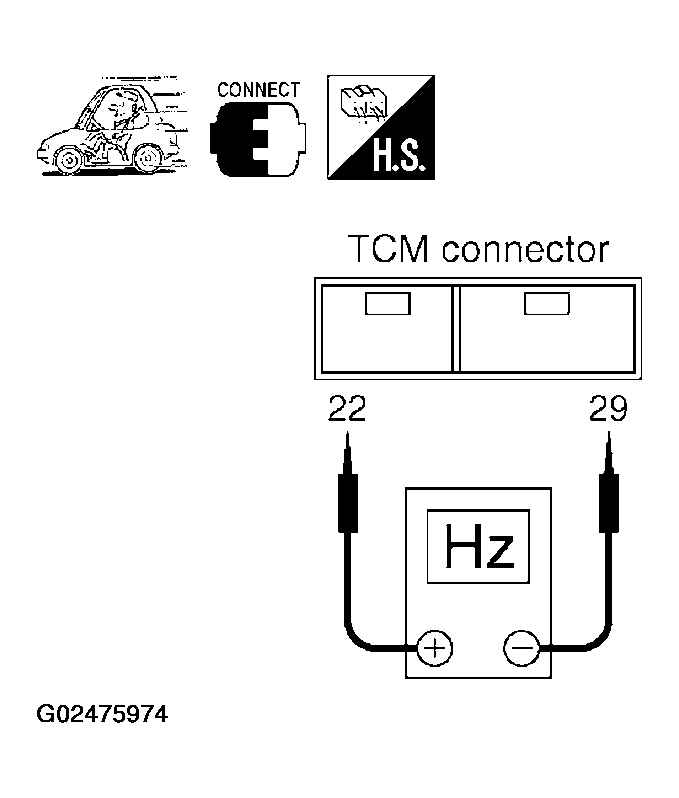

Fig 2: Checking Pulse (Hertz) Between TCM Connector Terminals 22 & 29

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.
NG : GO TO 2.

DETECT MALFUNCTIONING ITEM
Check the following.
- Open or short-circuit in the harness between TCM and turbine revolution sensor.
- Revolution sensor. Refer to COMPONENT INSPECTION .
OK or NG
- OK : GO TO 3.
- NG : Repair or replace damaged parts.
CHECK DTC
Perform "DTC Confirmation Procedure". Refer to DTC CONFIRMATION PROCEDURE .

OK or NG
- OK : INSPECTION END
- NG : GO TO 4.
CHECK TCM
1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
- OK : INSPECTION END
- NG : Repair or replace damaged parts.
