With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

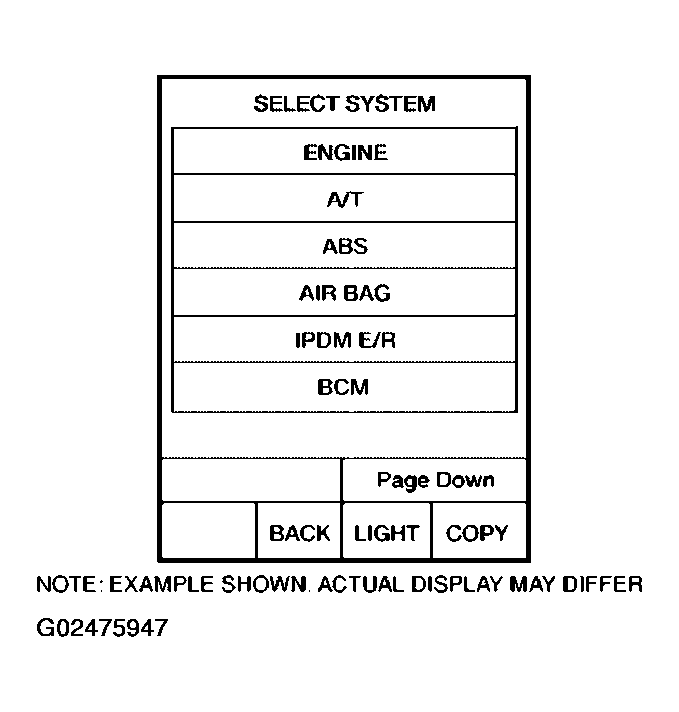

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G02475947Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. Drive vehicle and maintain the following conditions for at least 15 minutes (Total). (It is not necessary to maintain continuously.) VHCL SPEED SE-A/T: 40 km/h (25 MPH) or more SLCT LVR POSI: "D" position
  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .
