Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FLUID TEMPERATURE SENSOR SIGNAL

    With CONSULT-II

    1. Start engine.
    2. Select "A/T" with "DATA MONITOR" mode in CONSULT-II.

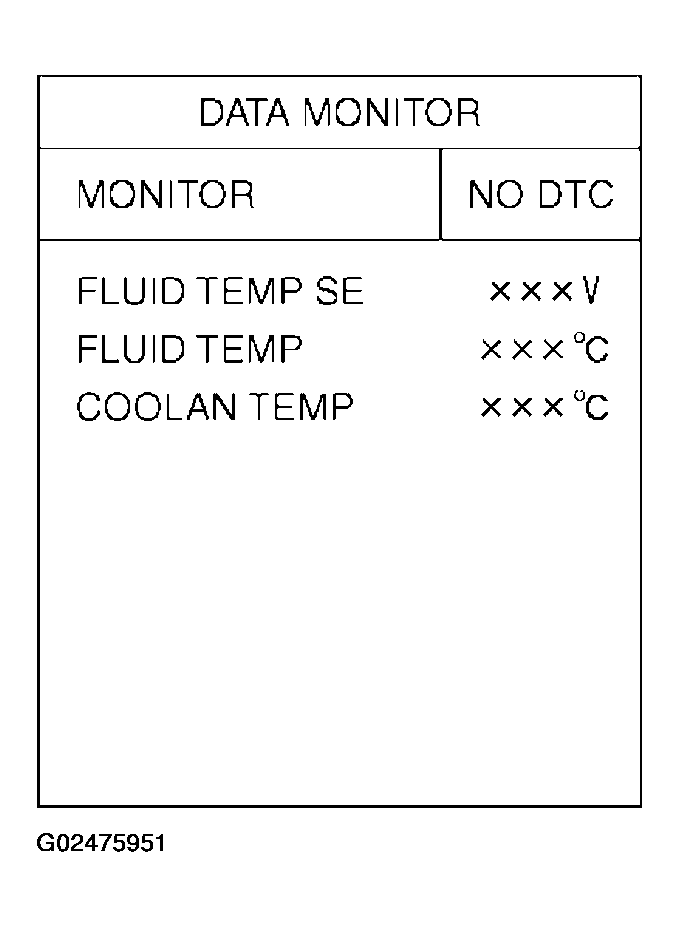

      Fig 1: CONSULT-II Display - DATA MONITOR
      G02475951Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Read out the value of "FLUID TEMP SE".

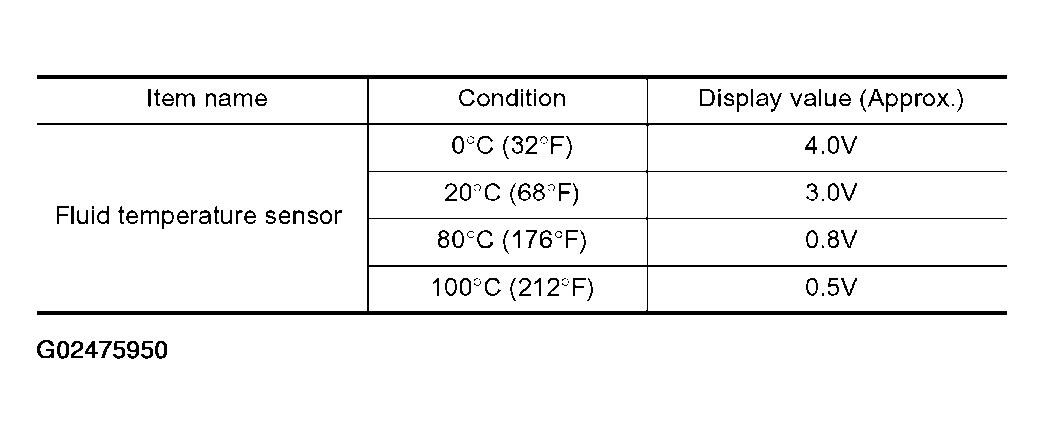

      Fig 2: A/T Fluid Temperatur Sensor - Temperature Versus Voltage Specifications
      G02475950Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine.
    2. Check voltage between TCM connector terminals 41 and 42 while warming up A/T. Refer to WIRING DIAGRAM - AT - FTSP .

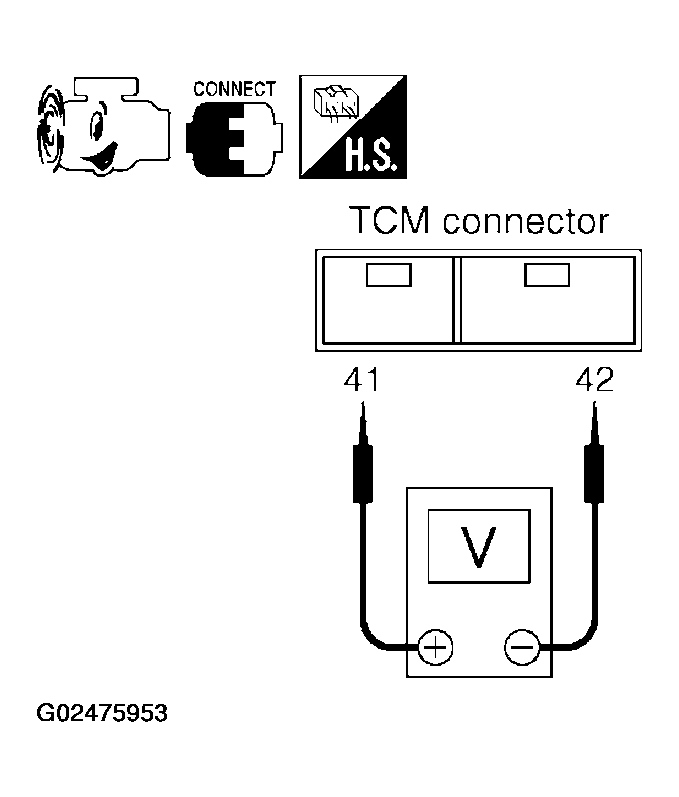

      Fig 3: Checking Voltage Between TCM Connector Terminals 41 & 42
      G02475953Courtesy of NISSAN MOTOR CO., U.S.A.

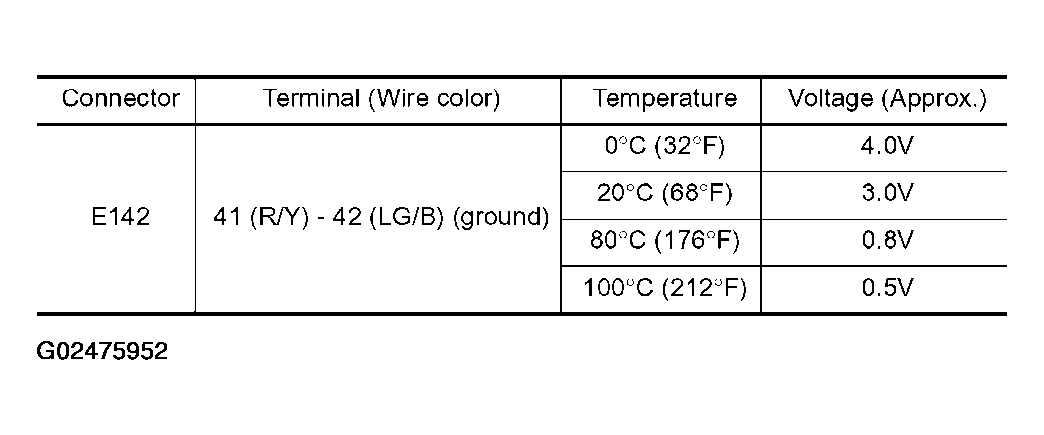

      Fig 4: TCM Connector Terminals 41 & 42 Voltage Specifications
      G02475952Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch "OFF".
    4. Disconnect the TCM connector.
    5. Check if there is continuity between the connector terminal and ground.

    OK or NG

    • OK : GO TO  6.
    • NG : GO TO 2.
  2. CHECK FLUID TEMPERATURE SENSOR CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect the TCM connector.
    3. Check resistance between terminals 41 and 42.

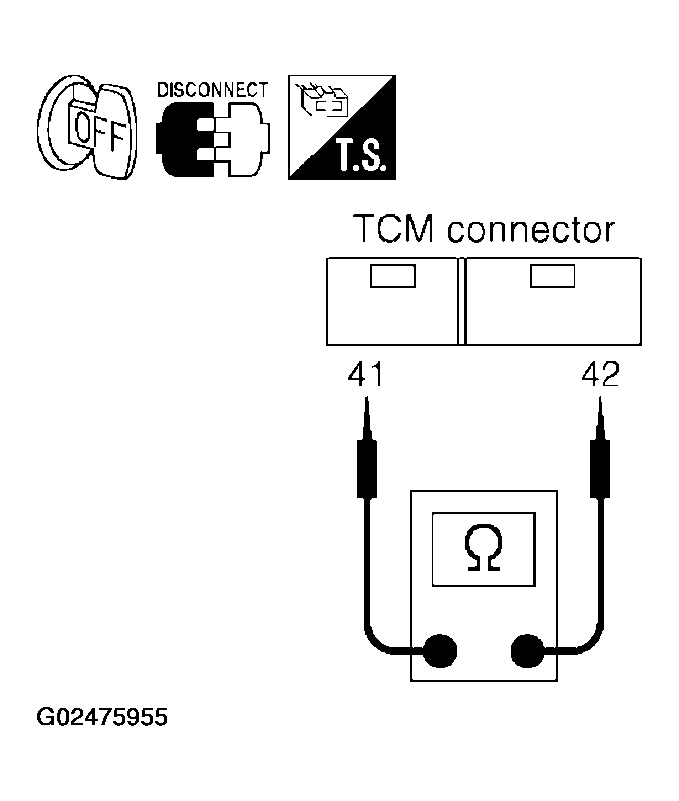

      Fig 5: Checking Resistance Between TCM Connector Terminals 41 & 42
      G02475955Courtesy of NISSAN MOTOR CO., U.S.A.

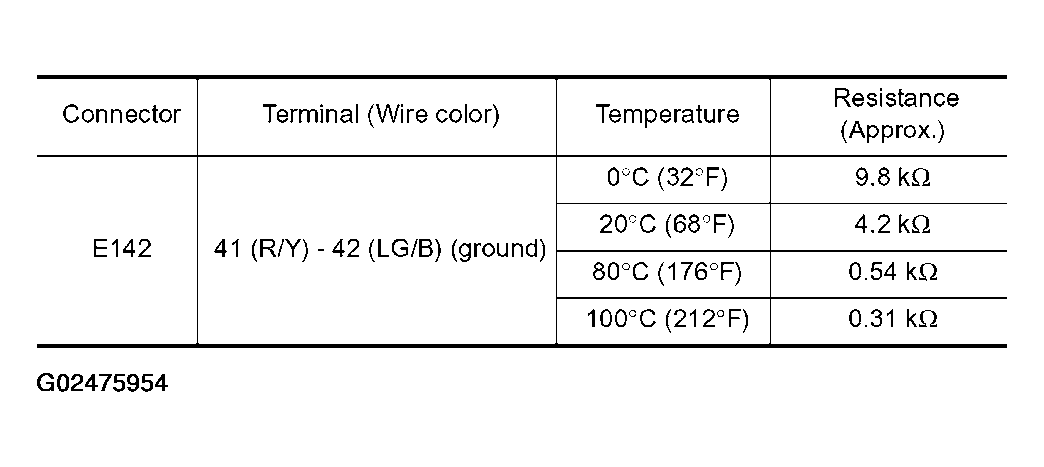

      Fig 6: TCM Connector Terminals 41 & 42 - Temperature Versus Resistance Specifications
      G02475954Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check if there is continuity between the connector terminal and ground.

    OK or NG

    • OK : GO TO  6.
    • NG : GO TO 3.
  3. CHECK TERMINAL CORD ASSEMBLY WITH A/T FLUID TEMPERATURE SENSOR
    1. Turn ignition switch "OFF".
    2. Disconnect terminal cord assembly harness connector.
    3. Check resistance between terminals 4 and 8.

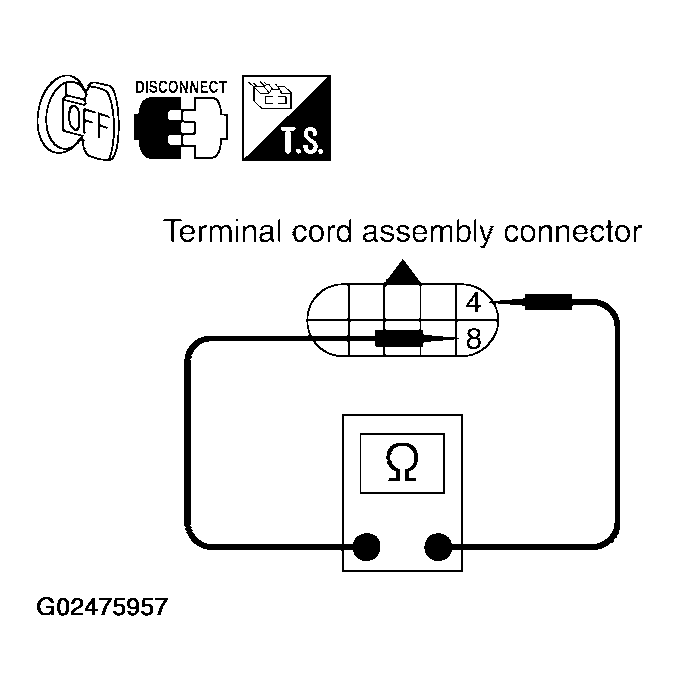

      Fig 7: Checking Resistance Between Terminal Cord Assembly Terminals 4 & 8
      G02475957Courtesy of NISSAN MOTOR CO., U.S.A.

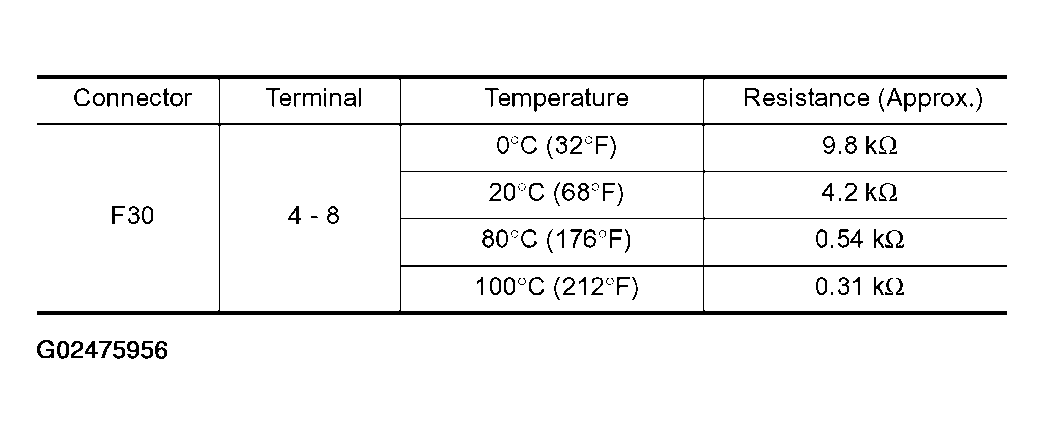

      Fig 8: Terminal Cord Assembly Terminals 4 & 8 - Resistance Versus Temperature Specifications
      G02475956Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Reinstall any part removed.

    OK or NG

    • OK : GO TO 4.
    • NG : GO TO  5.
  4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY

    Check the following.

    • Open or short-circuit in the harness between TCM and terminal cord assembly.

    OK or NG

    • OK : GO TO 6.
    • NG : Repair or replace damaged parts.
  5. CHECK A/T FLUID TEMPERATURE SENSOR
    1. Remove side cover. Refer to SIDE COVER .
    2. Disconnect A/T fluid temperature sensor.
    3. Check resistance between terminals 4 and 8.

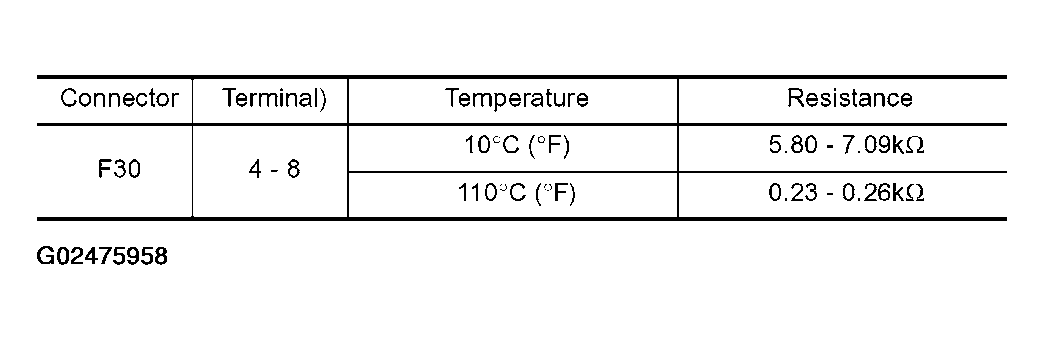

      Fig 9: Resistance Versus Temperature Specifications - A/T Fluid Temperature Sensor
      G02475958Courtesy of NISSAN MOTOR CO., U.S.A.

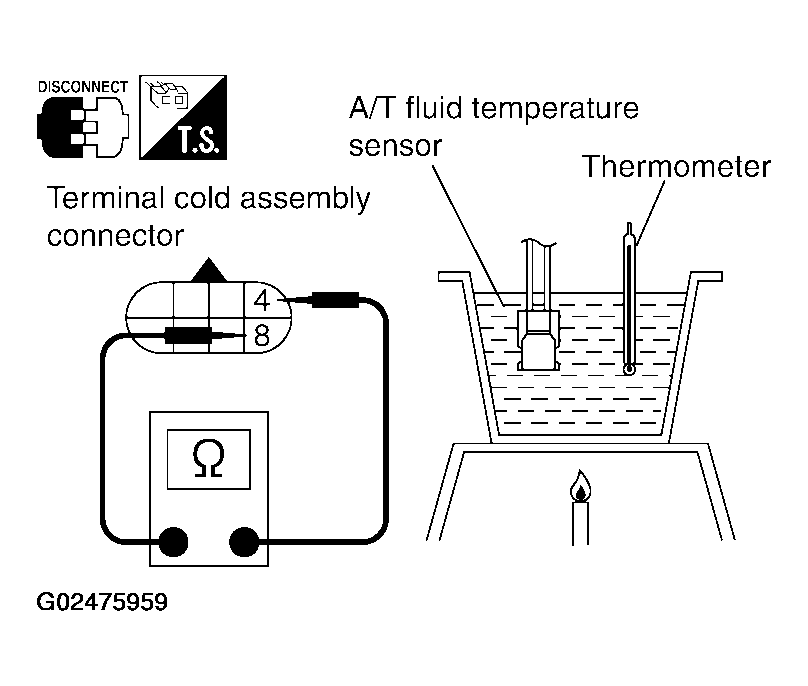

      Fig 10: Checking Resistance Between A/T Fluid Temperature Sensor Terminals 4 & 8
      G02475959Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO 6.
    • NG : Repair or replace transmission wire. Refer to TRANSMISSION WIRE .
  6. CHECK DTC

    Perform "DTC Confirmation Procedure". Refer to DTC CONFIRMATION PROCEDURE .

    OK or NG

    • OK : INSPECTION END
    • NG : GO TO 7.
  7. CHECK TCM
    1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
    2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

    OK or NG

    • OK : INSPECTION END
    • NG : Repair or replace damaged parts.
