Diagnostic Trouble Codes Confirmation Procedure: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If "DTC Confirmation Procedure" has been previously performed, always turn ignition switch "OFF" and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

Turn ignition switch "ON". (Do not start engine.)
Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

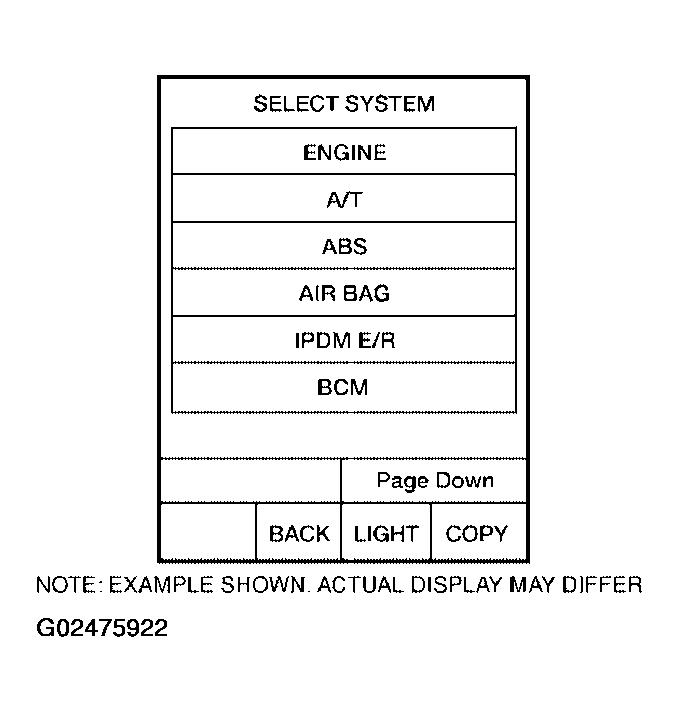

Fig 1: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Move selector lever to each position.
SLCT LVR POSI: "P", "R", "N", "D" or "L" position
Wait for at least 5 consecutive seconds at each position.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .
