Diagnostic Procedure

With CONSULT-II

1. Turn ignition switch "ON". (Do not start engine.)
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

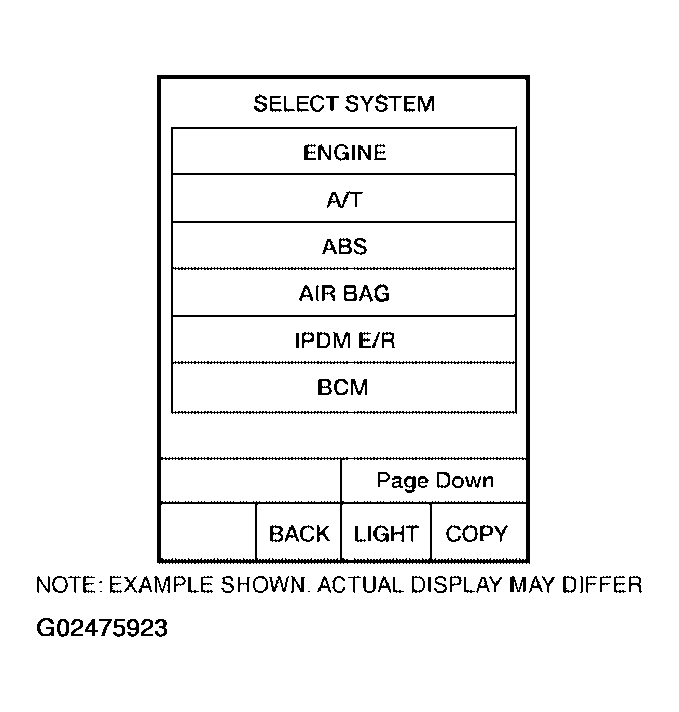

   Fig 1: CONSULT-II Display - SELECT SYSTEM

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Move selector lever to "P", "R", "N", "D" and "L" position and check the value of "PNP SW A", "PNP SW B", "PNP SW C", "PNP SW PA" and "PNP SW PN".
   SELECTOR LEVER DESCRIPTION CHART



   Selector lever	"PNPSW A"	"PNP SW B"	"PNP SW C"	"PNP SW PA"	"PNP SW PN"
   P	ON	OFF	OFF	ON	ON
   R	ON	ON	OFF	OFF	OFF
   N	OFF	ON	OFF	ON	ON
   D	OFF	ON	ON	OFF	OFF
   L	ON	ON	ON	ON	OFF

Without CONSULT-II

1. Turn ignition switch "ON". (Do not start engine.)
2. Move selector lever to "P", "R", "N", "D" and "L" position and check voltage between the TCM connector terminals and ground.

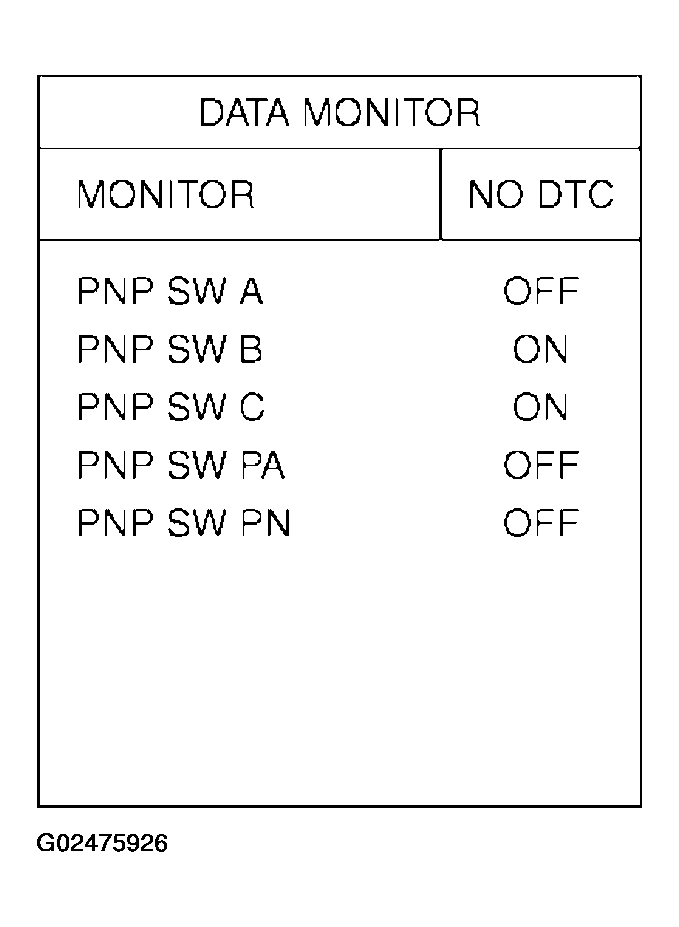

   Fig 2: CONSULT-II Display - DATA MONITOR

   Courtesy of NISSAN MOTOR CO., U.S.A.

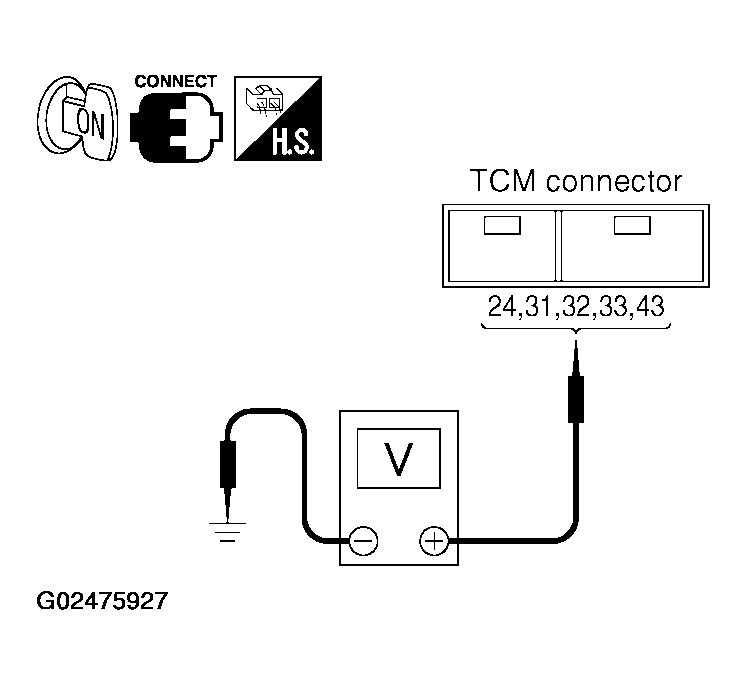

   Fig 3: Checking Voltage Between TCM Connector Terminals & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : GO TO  5.
• NG : GO TO 2.

1. Turn ignition switch "OFF".
2. Disconnect the PNP switch connector.
3. Turn ignition switch "ON". (Do not start engine.)
4. Check the voltage between PNP switch connector terminal 1 and ground.
   PNP SWITCH VOLTAGE SPECIFICATIONS



   Connector	Terminal (Wire color)	Voltage
   F29	1 (G) - Ground	Battery voltage

5. Turn ignition switch "OFF".
6. Check voltage between PNP switch connector terminal 1 and ground.

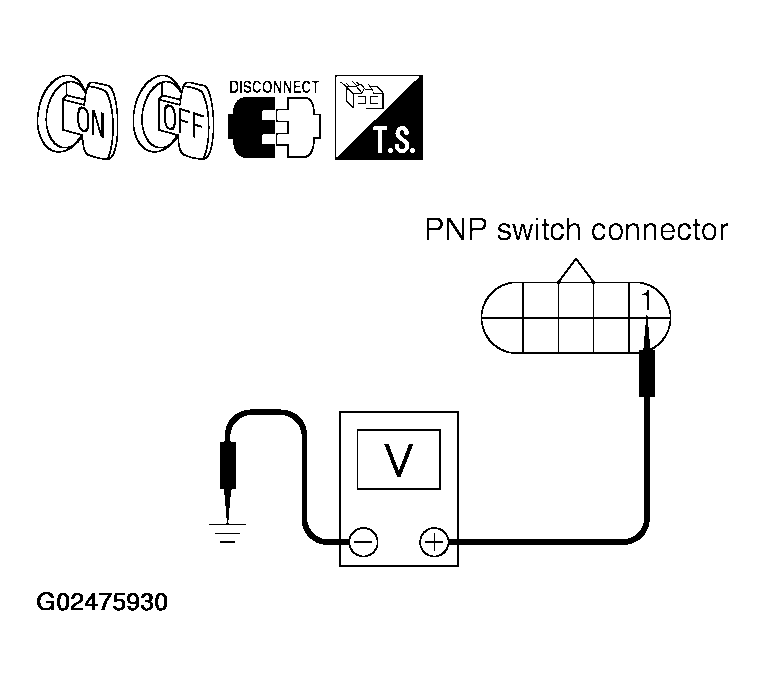

   Fig 4: Checking Voltage Between PNP Switch Connector Terminal 1 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   VOLTAGE SPECIFICATIONS - PNP SWITCH CONNECTOR TERMINAL 1



   Connector	Terminal (Wire color)	Voltage
   F29	1 (G) - Ground	0V

7. If OK, check harness for short-circuit to ground or power source.

OK or NG

• OK : GO TO 3.
• NG : Check the following. If any items are damaged, repair or replace damaged parts.
  • Harness for short or open between ignition switch and PNP switch
  • Ignition switch and fuse

    Refer to POWER SUPPLY ROUTING CIRCUIT .

1. Turn ignition switch "OFF".
2. Disconnect the TCM connector and PNP switch connector.
3. Check continuity between TCM connector terminals 24, 31, 32, 43 and ground.

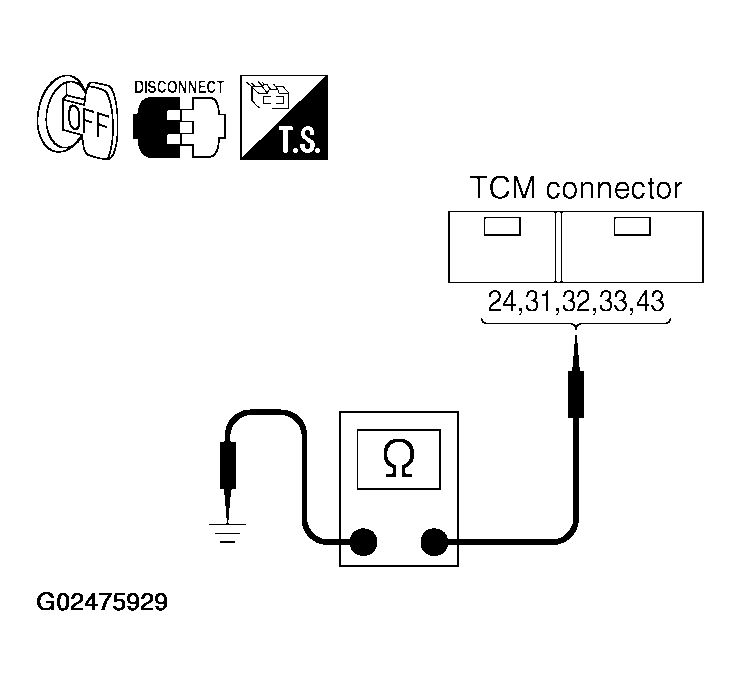

   Fig 5: Checking Continuity Between TCM Connector Terminals 24, 31, 32, 43 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

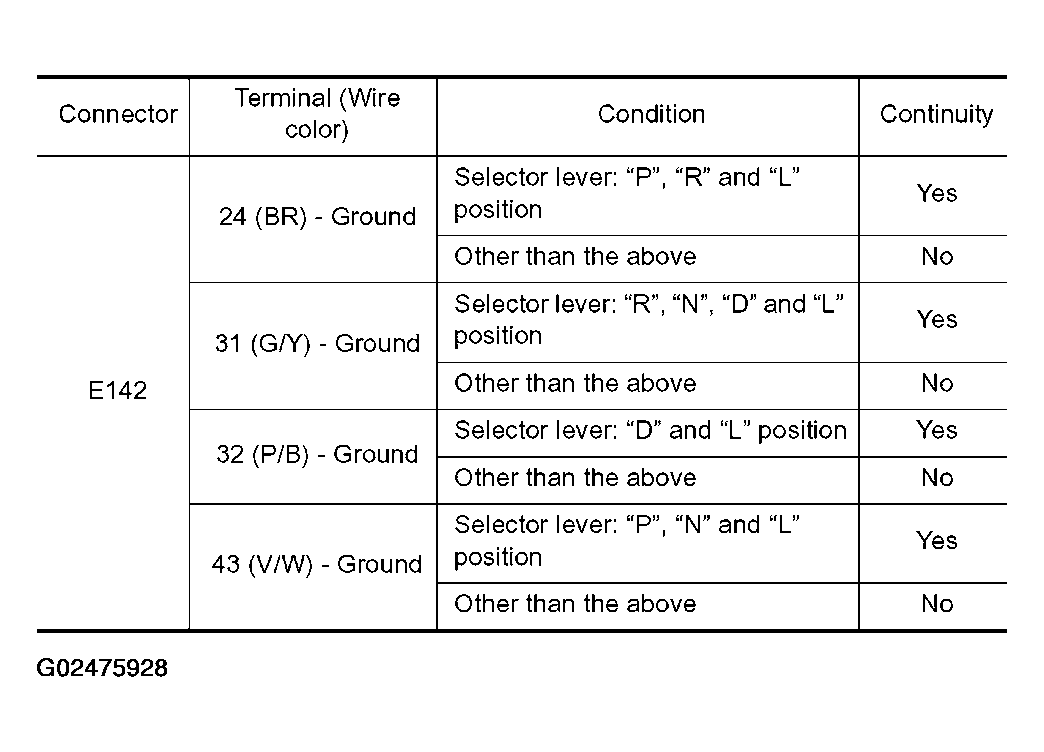

   Fig 6: TCM Connector E142 Continuity Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. If OK, check the following.
   • Harness for short-circuit to ground or power source.
   • Open or short-circuit in the harness between combination meter and TCM.

OK or NG

• OK : GO TO  5.
• NG : GO TO 4.

Check the following.

• Open or short-circuit in the harness between TCM and PNP switch A, B, C, PA.
• Open or short-circuit in the harness for ground of PNP switch.
• PNP switch. Refer to COMPONENT INSPECTION .

OK or NG

• OK : GO TO  6.
• NG : Repair or replace damaged parts.

Perform "DTC Confirmation Procedure". Refer to DTC CONFIRMATION PROCEDURE .

OK or NG

• OK : INSPECTION END
• NG : GO TO 6.

1. Check TCM input/output signal. Refer to TCM INPUT/OUTPUT SIGNAL REFERENCE VALUES .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

• OK : INSPECTION END
• NG : Repair or replace damaged parts.
