PNP Switch

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between PNP switch terminals while moving selector lever. Refer to Fig 1.

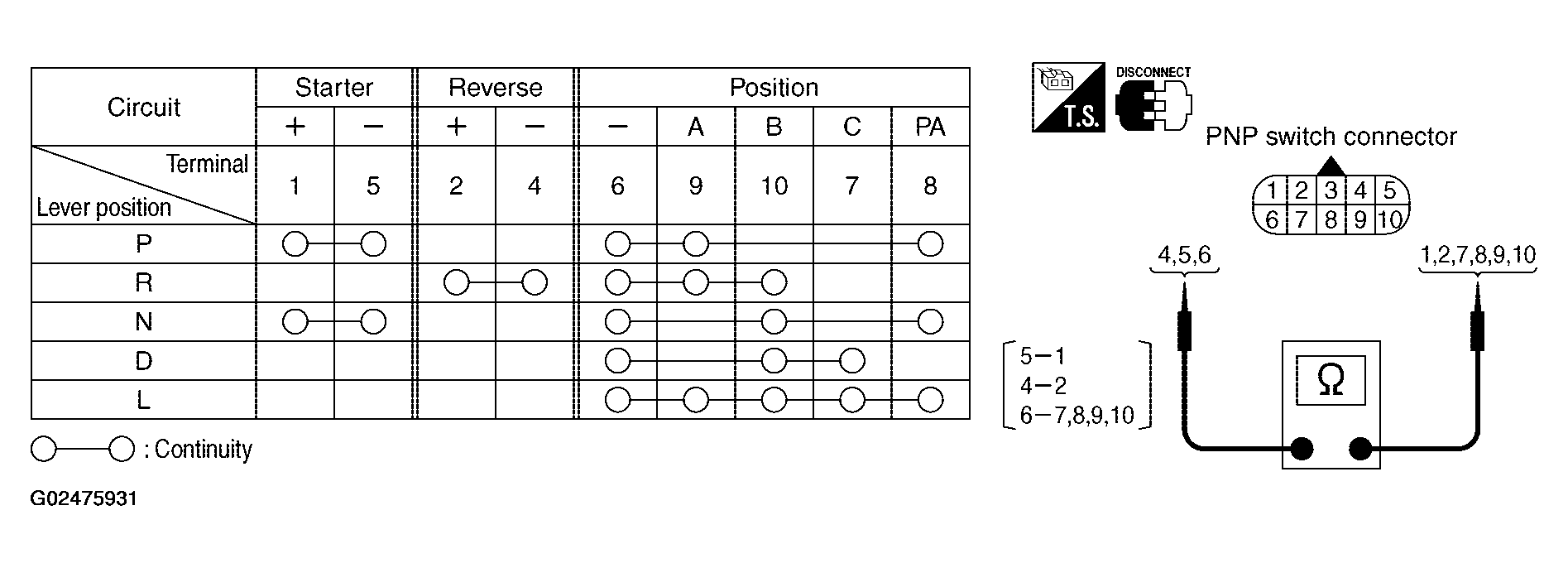

Fig 1: Checking Continuity Between PNP Switch Terminals While Moving Selector Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, check again with control cable disconnected. (Refer to step 1 above.)
If OK on step 2, adjust control cable. Refer to CONTROL CABLE ADJUSTMENT .
If NG on step 2, remove park/neutral position (PNP) switch from A/T and check continuity of park/neutral position (PNP) switch terminals. Refer to step 1 above.
If OK on step 4, adjust park/neutral position (PNP) switch. Refer to PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT .
If NG on step 4, replace park/neutral position (PNP) switch.
