Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery and bracket.
  2. Remove cable from range lever.
  3. Set range lever in neutral position.
  4. Remove range lever and install alignment tool (J-45404).
  5. Loosen park/neutral position (PNP) switch fixing bolts.

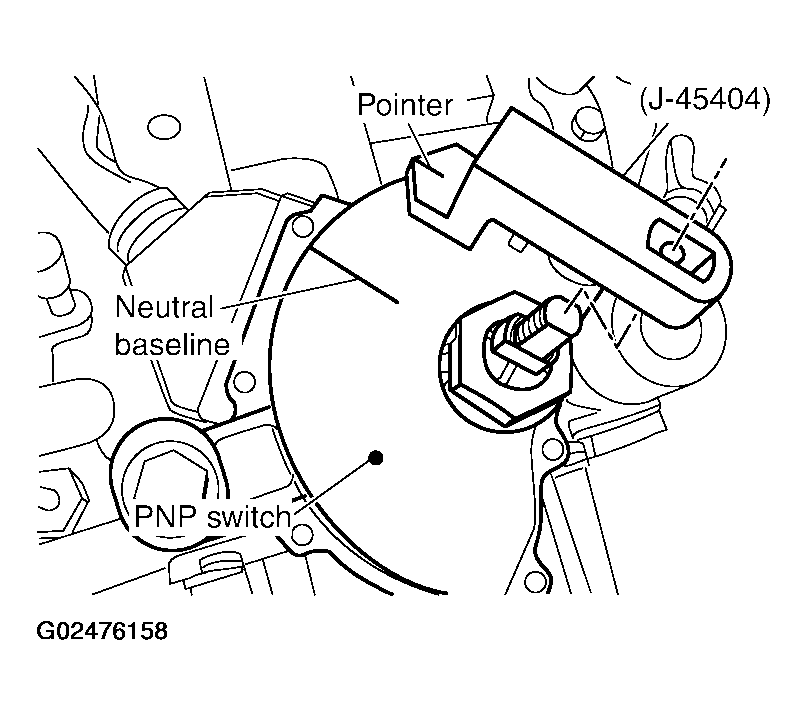

    Fig 1: Loosening Park/Neutral Position (PNP) Switch Fixing Bolts
    G02476158Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Adjust park/neutral position (PNP) switch so that alignment tool (J-45404) pointer aligns with neutral base line on park/neutral position (PNP) switch body.
  7. Tighten park/neutral position (PNP) switch fixing bolts.

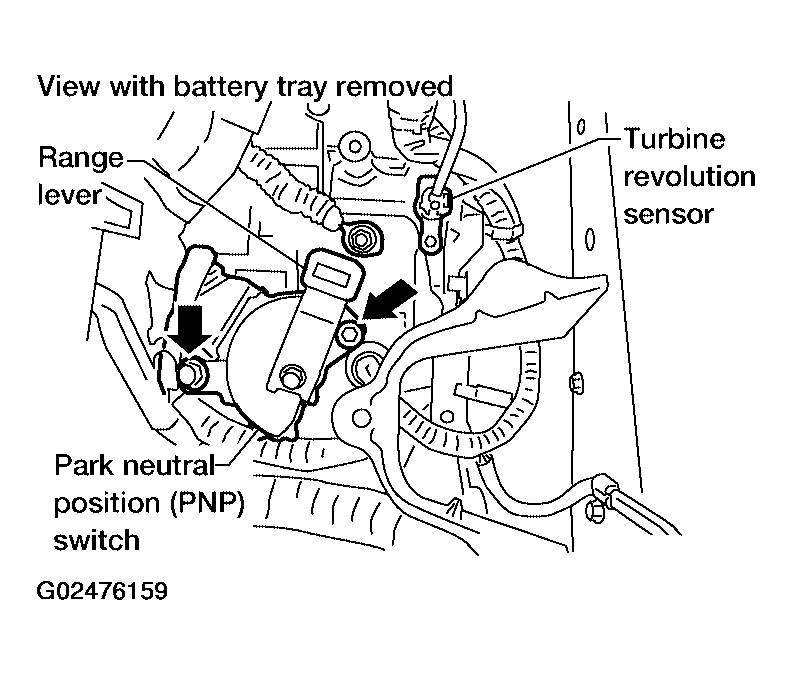

    Fig 2: Tightening Park/Neutral Position (PNP) Switch Fixing Bolts
    G02476159Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Reinstall range lever and cable.
  9. Adjust control cable. Refer to CONTROL CABLE ADJUSTMENT .
  10. Reinstall battery and bracket.
  11. Check continuity of park/neutral position (PNP) switch. Refer to COMPONENT INSPECTION .
