Camshaft End Play
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Install camshaft in cylinder head. Refer to ASSEMBLY .

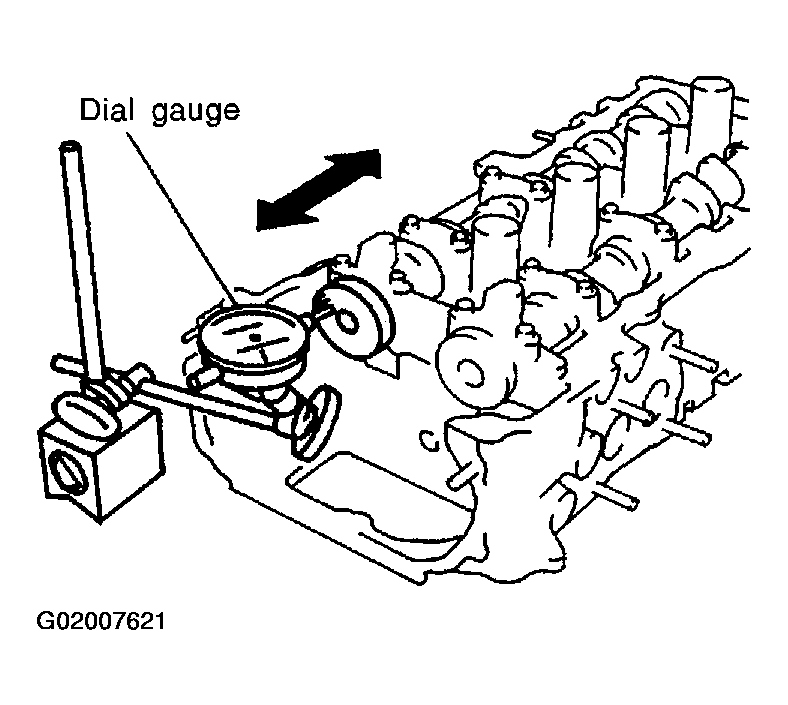

- Measure camshaft end play.
Camshaft end play:
Standard: 0.115 - 0.188 mm (0.0045 - 0.0074 in)
Limit: 0.20 mm (0.0079 in)
- If limit is exceeded, replace camshaft and remeasure end play.
- If limit is still exceeded after replacing camshaft, replace cylinder head.
