Cylinder Head: Assembly

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install valve component parts.
    • Always use new valve oil seal.  Refer to Valve Oil Seal .
    • Before installing valve oil seal, install valve spring seat.
    • After installing valve components, tap valve stem tip with a plastic hammer to assure a proper fit.
    • Install valve spring (narrow pitch at both ends of spring) with either end toward cylinder head.

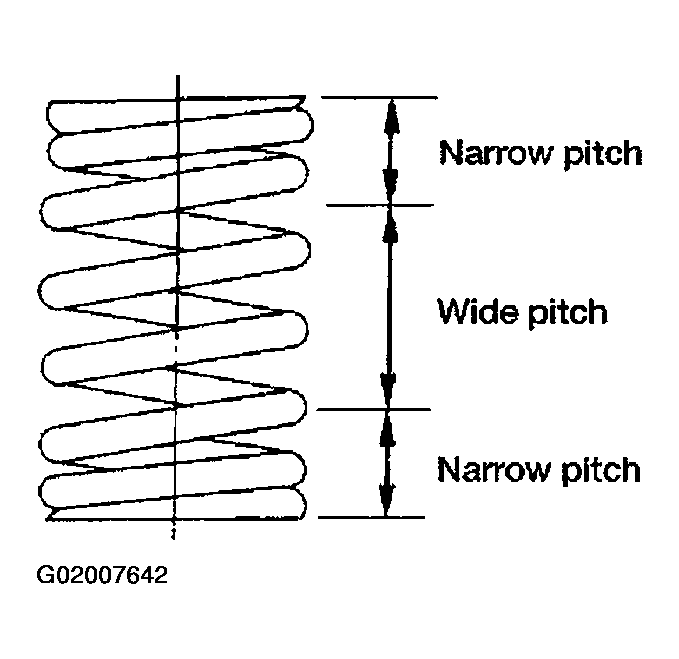

      Fig 1: Identifying Wide Pitch & Narrow Pitch
      G02007642Courtesy of NISSAN MOTOR CO., U.S.A.
