Cylinder Head: Removal

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine from vehicle. Refer to "REMOVAL AND INSTALLATION ".
Remove exhaust manifolds in reverse order of installation. Refer to "EXHAUST MANIFOLD ".
Place engine on a work stand.
Remove aluminum oil pan. Refer to "REMOVAL ".
Remove timing chain. Refer to "REMOVAL ".
Remove intake manifold in reverse order of installation. Refer to "TIGHTENING PROCEDURES ".
Remove water outlet.

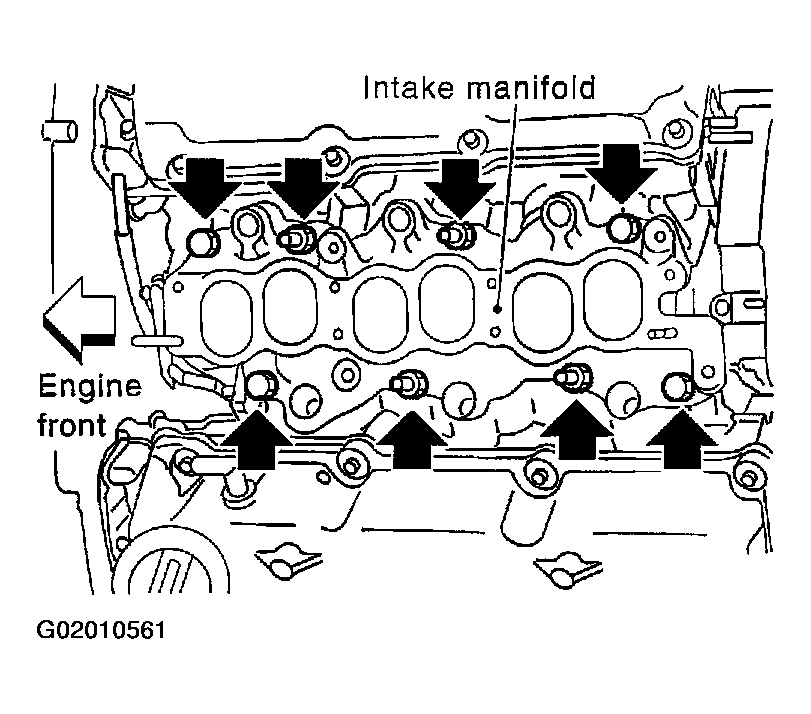

Fig 1: Removing Intake Manifold
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear timing chain case bolts.
- Loosen in numerical order as shown in the figure.

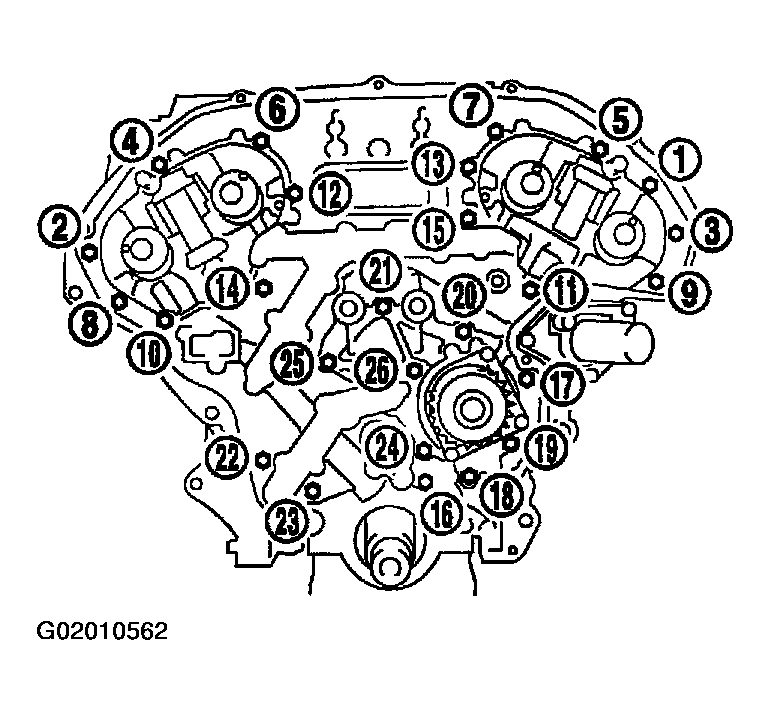

  Fig 2: Removing Rear Timing Chain Case Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear timing chain case.

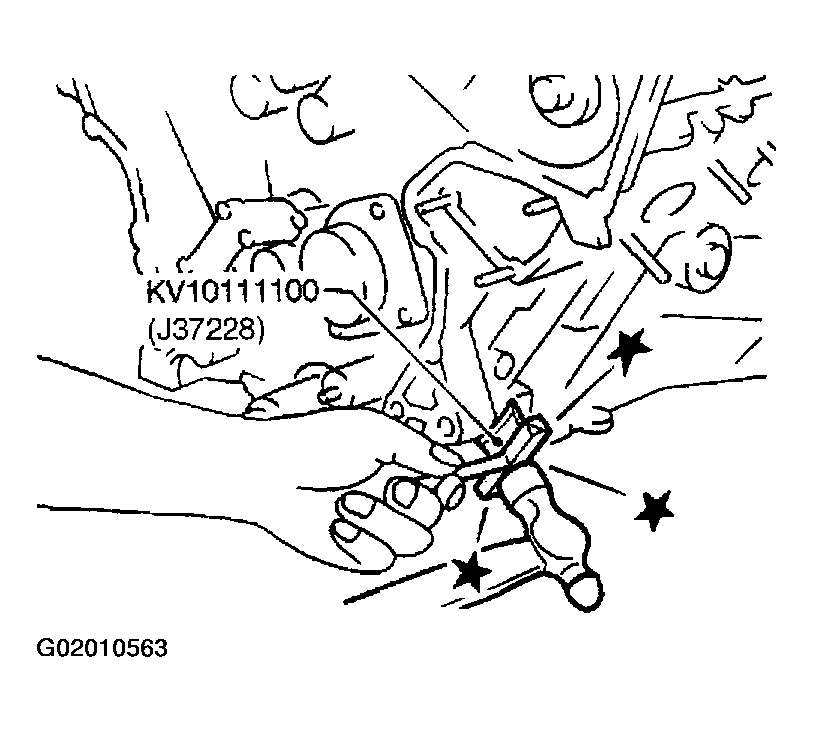

Fig 3: Removing Rear Timing Chain Case
Courtesy of NISSAN MOTOR CO., U.S.A.

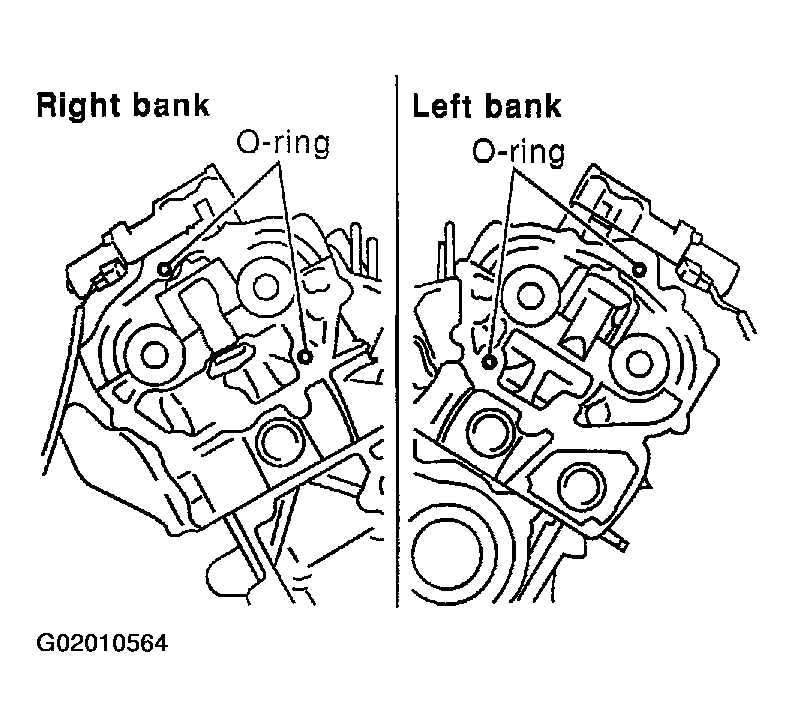

Remove O-rings to cylinder head.

Fig 4: Removing O-Rings To Cylinder Head
Courtesy of NISSAN MOTOR CO., U.S.A.

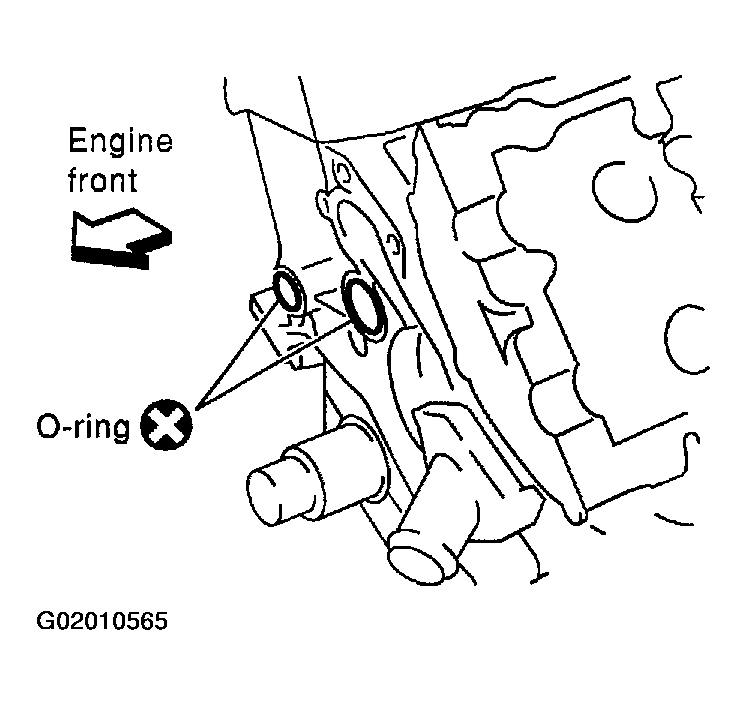

Remove O-rings to cylinder block.

Fig 5: Removing O-Rings To Cylinder Block
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove intake valve timing control solenoid valves.

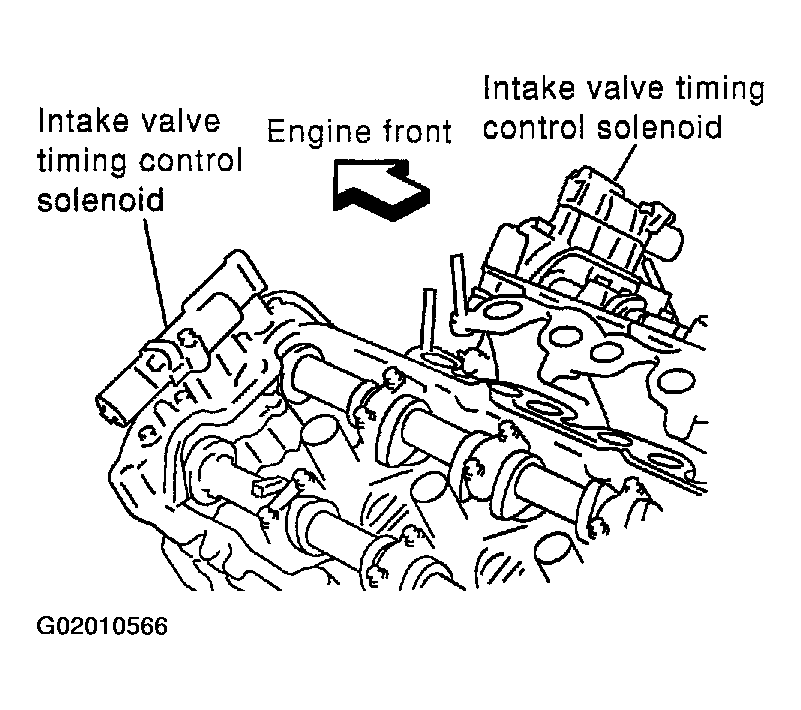

Fig 6: Removing Intake Valve Timing Control Solenoid Valves
Courtesy of NISSAN MOTOR CO., U.S.A.

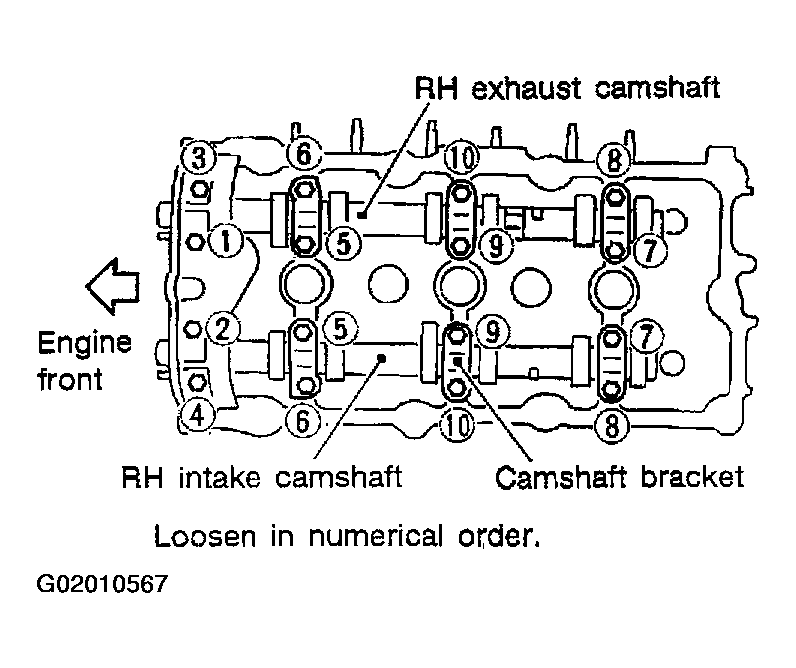

Remove intake and exhaust camshafts and camshaft brackets.
- Equally loosen camshaft bracket bolts in several steps in the numerical order shown in the figure.
  For reinstallation, be sure to put marks on camshaft bracket before removal.

  Fig 7: Removing RH Intake And Exhaust Camshafts And Camshaft Brackets
  Courtesy of NISSAN MOTOR CO., U.S.A.

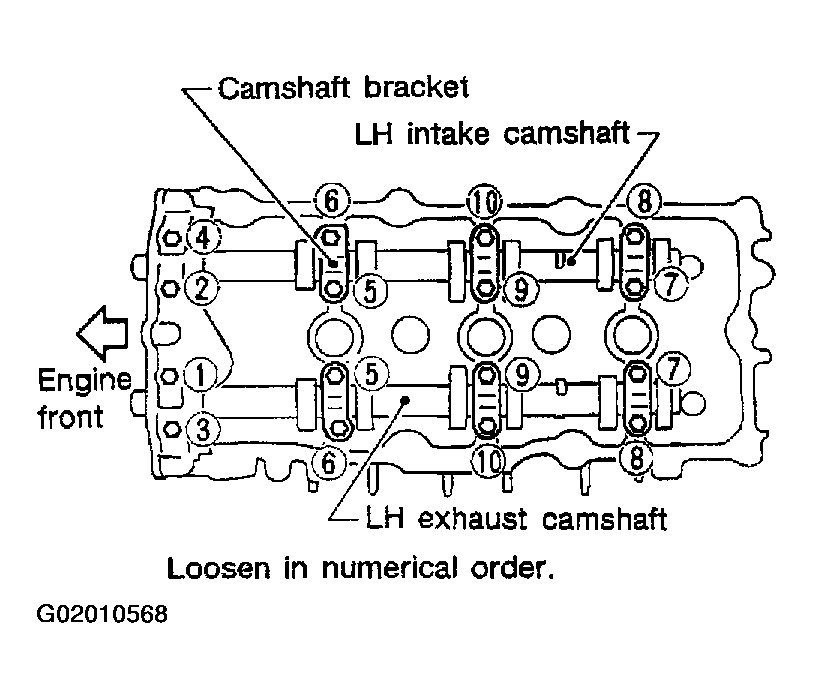

  Fig 8: Removing LH Intake And Exhaust Camshafts And Camshaft Brackets
  Courtesy of NISSAN MOTOR CO., U.S.A.

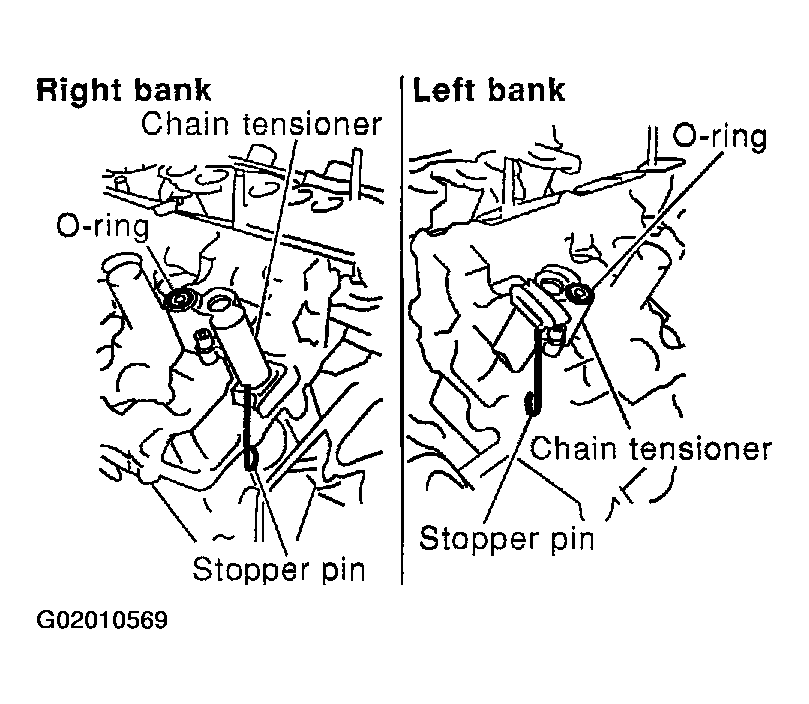

Remove RH and LH camshaft chain tensioners from cylinder head.

Fig 9: Removing Camshaft Chain Tensioner
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove cylinder head bolts.
- Cylinder head bolts should be loosened in two or three steps.
- A warped or cracked cylinder head could result from removing in incorrect order.

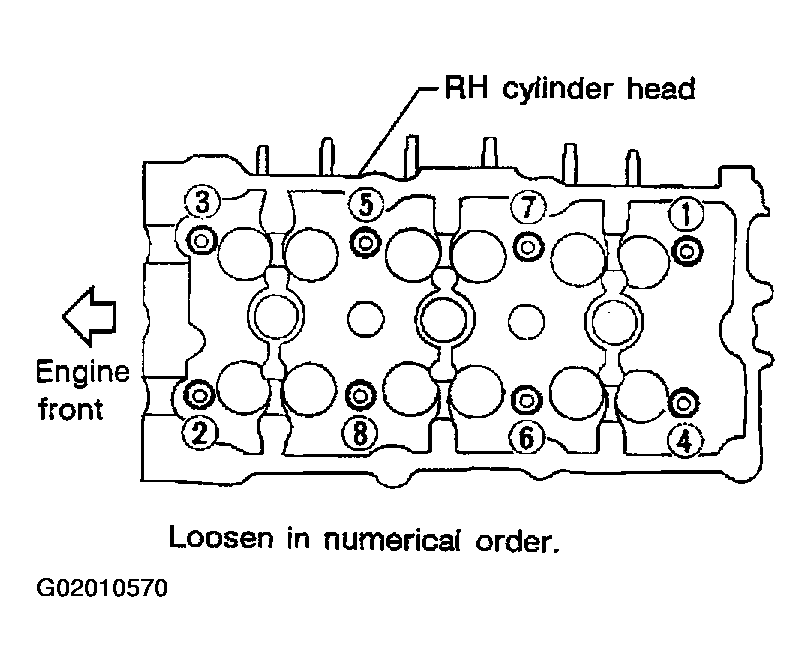

  Fig 10: Removing RH Cylinder Head Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

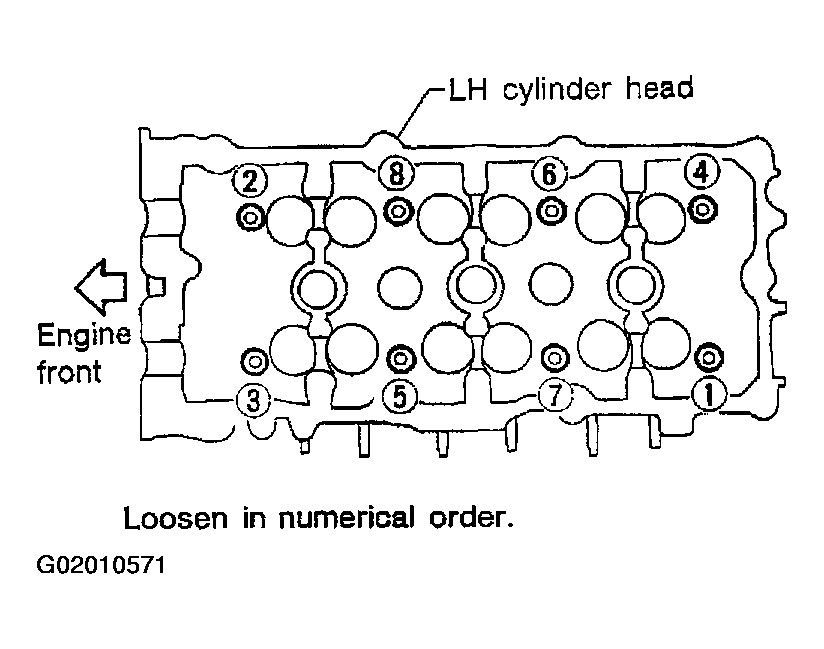

  Fig 11: Removing LH Cylinder Head Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove cylinder head.

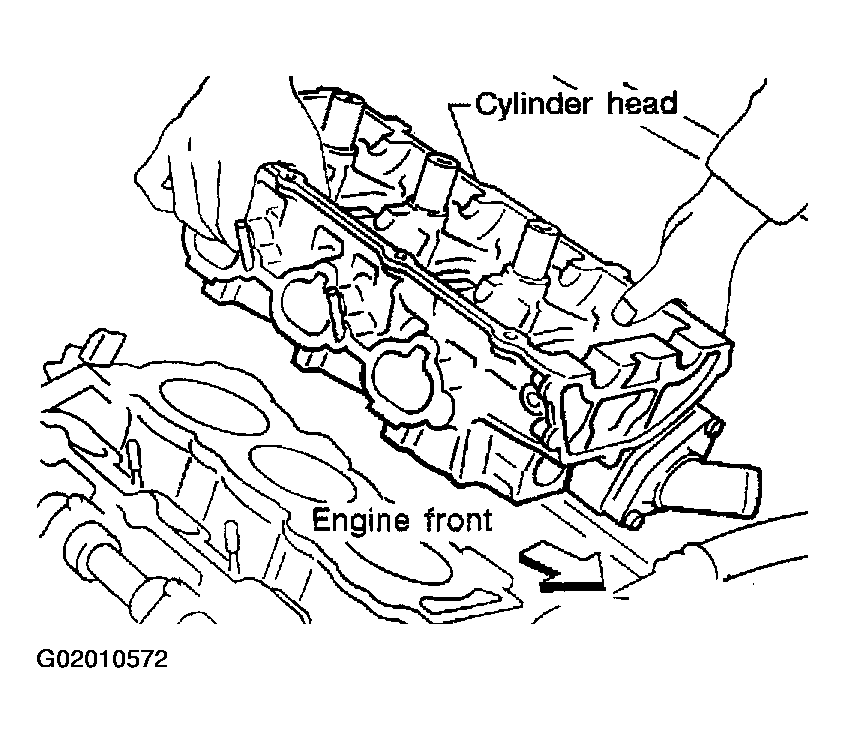

Fig 12: Removing Cylinder Head
Courtesy of NISSAN MOTOR CO., U.S.A.
