Exhaust Manifold

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Tighten nuts to 28 to 32 N.m (2.9 to 3.3 kg-m, 21 to 24 ft-lb) in numerical order shown in the figure.

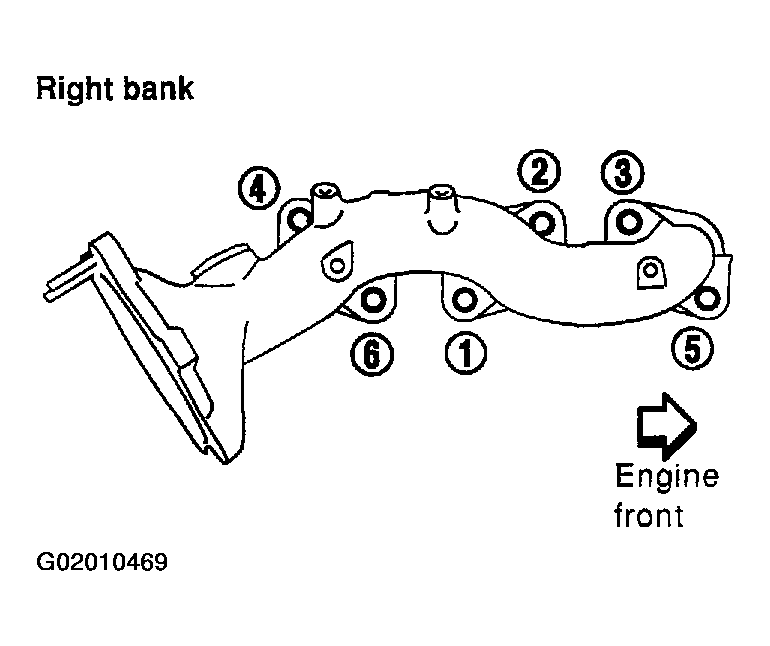

Fig 1: Tightening Torque For Exhaust Manifold Nuts (Right Bank)

Courtesy of NISSAN MOTOR CO., U.S.A.

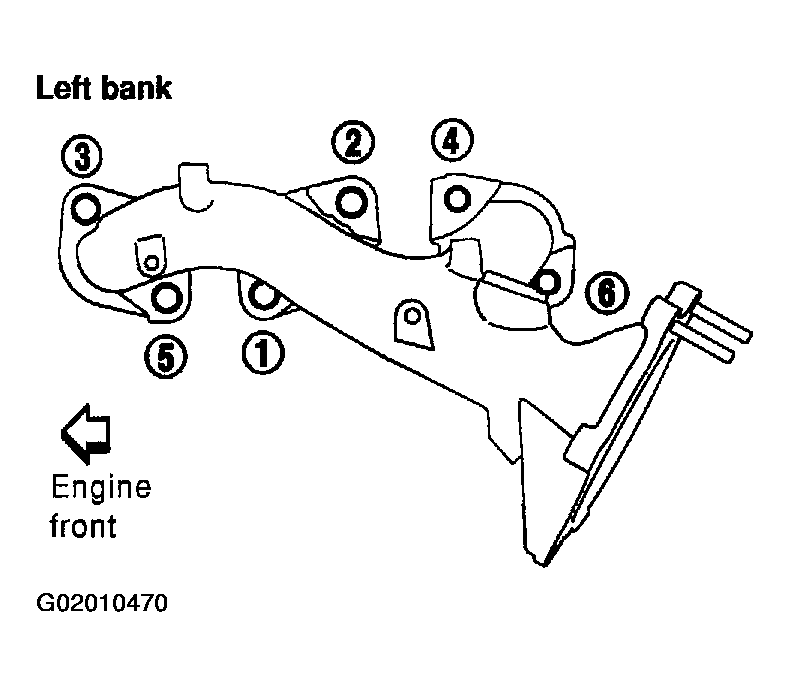

Fig 2: Tightening Torque For Exhaust Manifold Nuts (Left Bank)

Courtesy of NISSAN MOTOR CO., U.S.A.
