Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

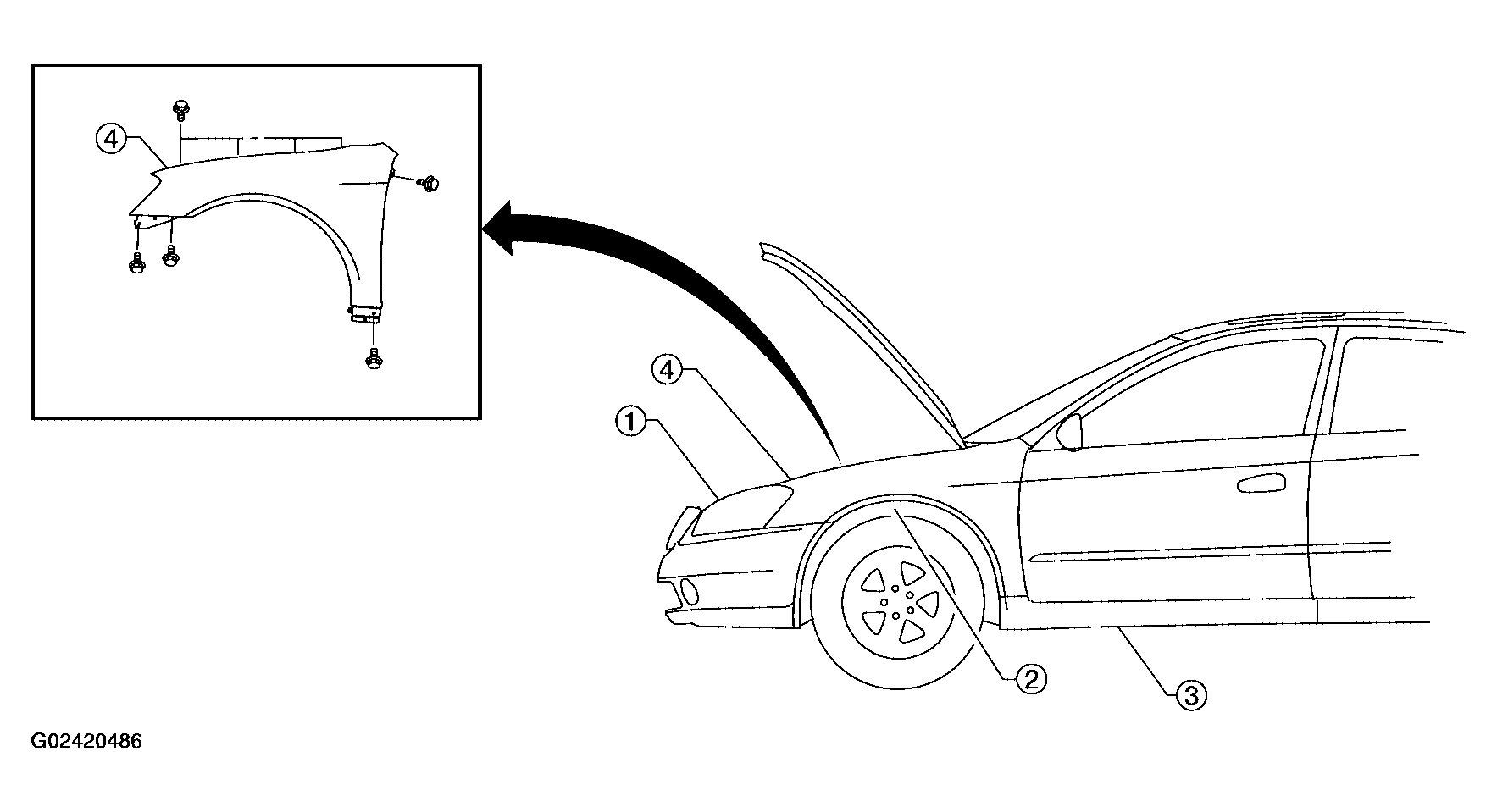

Fig 1: Removing Front Fender
G02420486Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove front combination lamp. Refer to "COMBINATION LAMP REMOVAL AND INSTALLATION ".
  2. Remove fender protector. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove front half of center mud guard. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove front fender.

Installation is in the reverse order of removal.
