Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

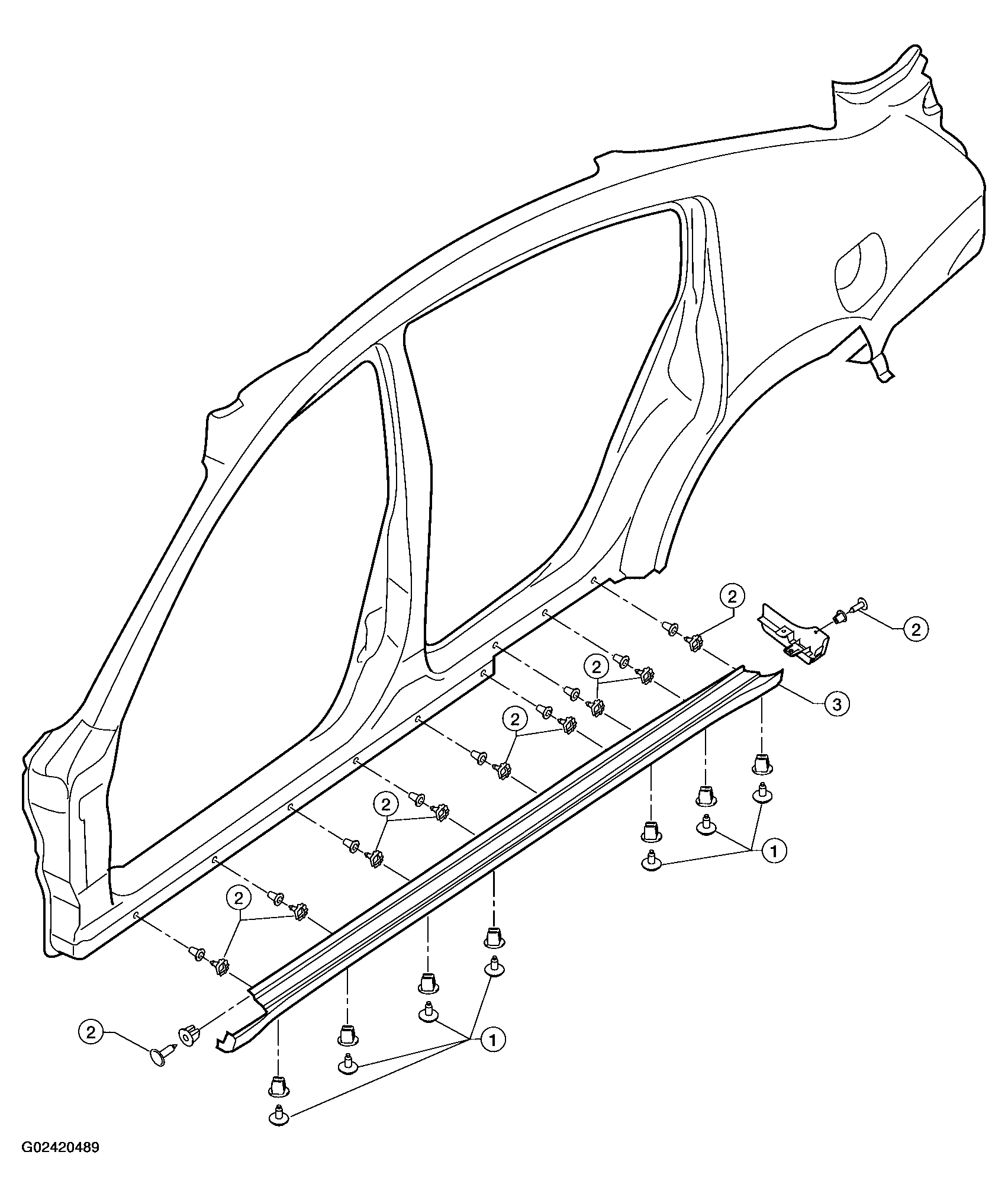

Fig 1: Removing Mudguard
G02420489Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws.
  2. Release clips.
  3. Remove center mudguard.

Installation is in the reverse order of removal.
