Drain Hoses

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

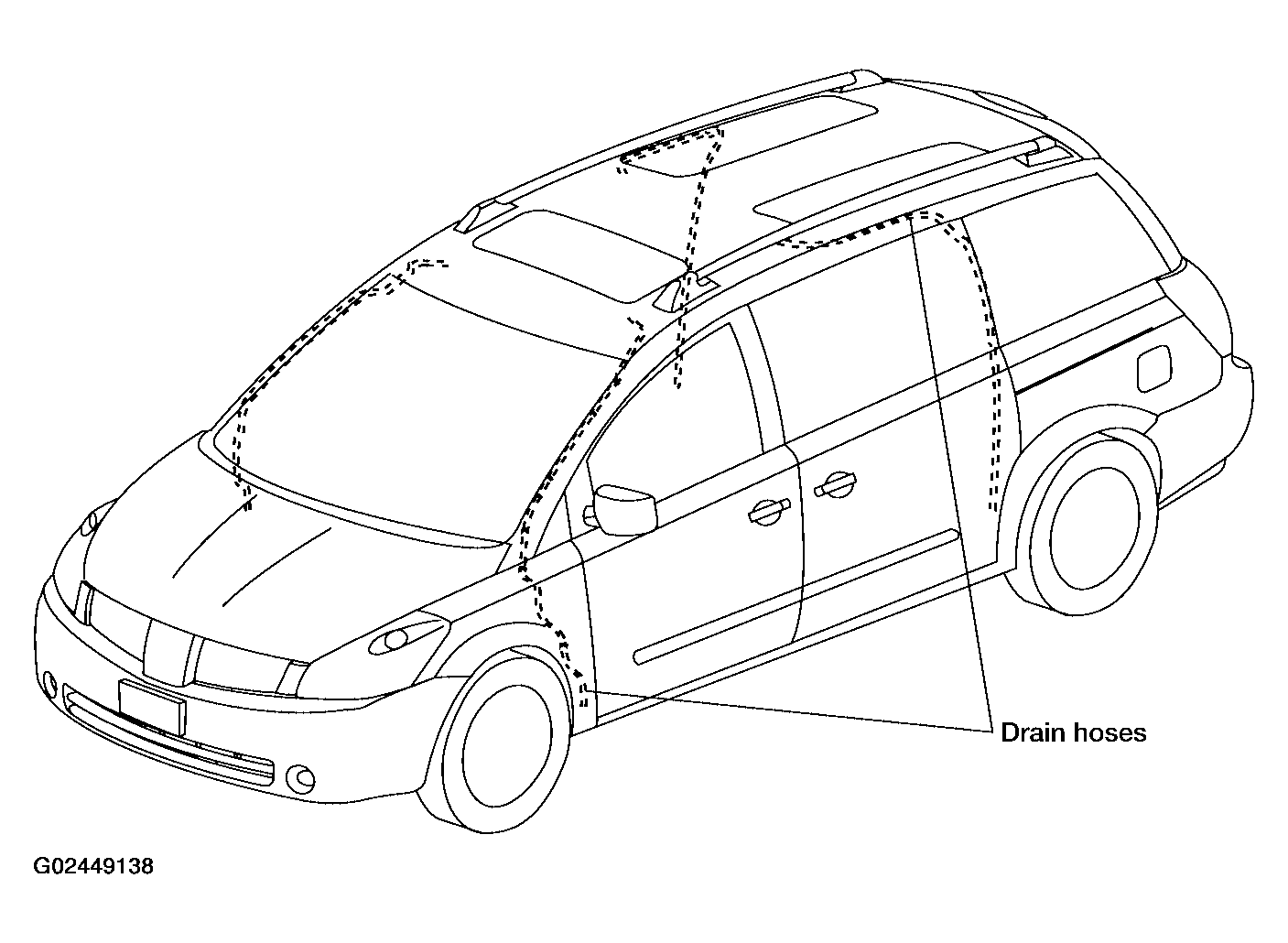

Fig 1: Identifying Drain Hoses

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the headlining. Refer to REMOVAL AND INSTALLATION - HEADLINING .

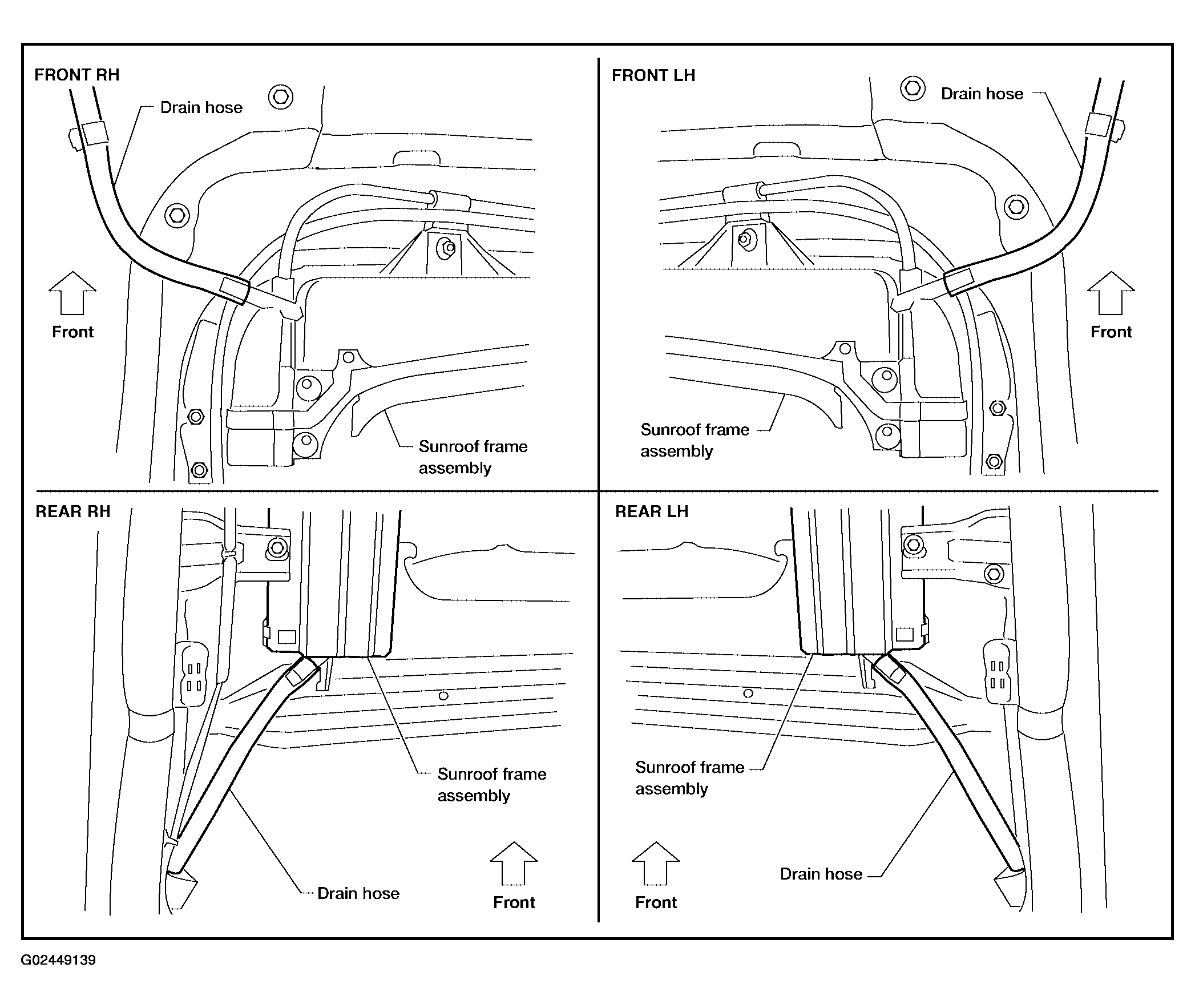

Fig 2: Locating Drain Hoses (Front & Rear)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check visually for proper connections, damage or deterioration.
Remove each drain hose and check visually for damage, cracks or deterioration.
Pour water through the drain hose to check for damage.

If any damage is found, replace the drain hose.
