Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a direct-connect harness connector is damaged, the harness must be replaced.
- Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- When servicing the SRS, do not work from directly in front of air bag module.
- Remove headlining. Refer to "REMOVAL AND INSTALLATION ".
- Disconnect front and rear side curtain air bag module connectors.
- For removal/installation of the direct-connect SRS connectors, refer to "DIRECT-CONNECT SRS COMPONENT CONNECTORS ".
- Remove the bolts in order starting at the front or rear, and remove the side curtain air bag module.CAUTION:
- When servicing the SRS, do not work from directly in front of air bag module.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
- Do not disassemble air bag module.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).

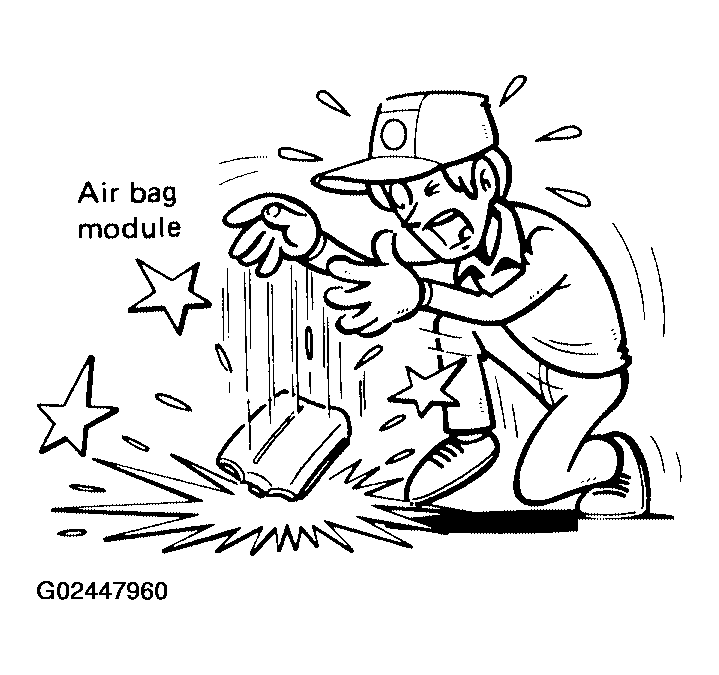

- Replace side curtain air bag module if it has been dropped or sustained an impact.
- Do not allow oil, grease or water to come in contact with the air bag module.
