Removal and Installation of BOSE Speaker Amp.
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Remove glove box assembly. Refer to "INSTRUMENT LOWER PANEL RH AND GLOVE BOX ".

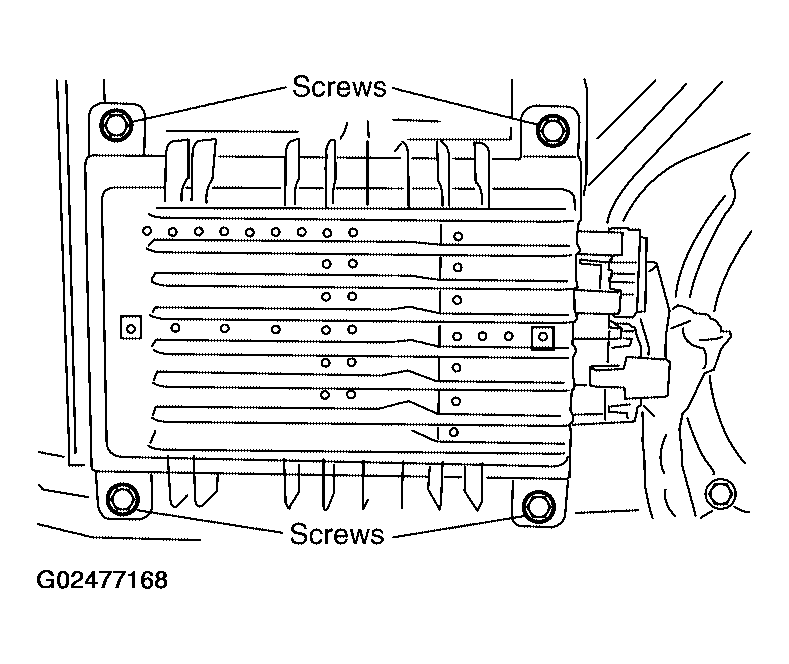

- Remove screws and disconnect connectors to remove BOSE speaker amp.
- Installation is in the reverse order of removal.
BOSE speaker amp. mounting screws: 4.0 N.m (0.4 kg-m, 35 in-lb)
