Instrument Lower Panel RH and Glove Box
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

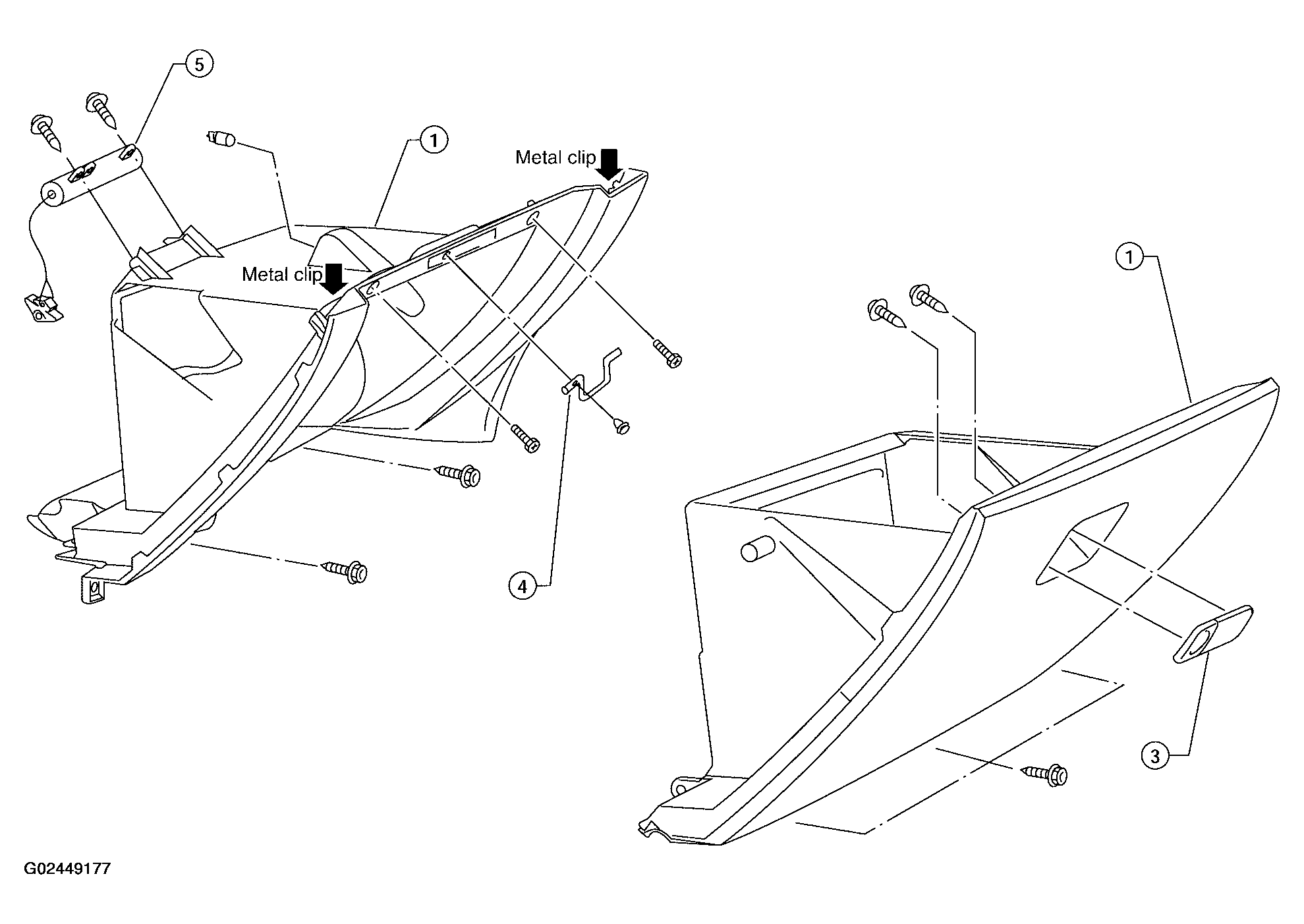

- Remove glove box housing with instrument lower panel RH.
- Protect the center console to prevent damaging the surface.
- Remove 2 upper screws.
- Carefully pry the metal clips loose.
- Disconnect glove box lamp harness. Do not let the glove box assembly hang from the glove box lamp harness.
- Remove 3 lower screws.
- Remove damper clip from glove box door.
- Separate glove box housing and instrument lower panel RH.
- Remove screws and remove glove box latch assembly.
- Remove metal clip and remove glove box striker.
- Remove screws and remove damper from back of glove box housing.
