Diagnostic Procedure

Do you have CONSULT-II?

Yes or No

• Yes: GO TO 2.
• No: GO TO 3.

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

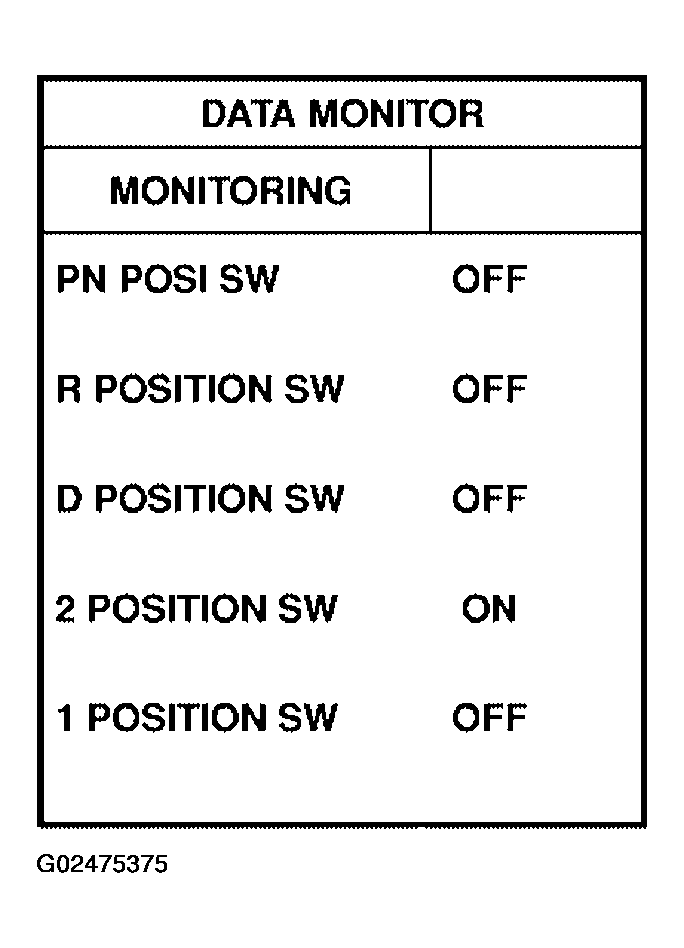

   Fig 1: CONSULT-II Display - DATA MONITOR Mode For A/T

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Read out P/N, R, D, 2nd position switches moving selector lever to each position.

   Check that the signal of the selector lever position is indicated properly.

   NOTE: "2 POSITION SW" indicates L position status.

OK or NG

• OK: GO TO 8.
• NG: GO TO 4.

Without CONSULT-II

1. Turn ignition switch to ON position. (Do not start engine.)
2. Check voltage between TCM harness connector E143 terminals 27 (P/B), 34 (G), 35 (G/W), 36 (R/G) and ground while moving selector lever through each position.

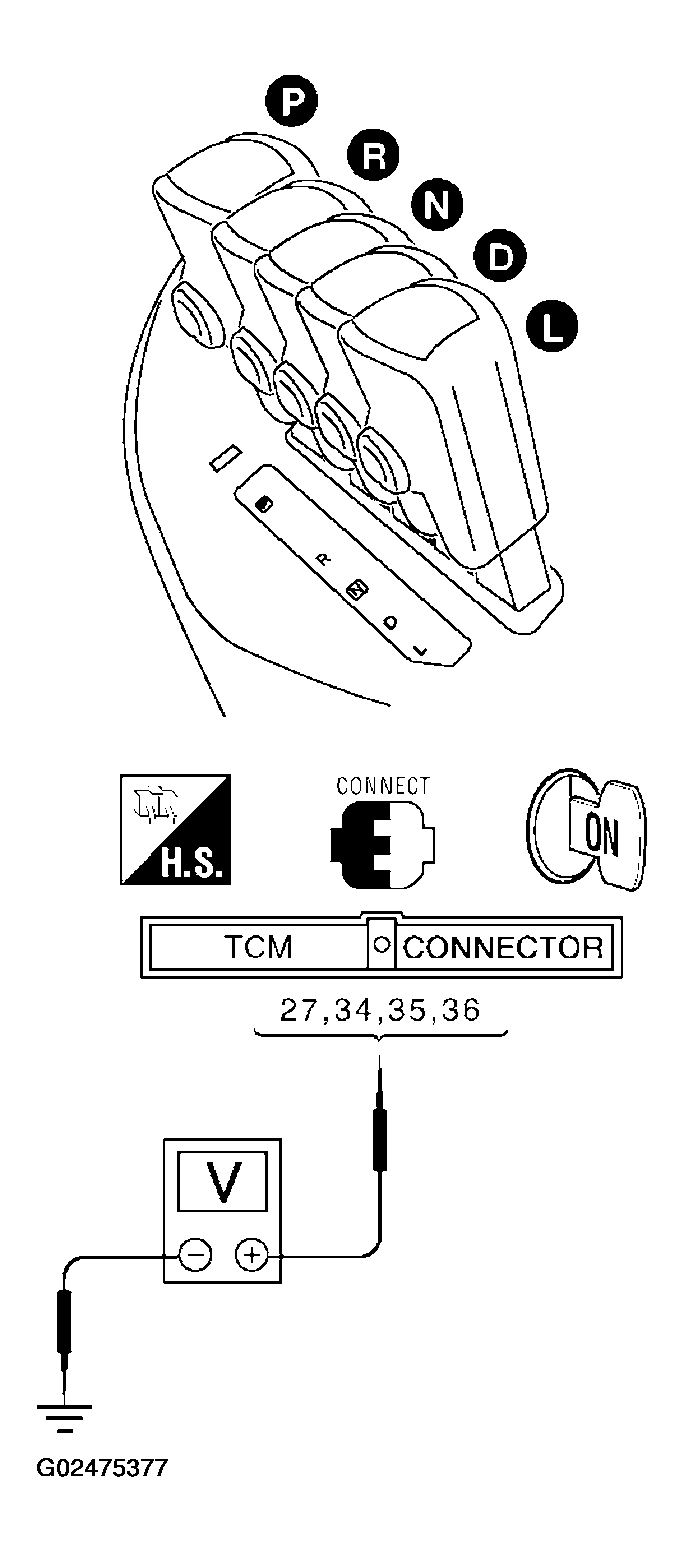

   Fig 2: Checking Voltage Between TCM Harness Connector E143 Terminals 27, 34, 35, 36 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

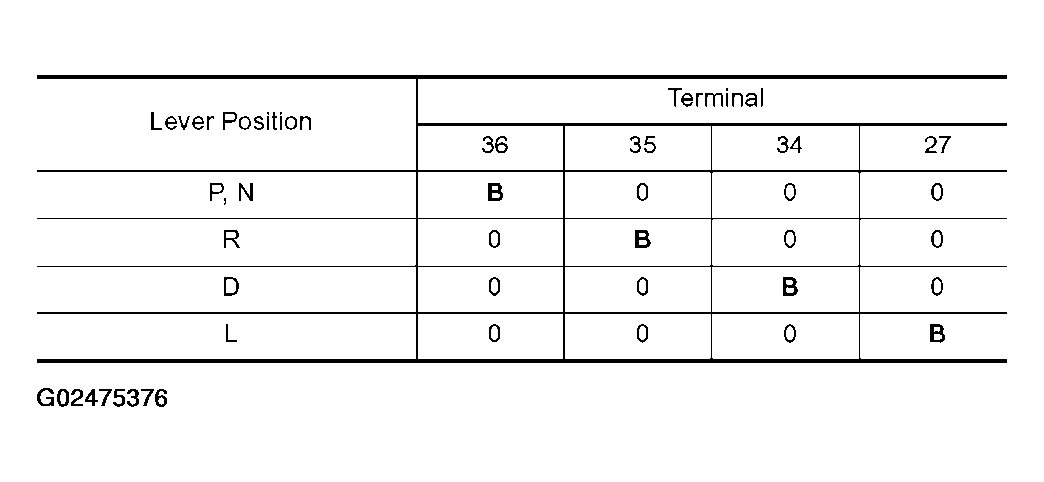

   Fig 3: Connector Terminal Specification Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

   B: Battery voltage

   0: 0V

OK or NG

• OK: GO TO 9.
• NG: GO TO 4.

Check the following item:

• Park/neutral position (PNP) switch

  Check continuity between PNP switch harness connector F29 terminals 1 and 2 and between terminals 3 and 5, 6, 7, 8 and 9 while moving manual shaft through each position.

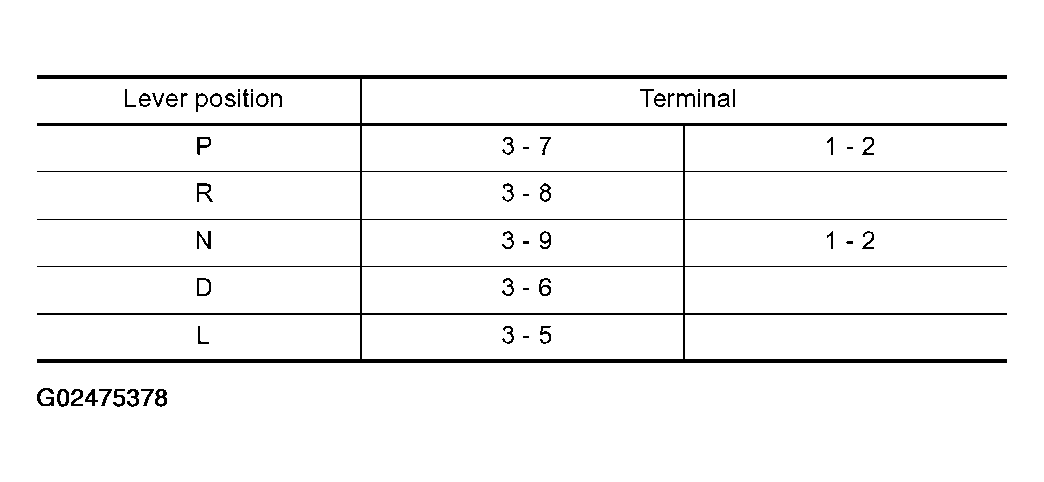

  Fig 4: Connector Terminal Specification Chart

  Courtesy of NISSAN MOTOR CO., U.S.A.

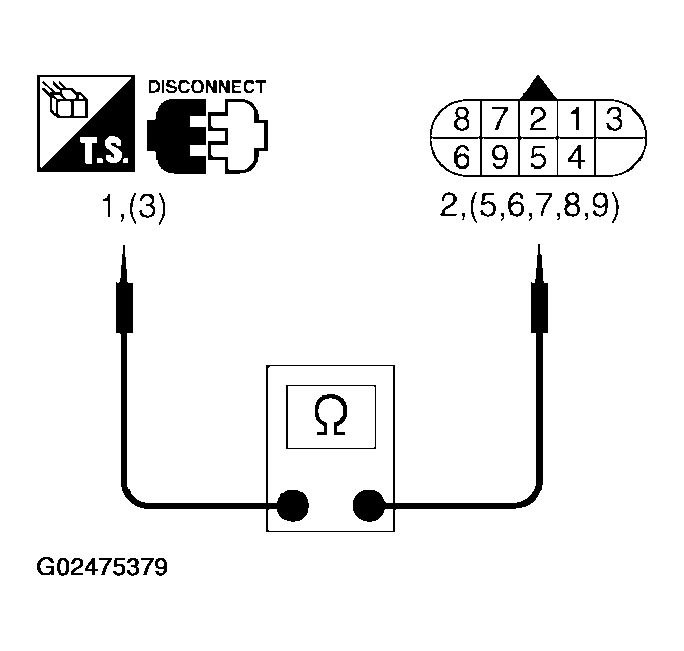

  Fig 5: Checking Continuity Between PNP Switch Harness Connector F29 Terminals 1 & 2; Between Terminals 5, 6, 7, 8, 9 & 3

  Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 7.
• NG: GO TO 5.

Check PNP switch again with manual control cable disconnected from manual shaft of A/T assembly. Refer to Step 2 (With CONSULT-II) or Step 7 (With out CONSULT-II).

OK or NG

• OK: Adjust manual control cable. Refer to "CONTROL CABLE ADJUSTMENT ".
• NG: GO TO 6.

Remove PNP switch from A/T assembly and check continuity of PNP switch terminals. Refer to Step 3.

OK or NG

• OK: Adjust PNP switch. Refer to "PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT ".
• NG: Repair or replace PNP switch.

Check the following items:

• Fuse
• Harness for short or open between ignition switch and park/neutral position (PNP) switch
• Harness for short or open between park/neutral position (PNP) switch and TCM
• Harness for short or open between park/neutral position (PNP) switch and combination meter
• Harness for short or open between combination meter and TCM
• Ignition switch

  Refer to "POWER SUPPLY ROUTING CIRCUIT ".

OK or NG

• OK (With CONSULT-II): GO TO 8.
• OK (Without CONSULT-II): GO TO 9.
• NG: Repair or replace damaged parts.

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

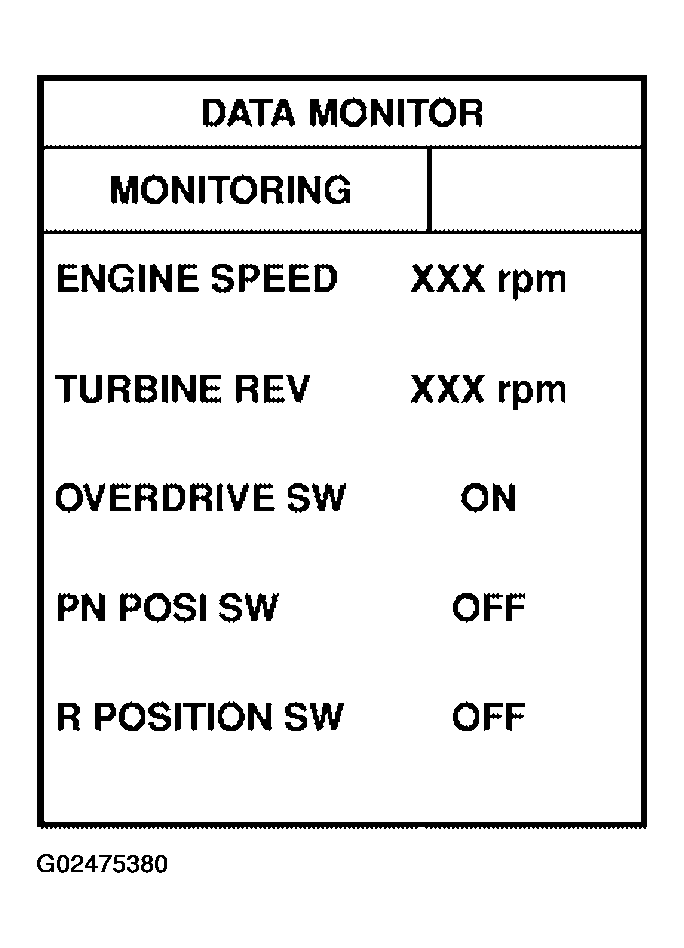

   Fig 6: CONSULT-II Display - DATA MONITOR Mode For A/T

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Read out "OVERDRIVE SW".

   Check the signal of the overdrive control switch is indicated properly.

   (Overdrive switch "ON" displayed on CONSULT-II means overdrive "OFF".)

OK or NG

• OK: GO TO  10.
• NG: GO TO 9.

Check the following item:

• Overdrive control switch

• Check continuity between A/T device (overdrive control switch) harness connector M34 terminals 1 and 2.

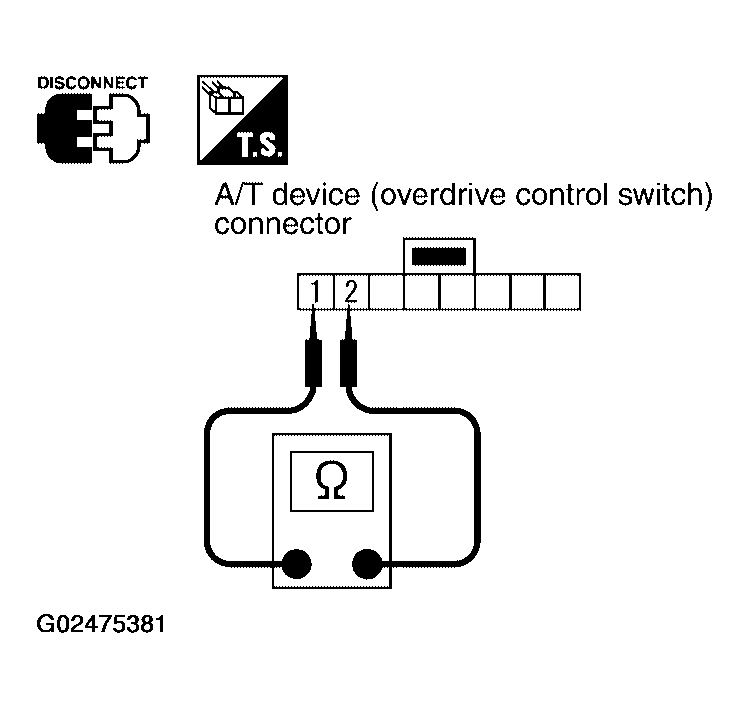

Fig 7: Checking Continuity Between A/T Device (Overdrive Control Switch) Harness Connector M34 Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 10.
• NG: Repair or replace damaged parts.

Check the following items:

• Harness for short or open between combination meter and A/T device (overdrive control switch)
• Harness of ground circuit for A/T device (overdrive control switch) for short or open
• Combination meter

  Refer to "COMBINATION METERS ".

OK or NG

• OK (With CONSULT-II): GO TO 11.
• OK (Without CONSULT-II): GO TO 12.
• NG: Repair or replace damaged parts.

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "DATA MONITOR" mode for A/T with CONSULT-II.
3. Read out "CLOSED THL/SW" and "W/O THRL-SW" depressing and releasing accelerator pedal.

   Check the signal of throttle position signal is indicated properly.

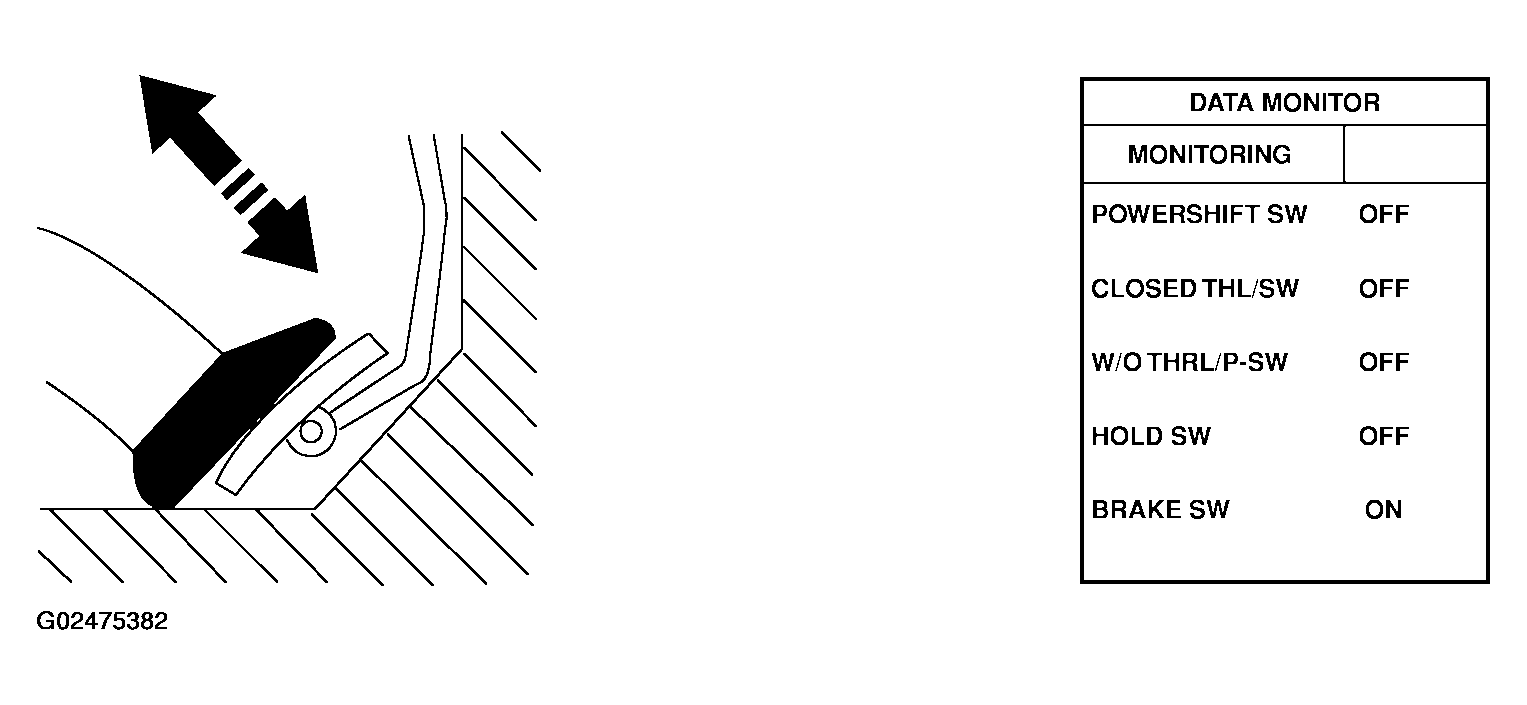

   Fig 8: Depressing & Releasing Accelerator Pedal

   Courtesy of NISSAN MOTOR CO., U.S.A.

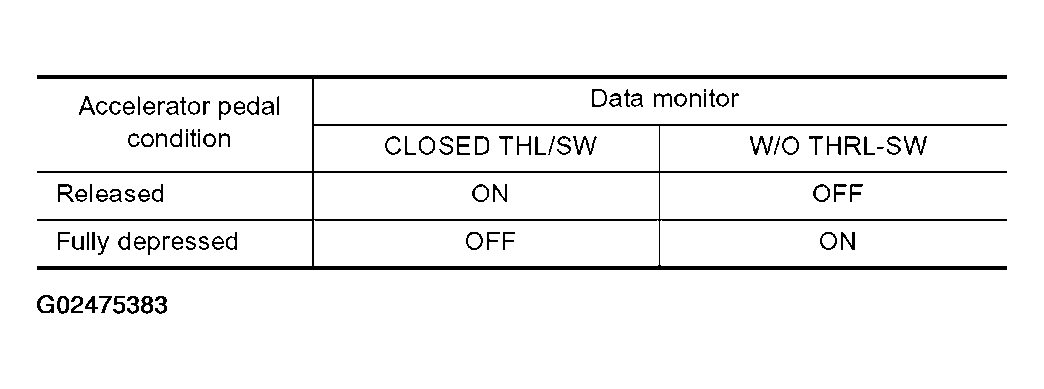

   Fig 9: Accelerator Pedal Condition Reference Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO  13.
• NG: Check the following items. If any items are damaged, repair or replace damaged parts.
  • Accelerator pedal position (APP) sensor - Refer to "DTC P1705 THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR] ".
  • Harness for short or open between accelerator pedal position sensor and ECM

Without CONSULT-II

Check the following items:

• Accelerator pedal position sensor - Refer to "DTC P1705 THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR] ".
• Harness for short or open between accelerator pedal position sensor and ECM

OK or NG

• OK: GO TO 13.
• NG: Repair or replace damaged parts.

Check again.

OK or NG

• OK: INSPECTION END
• NG: GO TO 14.

1. Perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

• OK: INSPECTION END
• NG: Repair or replace damaged parts.
