Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control cable from manual shaft.

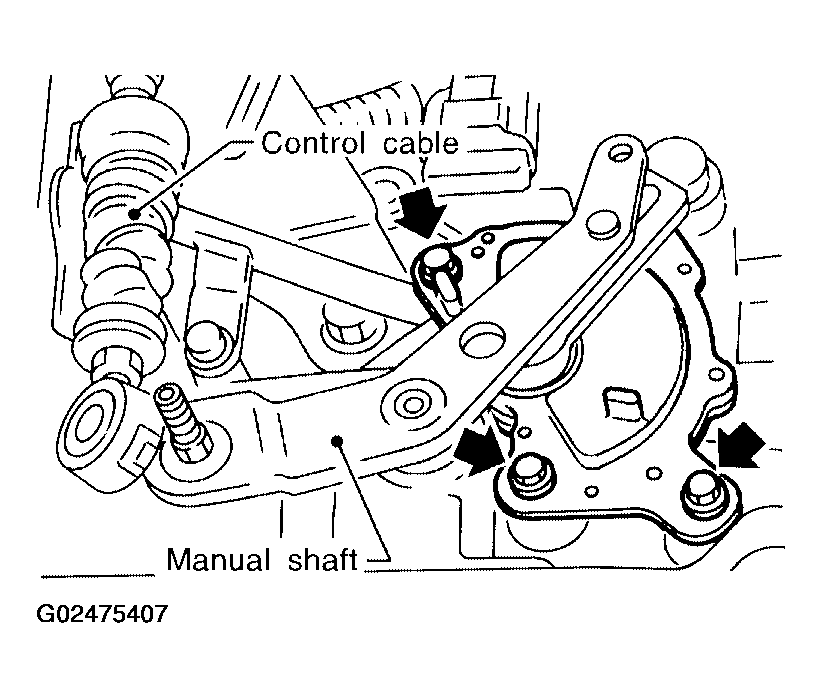

    Fig 1: Removing Control Cable From Manual Shaft
    G02475407Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Set manual shaft in N position.
  3. Loosen park/neutral position (PNP) switch fixing bolts.
  4. Insert pin into adjustment holes in both park/neutral position (PNP) switch and manual shaft as near vertical as possible.

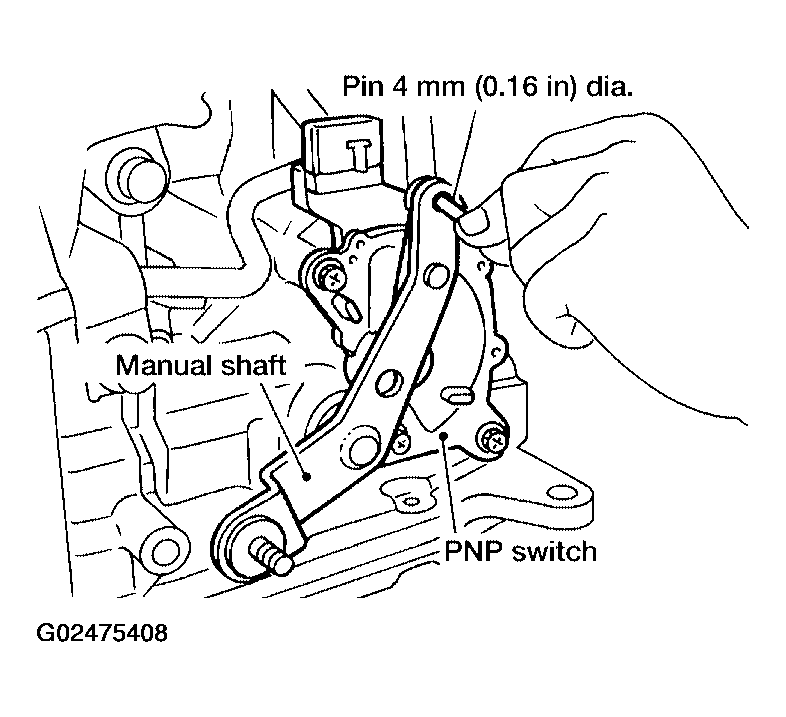

    Fig 2: Inserting Pin Into Adjustment Holes In Both Park/Neutral Position (PNP) Switch
    G02475408Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Installation is in the reverse order of removal.
  6. Check continuity of park/neutral position (PNP) switch. Refer to "DIAGNOSTIC PROCEDURE ".
