Without Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in D and vehicle speed higher than 25 km/h (16 MPH).

  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

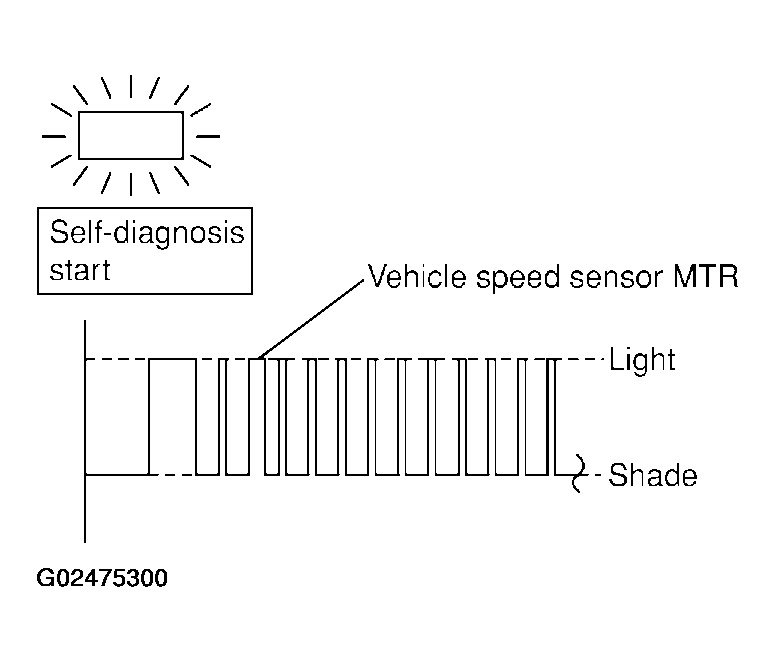

    Fig 1: Vehicle Speed Sensor Blinking Pattern
    G02475300Courtesy of NISSAN MOTOR CO., U.S.A.
