Removal and Installation of Wiper Motor and Linkage: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the wiper motor, and stop it at the auto stop position.
  2. Remove wiper arms from the vehicle. Refer to REMOVAL AND INSTALLATION OF FRONT WIPER ARMS, ADJUSTMENT OF WIPER ARMS STOP LOCATION .
  3. Remove the cowl top extension. Refer to REMOVAL AND INSTALLATION .
  4. Disconnect wiper motor connector.
  5. Remove wiper frame assembly mounting bolts, and remove wiper frame assembly.

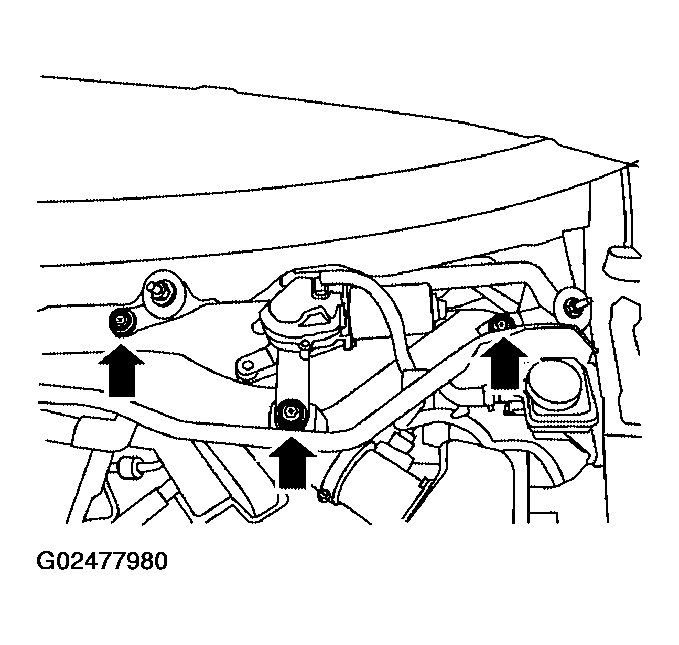

    Fig 1: Removing Front Wiper Frame Assembly Mounting Bolts
    G02477980Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove wiper motor from wiper frame assembly.
