Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

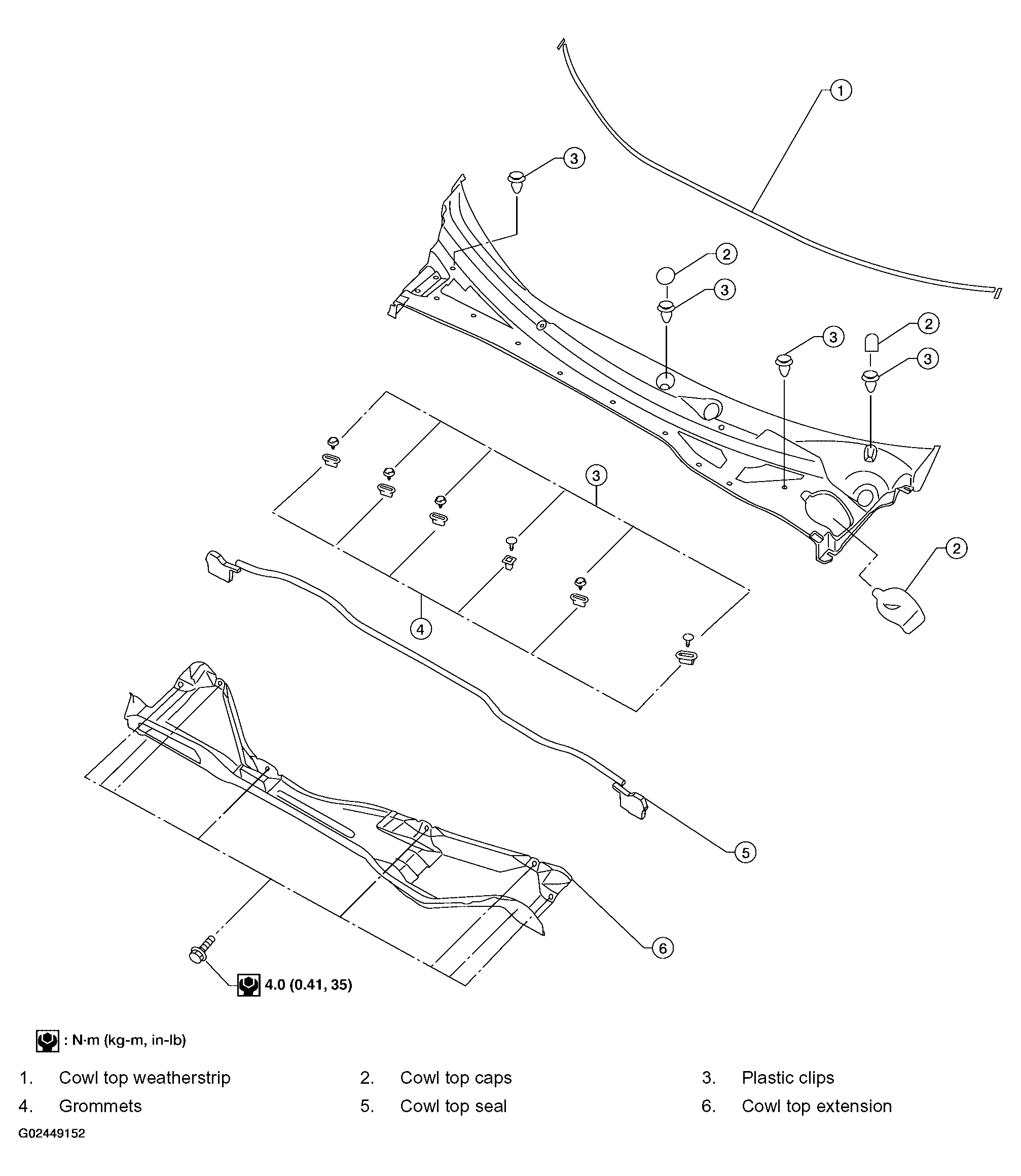

Fig 1: Removing/Installing Cowl Top Components - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove right and left wiper arms. Refer to "REMOVAL AND INSTALLATION OF FRONT WIPER ARMS, ADJUSTMENT OF WIPER ARMS STOP LOCATION ".
Remove cowl top cover.
- Release clips under cowl top cover and clips on hoodledge.
- Remove seal by releasing ends from tabs on cowl top cover and releasing plastic clips.
- Remove weatherstrip.
Remove cowl top seal.
Remove windshield washer nozzles and hoses from cowl top cover. Refer to "WASHER TUBE LAYOUT "
Remove heater pump from cowl top extension. Refer to "HEATER PUMP ".
Disconnect clip attaching coolant control valve hose to cowl top extension.
Remove cowl top extension.
Installation is in the reverse order of removal.
