Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool. Refer to "ROTATION ".
  2. Remove cowl top and cowl top extension. Refer to "REMOVAL AND INSTALLATION - COWL TOP AND COWL TOP EXTENSION ".
  3. Disconnect the ABS sensor wire and front brake hose from the brackets on the front shock absorber (strut).
  4. Disconnect the connecting rod upper link using power tool.
  5. Support the wheel hub and steering knuckle assembly with a suitable wire.
  6. Remove the shock absorber lower bolts and nuts using power tool.
  7. Remove the three upper strut mounting nuts using power tool.
    CAUTION: Do not remove piston rod lock nut on vehicle.
  8. Remove the coil spring and shock absorber (strut) assembly.

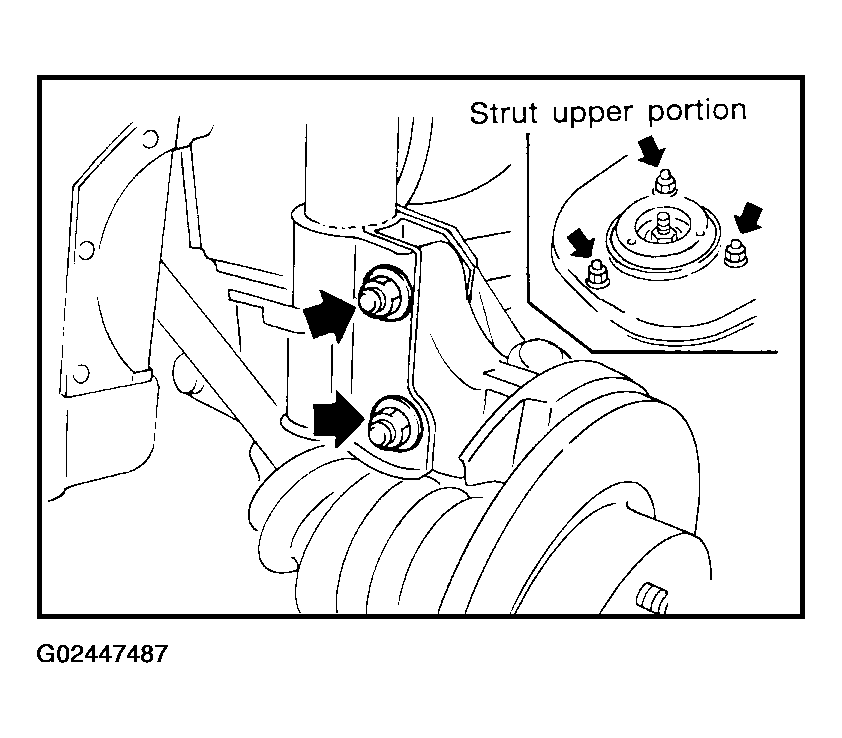

    Fig 1: Removing Upper & Lower Strut Mounting Nuts
    G02447487Courtesy of NISSAN MOTOR CO., U.S.A.
