Valve Adjusting

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Adjust valve clearance while engine is cold.
NOTE:
  • Perform adjustment by selecting the correct head thickness of the valve lifter (adjusting shims are not used).
  • The specified valve lifter thickness is the dimension at normal temperatures. Ignore dimensional differences caused by temperature. Use specifications for hot engine condition to confirm valve clearances.
  1. Remove the camshaft. Refer to REMOVAL .
  2. Remove the valve lifter that was measured as being outside the standard specifications.
  3. Measure the center thickness of the removed lifter with a micrometer as shown.

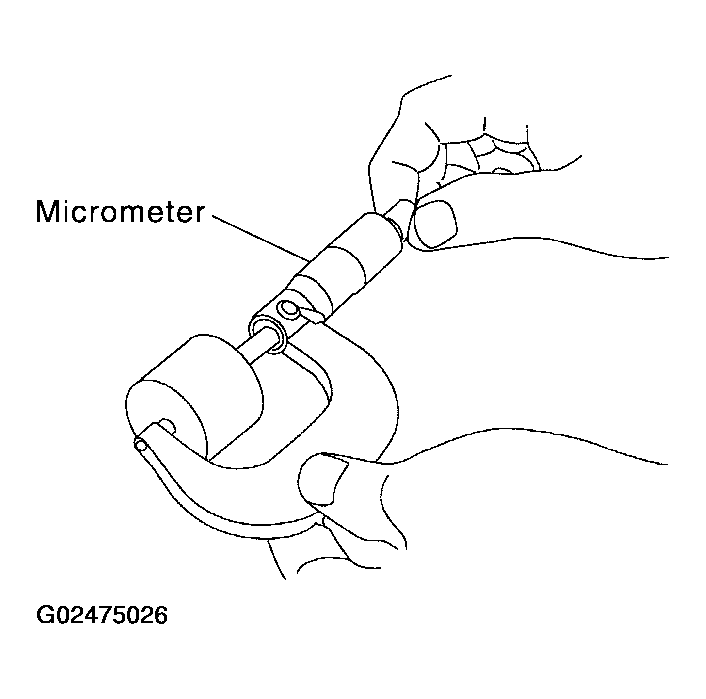

    Fig 1: Measuring Center Thickness Of Lifter
    G02475026Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Use the equation below to calculate the replacement valve lifter thickness.

    Valve lifter thickness calculation equation: t = t1 + (C1 - C2)

    t = thickness of the replacement lifter

    t1 = thickness of the removed lifter

    C1 = measured valve clearance

    C2 = standard valve clearance

    • The thickness of the new valve lifter can be identified by the stamp mark on the reverse side (inside the lifter).
    • Available thickness of the valve lifter (factory setting):

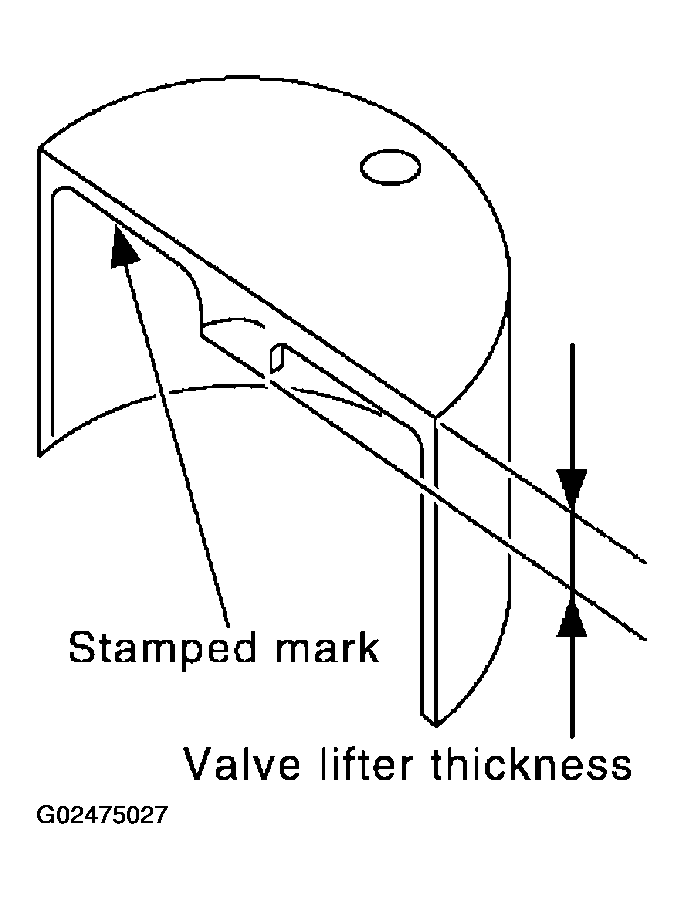

      Fig 2: Measuring Thickness Of New Valve Lifter
      G02475027Courtesy of NISSAN MOTOR CO., U.S.A.

      7.88 - 8.40 mm (0.3102 - 0.3307 in), in 0.02 mm (0.0008 in) increments, in 27 sizes (intake/exhaust). Refer to "VALVE LIFTER ".

      NOTE: Two types of stamp marks are used for parallel setting and for manufacturer identification.
      • Value lifter thickness
      • Intake: 0.30 mm (0.012 in)
      • Exhaust: 0.33 mm (0.013 in)
  5. Install the selected replacement valve lifter.
  6. Install the camshaft. Refer to INSTALLATION .
  7. Rotate the crankshaft a few turns by hand.
  8. Confirm that the valve clearances are within specification.
  9. After the engine has been run to full operating temperature, confirm that the valve clearances are within specification.
    OPERATING TEMPERATURE REFERENCE CHART

    Valve Clearance Cold Hot(1) (reference data)
    Intake 0.26 - 0.34 mm (0.010 - 0.013 in) 0.304 - 0.416 mm (0.012 - 0.016 in)
    Exhaust 0.29 - 0.37 mm (0.011 - 0.015 in) 0.308 - 0.432 mm (0.012 - 0.017 in)
    (1) Approximately 80°C (176°F)
