Inner Diameter of Camshaft Bracket
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Tighten camshaft bracket bolts to specified torque. Refer to INSTALLATION .

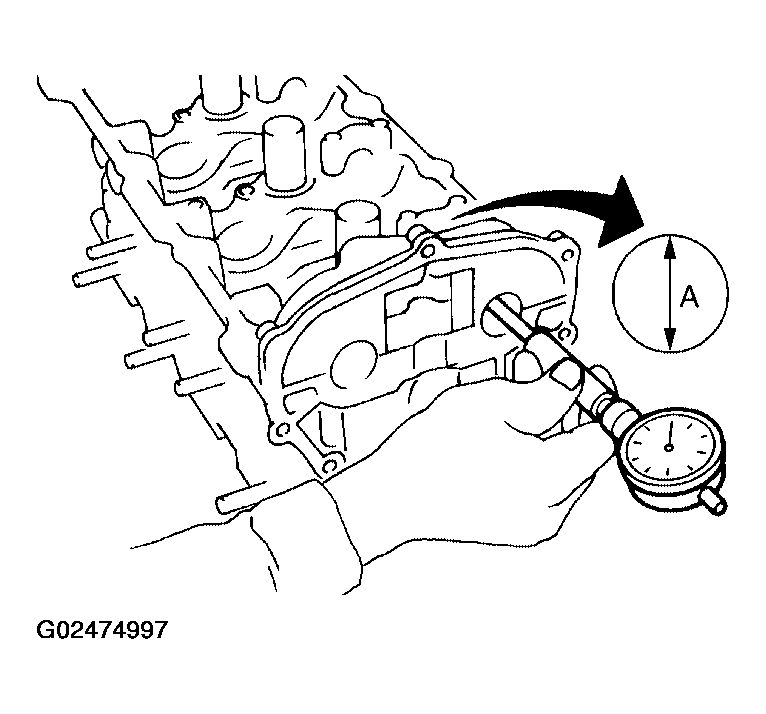

- Using inside micrometer, measure inner diameter "A" of camshaft bearing.
- Standard inner diameter No. 1: 26.000 - 26.021 mm (1.0236 - 1.0244 in)
- Standard inner diameter No. 2, 3, 4: 23.500 - 23.521 mm (0.9252 - 0.9260 in)
