Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument passenger lower panel and glove box. Refer to "INSTRUMENT LOWER PANEL RH AND GLOVE BOX ".
  2. Remove the center console trim panel. Refer to "REMOVAL AND INSTALLATION - CENTER CONSOLE TRIM PANEL ".
  3. Disconnect the mode door motor electrical connector.

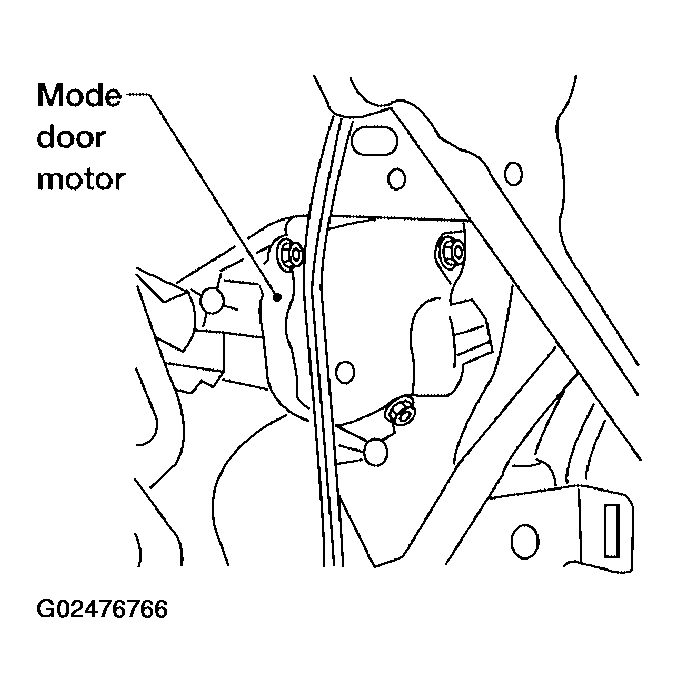

    Fig 1: Disconnecting Mode Door Motor Electrical Connector
    G02476766Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the three screws and remove the mode door motor.
