Magnet Clutch Circuit
SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan control switch are ON .
- CHECK POWER SUPPLY FOR COMPRESSOR
Disconnect compressor harness connector.

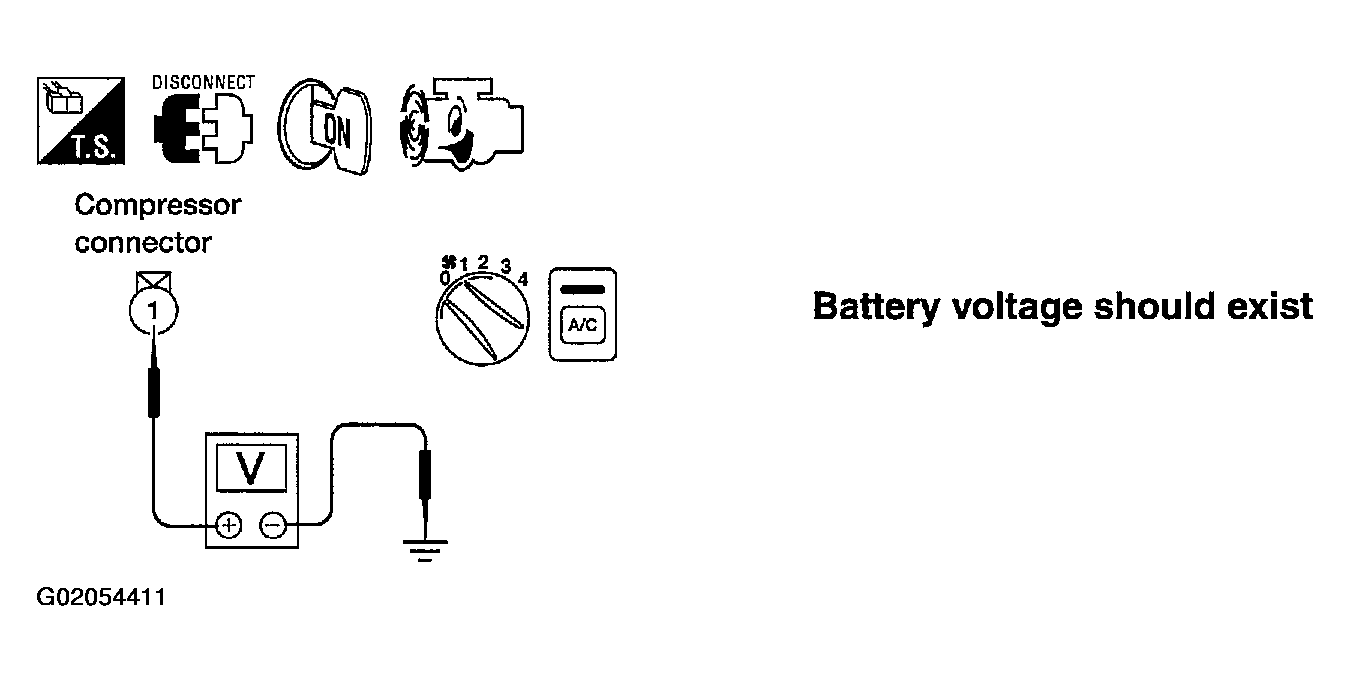

Do approx. 12 volts exist between compressor harness connector E36-2 terminal No. 1, (B) and body ground?
Yes or No
- Yes: GO TO 2.
- No: GO TO 3.
- CHECK MAGNET CLUTCH COIL
Disconnect magnet clutch connector.

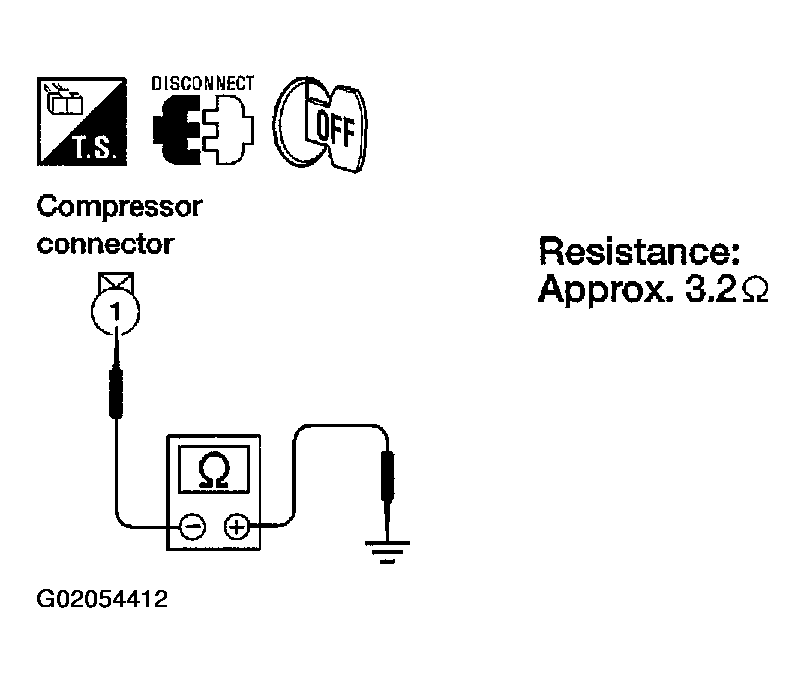

Do approx. 3.2Ω exist between A/C compressor harness connector E36-2 terminal No. 1, (B) and body ground?
Yes or No
- Yes: INSPECTION END .
- No: Replace magnet clutch. Refer to , "OVERHAUL ".
- CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND COMPRESSOR HARNESS
Disconnect A/C relay.
Check circuit continuity between A/C relay harness terminal No. 3 and compressor harness terminal No. 1.

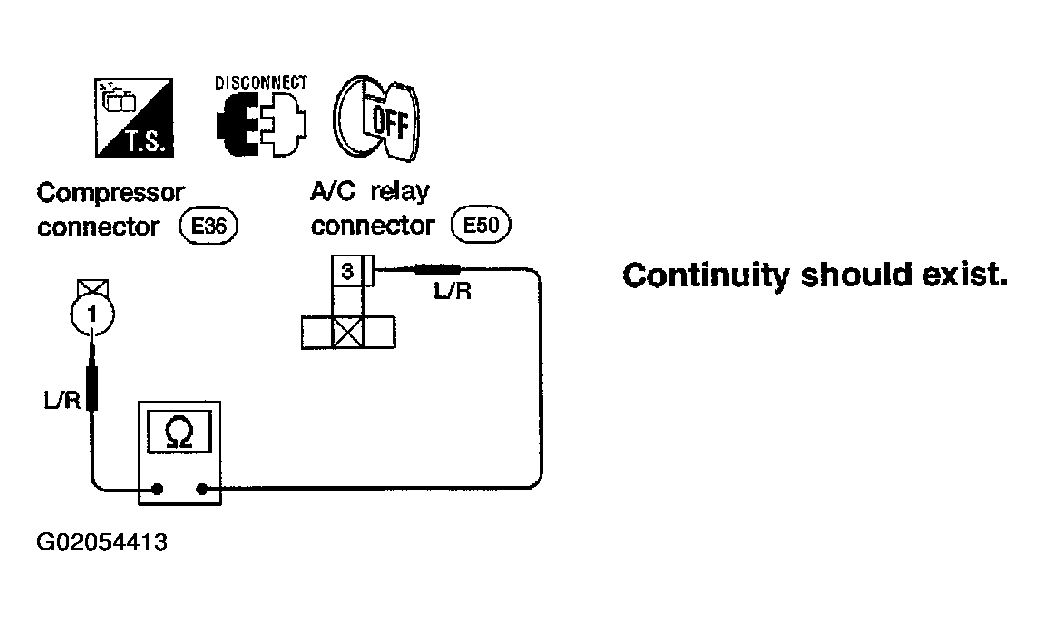

Fig 3: Checking Circuit Continuity Between A/C Relay Harness Terminal No 3 And Compressor Harness Terminal No 1Courtesy of NISSAN MOTOR CO., U.S.A.
If OK, check harness for short .
OK or NG
- OK: GO TO 4.
- NG: Repair harness or connector.
- CHECK POWER SUPPLY FOR A/C RELAY
Disconnect A/C relay.

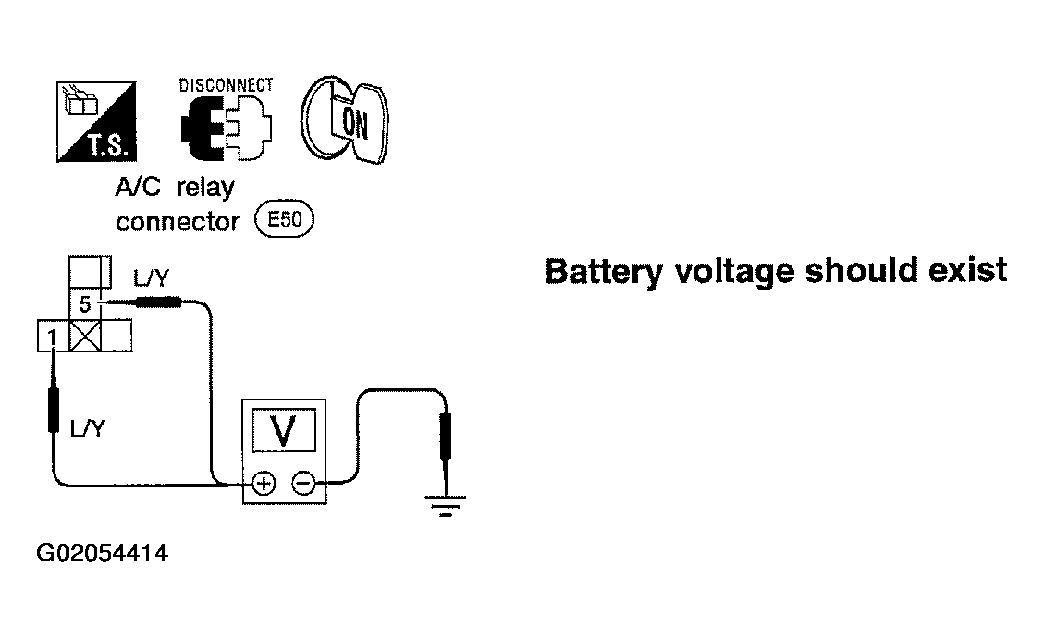

Do approx. 12 volts exist between A/C relay harness terminal Nos. 1, 5 and body ground?
Yes or No
- Yes: GO TO 5.
- No: Check power supply circuit and 10A (No. 15) fuse at fuse block.
- CHECK A/C RELAY AFTER DISCONNECTING IT
Refer to , "A/C RELAY ".
OK or NG
- OK: Reconnect A/C relay. GO TO 6.
- NG: Replace A/C relay.
- CHECK COIL SIDE CIRCUIT OF A/C RELAY
Reconnect A/C relay.

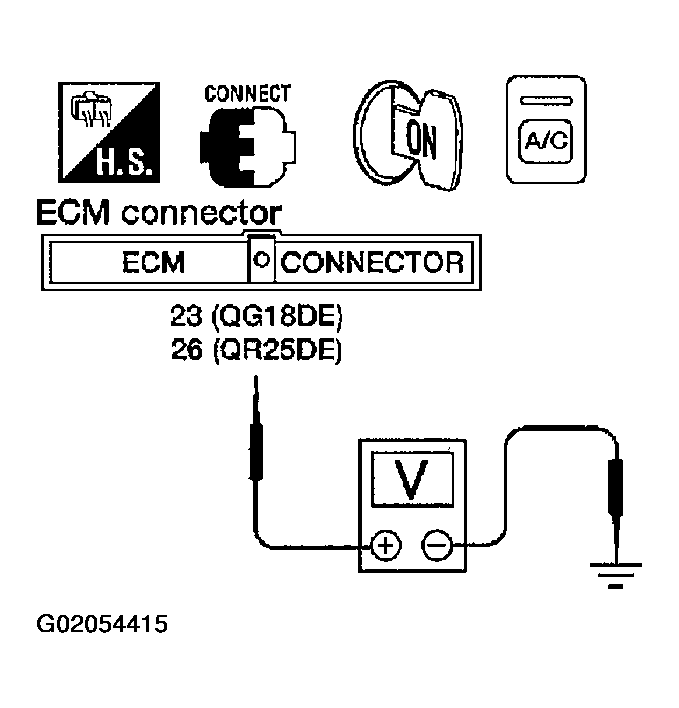

Do approx. 12 volts exist between ECM harness connector F22 terminal No. 23 (L) (QG18DE) or F54 terminal No. 26 (L) (QR25DE) and body ground?
Battery voltage should exist .
Yes or No
- Yes: GO TO 8.
- No: Disconnect A/C relay. Disconnect ECM harness connector. GO TO 7.
- CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND ECM HARNESS

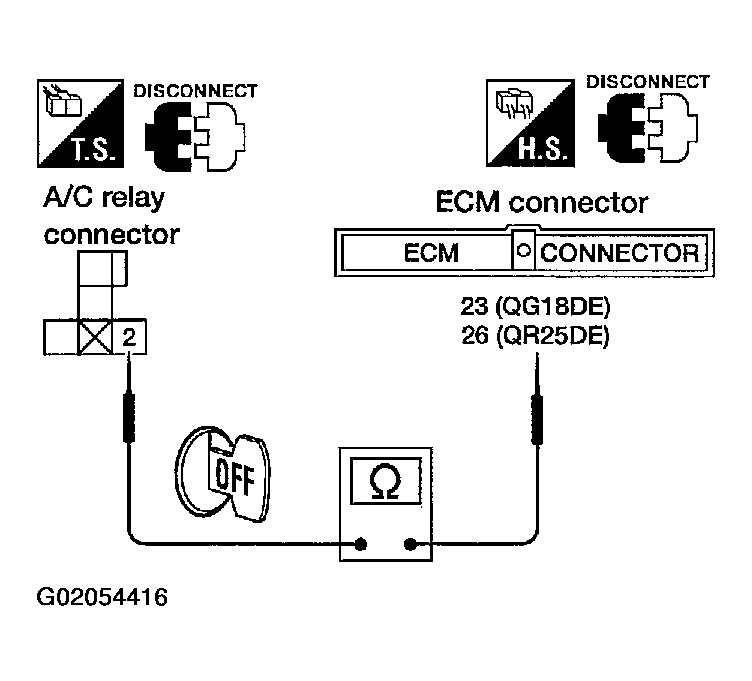

Check circuit continuity between A/C relay harness connector E50 terminal No. 2 (L) and ECM harness connector F22 terminal No. 23 (L) (QG18DE) or F54 terminal No. 26 (L) (QR25DE).
Continuity should exist .
If OK, check harness for short .
OK or NG
- OK: Check ECM. .
- NG: Repair harness or connector.
- CHECK VOLTAGE FOR ECM

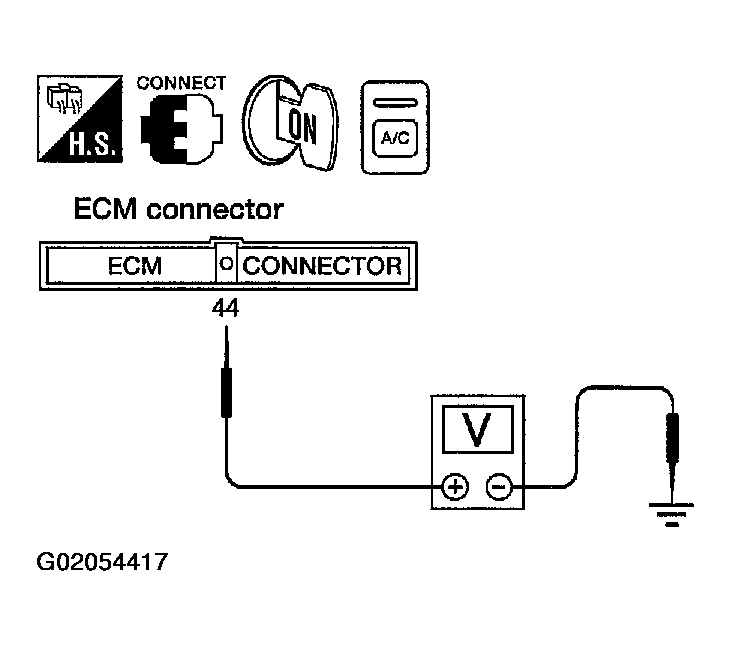

Do approx. 12 volts exist between ECM harness connector F22 (QG18DE) or F54 (QR25DE) terminal No. 44 (L/R) and body ground?
Battery voltage should exist .
Yes or No
- Yes: GO TO 9.
- No: Check harness and connector. If OK, check ECM. .
- CHECK REFRIGERANT PRESSURE SENSOR
Refer to , "REFRIGERANT PRESSURE SENSOR ".
OK or NG
- OK: GO TO 10.
- NG: Replace refrigerant pressure sensor.
- CHECK POWER SUPPLY FOR THERMO CONTROL AMP.

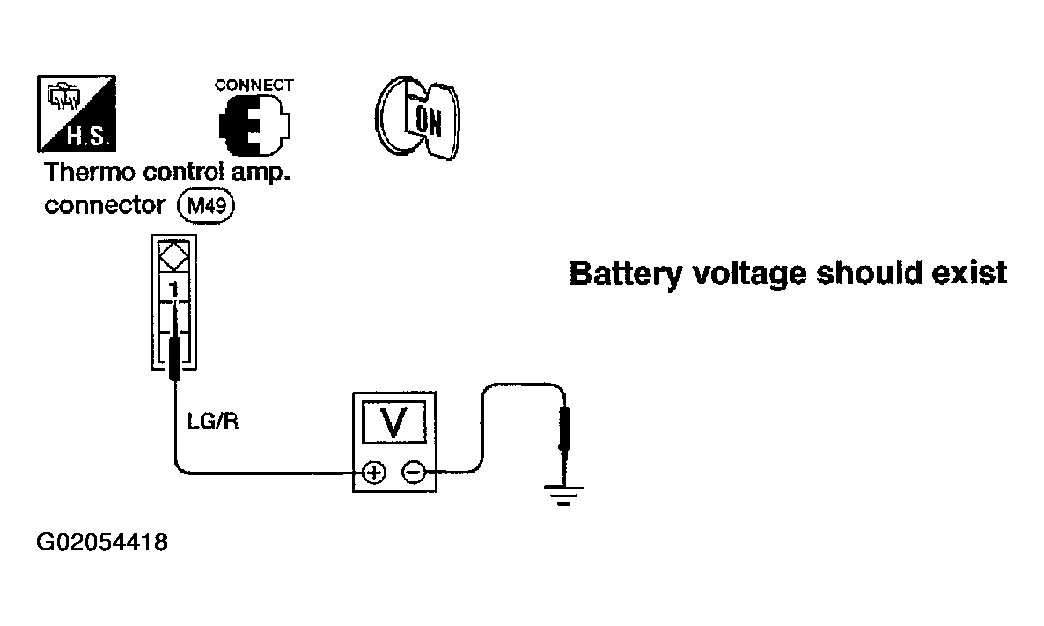

Do approx. 12 volts exist between thermo control amp. harness terminal No. 1 and body ground?
Yes or No
- Yes: GO TO 11.
- No:
- Check power supply circuit and 10A (No. 15) fuse at fuse block
.
- If OK, check for open circuit in wiring harness.
Repair or replace as necessary.
- If NG, replace fuse and check wiring harness for short circuit.
Repair or replace as necessary.
- If OK, check for open circuit in wiring harness.
- Check power supply circuit and 10A (No. 15) fuse at fuse block
.
- CHECK POWER SUPPLY FOR THERMO CONTROL AMP.

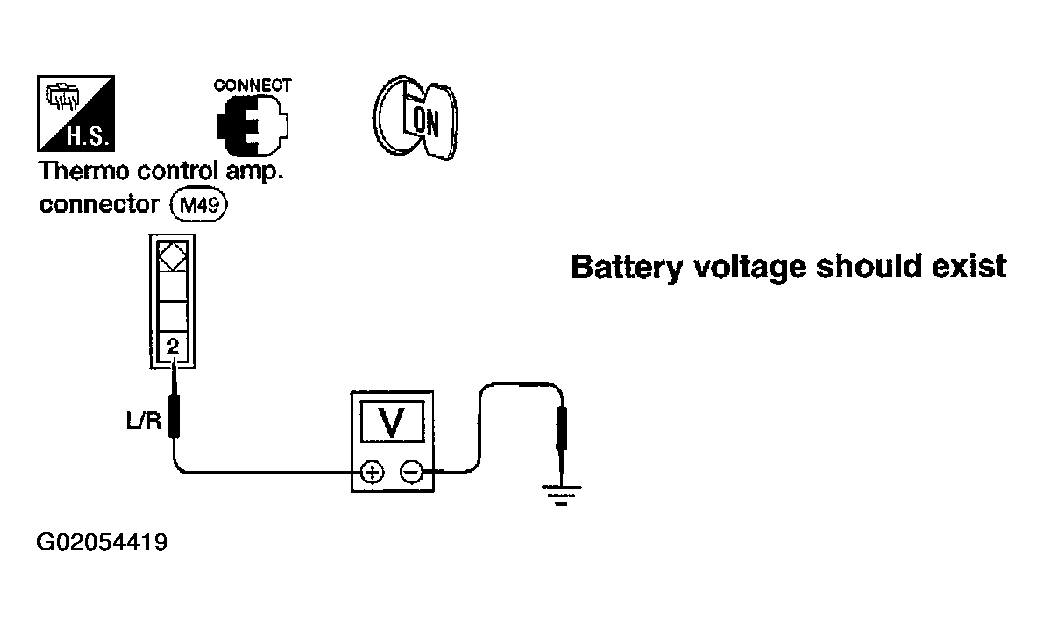

Do approx. 12 volts exist between thermo control amp. harness terminal No. 2 and body ground?
Yes or No
- Yes: GO TO 12.
- No: Repair or replace thermo control amp.
- CHECK THERMO CONTROL AMP. OPERATION
Disconnect thermo control amp. harness connector.

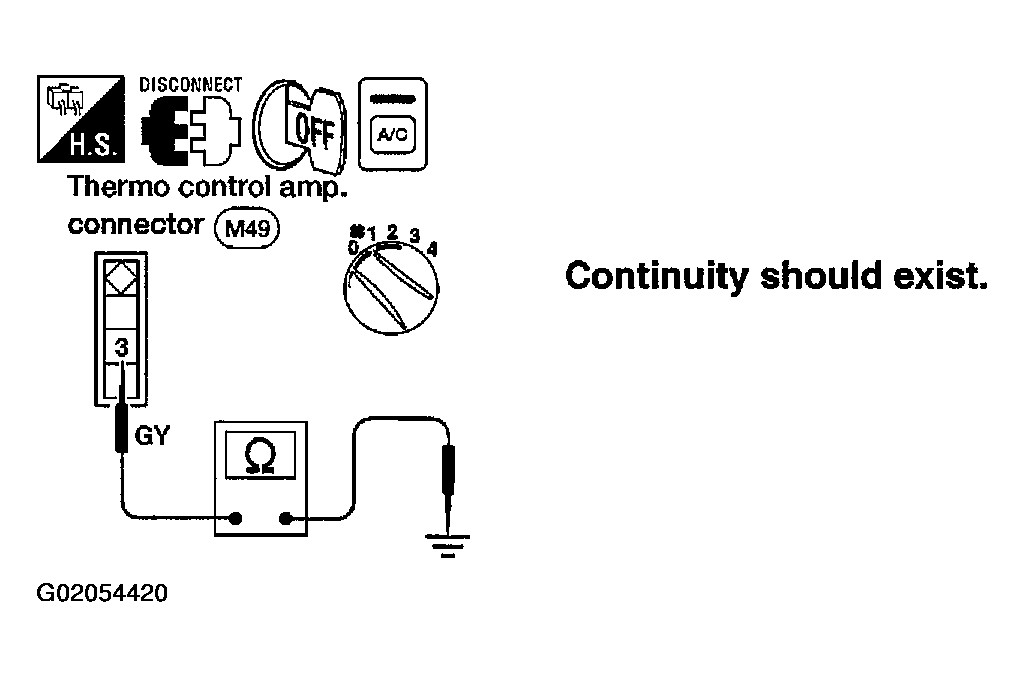

Check circuit continuity between thermo control amp. harness terminal No. 3 and body ground.
Fig 10: Checking Circuit Continuity Between Thermo Control Amp Harness Terminal No 3 And Body GroundCourtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 13.
- NG: GO TO 14.
- CHECK THERMO CONTROL AMP.
Refer to , "THERMO CONTROL AMP. ".
OK or NG
- OK: GO TO 14.
- NG: Replace thermo control amp.
- CHECK CIRCUIT CONTINUITY BETWEEN THERMO CONTROL AMP. AND A/C CONTROL UNIT
Disconnect A/C control unit harness connector.

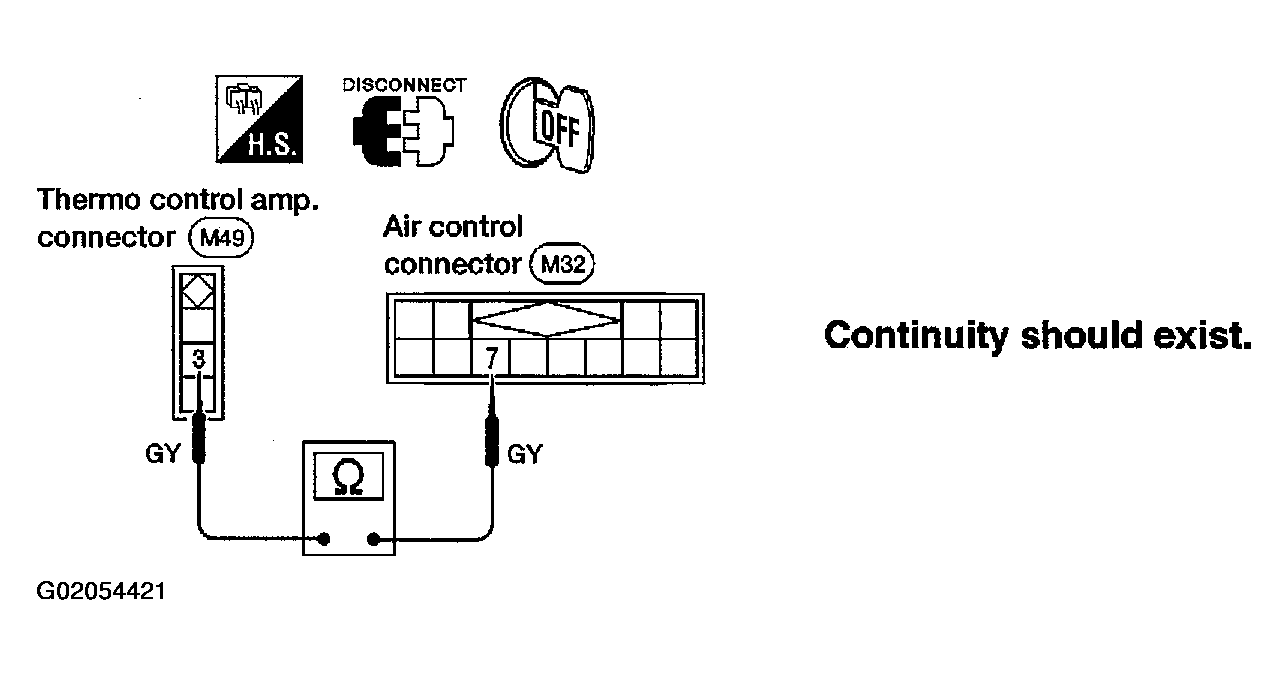

Check circuit continuity between thermo control amp. harness terminal No. 3 and A/C control unit harness terminal No. 7.
Fig 11: Checking Circuit Continuity Between Thermo Control Amp Harness Terminal No 3 And A/C Control Unit Harness Terminal No 7Courtesy of NISSAN MOTOR CO., U.S.A.
If OK, check harness for short .
OK or NG
- OK: GO TO 15.
- NG: Repair harness or connector.
- CHECK CIRCUIT CONTINUITY BETWEEN FAN CONTROL SWITCH AND A/C CONTROL UNIT
Disconnect A/C control unit and fan control switch.
Check circuit continuity between fan control switch harness terminal No. 6 and A/C control unit harness terminal No. 8.

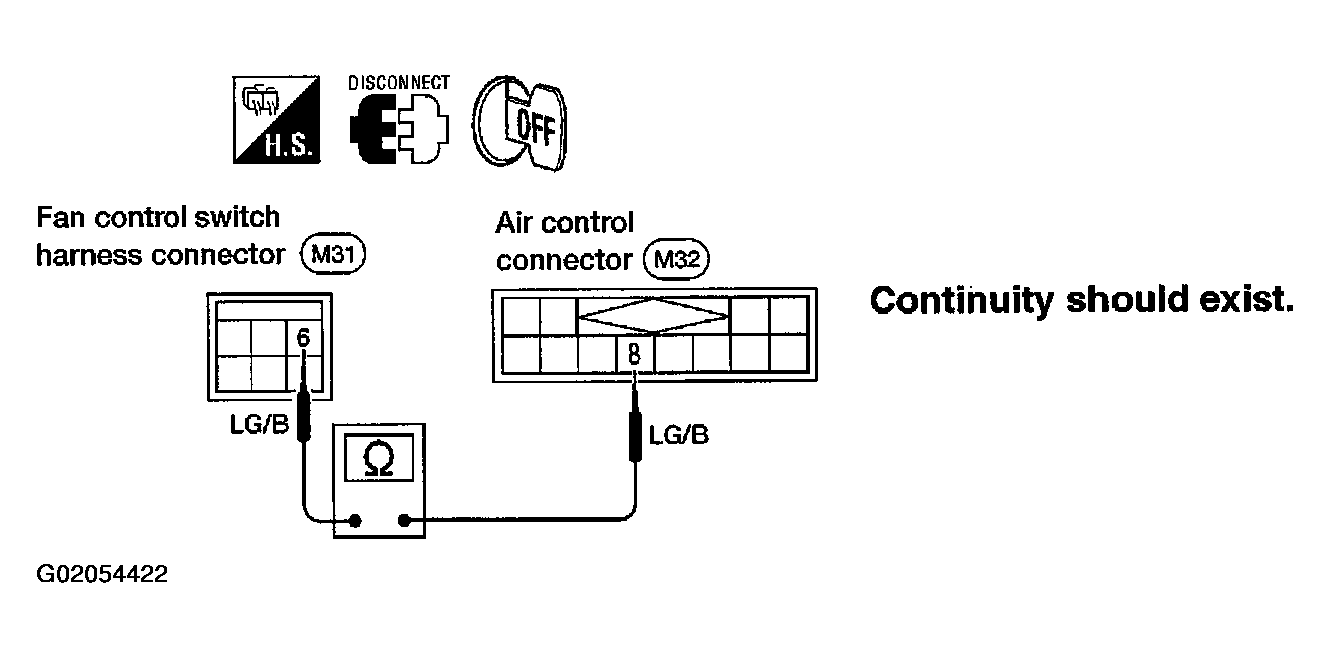

Fig 12: Checking Circuit Continuity Between Fan Control Switch Harness Terminal No 6 And A/C Control Unit Harness Terminal No 8Courtesy of NISSAN MOTOR CO., U.S.A.
If OK, check harness for short .
OK or NG
- OK: GO TO 16.
- NG: Repair harness or connector.
- CHECK FAN CONTROL SWITCH GROUND
Disconnect fan control switch harness connector.

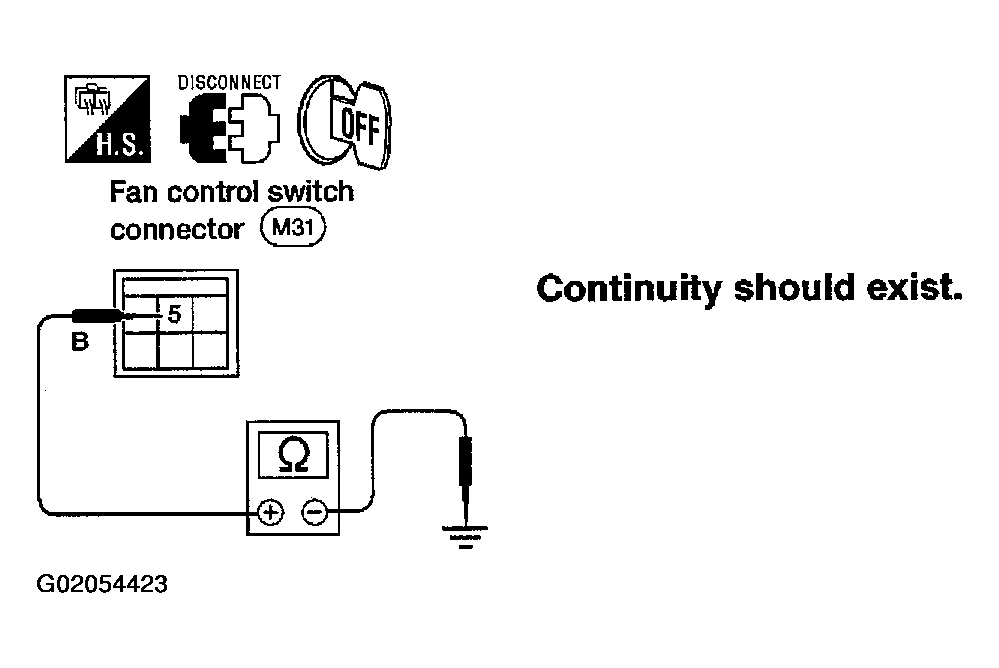

Does continuity exist between fan control switch harness terminal No. 5 and body ground?
Yes or No
- Yes: Replace A/C control unit.
- No: Repair harness or connector.
