A/C Relay

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminal Nos. 3 and 5.

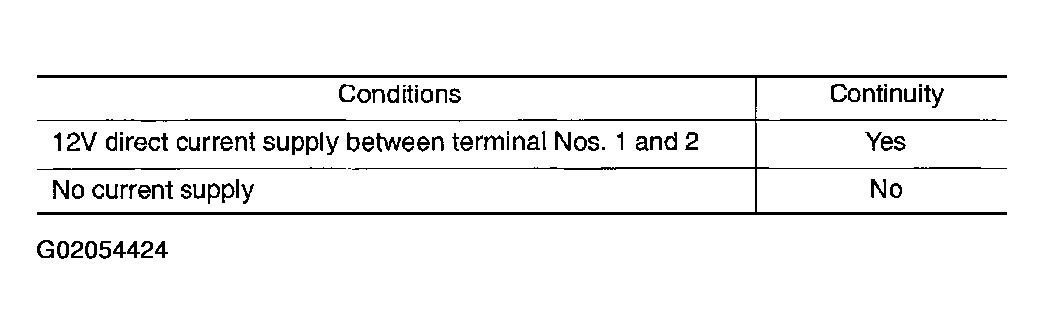

Fig 1: Continuity Reference Chart
G02054424Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace relay.

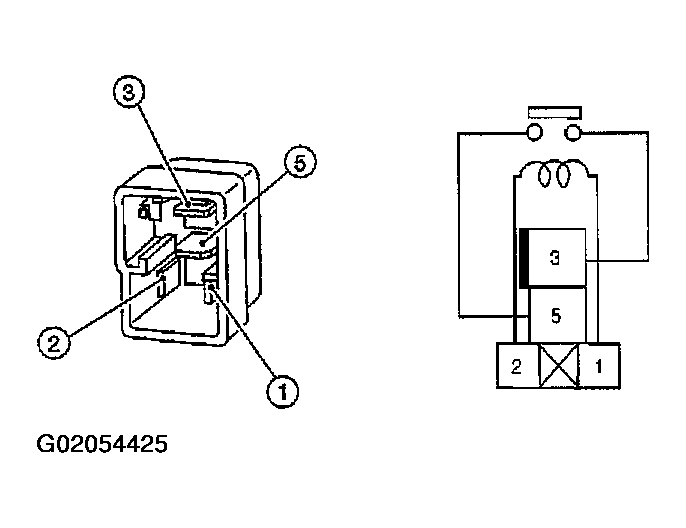

Fig 2: Checking Continuity Between Terminal No 3 And 5
G02054425Courtesy of NISSAN MOTOR CO., U.S.A.
