Combination Lamp Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to REMOVAL AND INSTALLATION .
  2. Ensure lighting switch is OFF.
  3. Disconnect the negative battery cable.
  4. Remove the combination lamp mounting bolts.
  5. Pull the combination lamp up and toward the front of the vehicle, disconnect connector, and remove from vehicle.

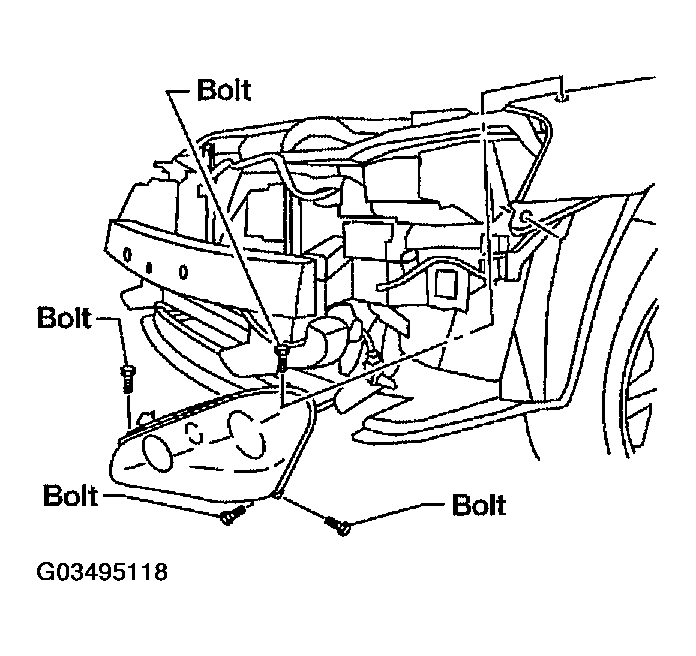

    Fig 1: Removing Combination Lamp & Mounting Bolts
    G03495118Courtesy of NISSAN MOTOR CO., U.S.A.
