Removal and Installation
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

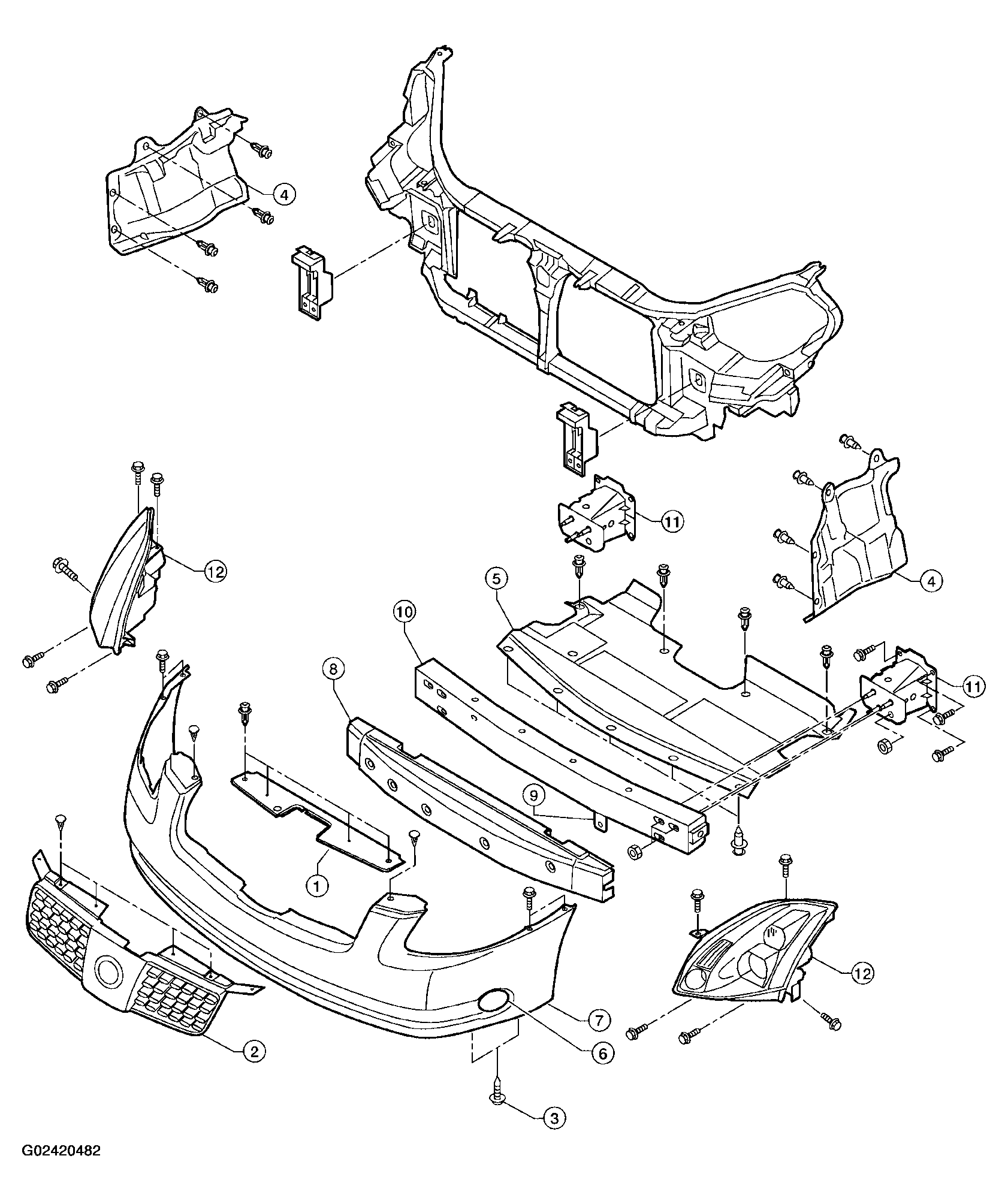

- Remove grille top cover.
- Remove radiator grille. Refer to "FRONT GRILLE ".
- Remove screws on each side of bottom of fascia that attach fascia to bottom of fender protector. Partially remove fender protector. Refer to "FENDER PROTECTOR ".
- Remove engine underside covers.
- Remove engine front undercover.
- Unplug connectors to cornering lights in fascia.
- Remove front bumper fascia.
- Pull off energy absorbing foam from front bumper.
- Unplug ambient temperature sensor where it is attached to front bumper reinforcement.
- Remove front bumper reinforcement.
- Remove front bumper supports.
- Unplug harnesses and remove headlight assemblies.
Installation is in the reverse order of removal.
