3. Perform Initialization With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Perform initialization with CONSULT-II.

For initialization, refer to CONSULT-II Operation Manual for NATS-IVIS/NVIS.

NOTE: If the initialization is not completed or malfunctions, CONSULT-II shows the message on the screen.

Can the system be initialized?

Yes >> System is OK.
No >> GO TO 4

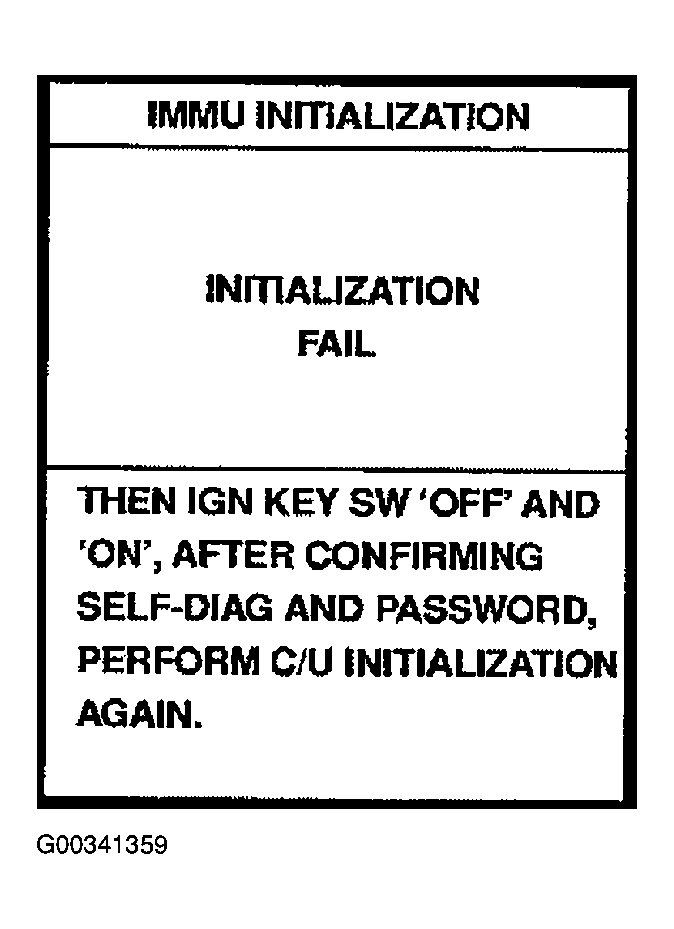

Fig 1: Checking Initialization With CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
