4. Perform Initialization With Consult-II Again

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Replace BCM.
Perform initialization with CONSULT-II.
For initialization, refer to CONSULT-II Operation Manual for NATS-IVIS/NVIS.

NOTE: If the initialization is not completed or malfunctions, CONSULT-II shows the message on the screen.

Can the system be initialized?

Yes >> System is OK. (BCM is malfunctioning. Ref. part No. A )
No >>
- ECM is malfunctioning.
- Replace ECM. Ref. part No. B
- Perform initialization with CONSULT-II.
  For initialization, refer to CONSULT-II Operation Manual for NATS-IVIS/NVIS".

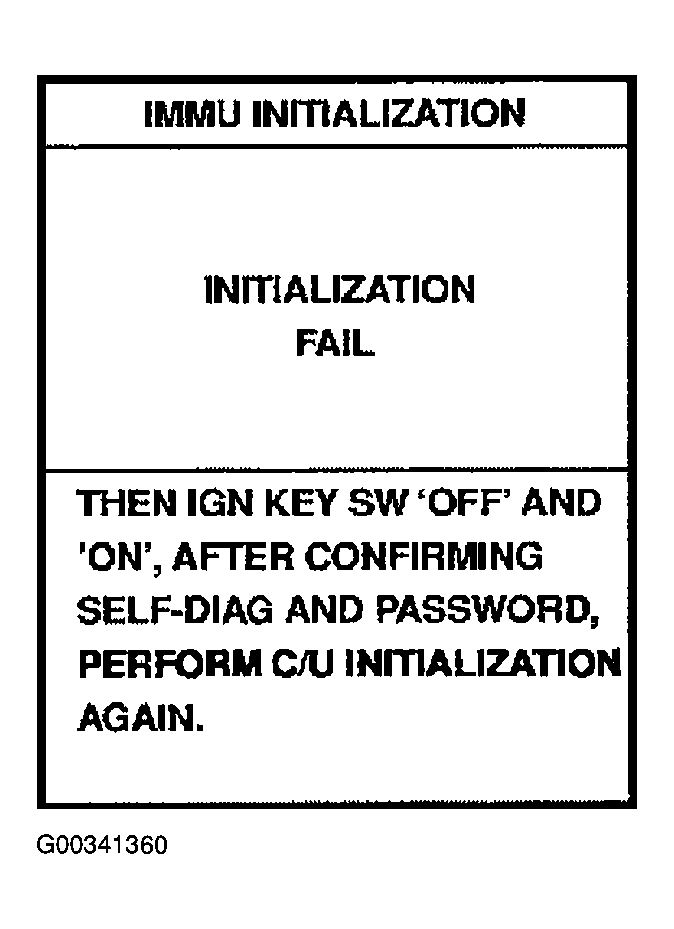

Fig 1: Checking Initialization With CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
