Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

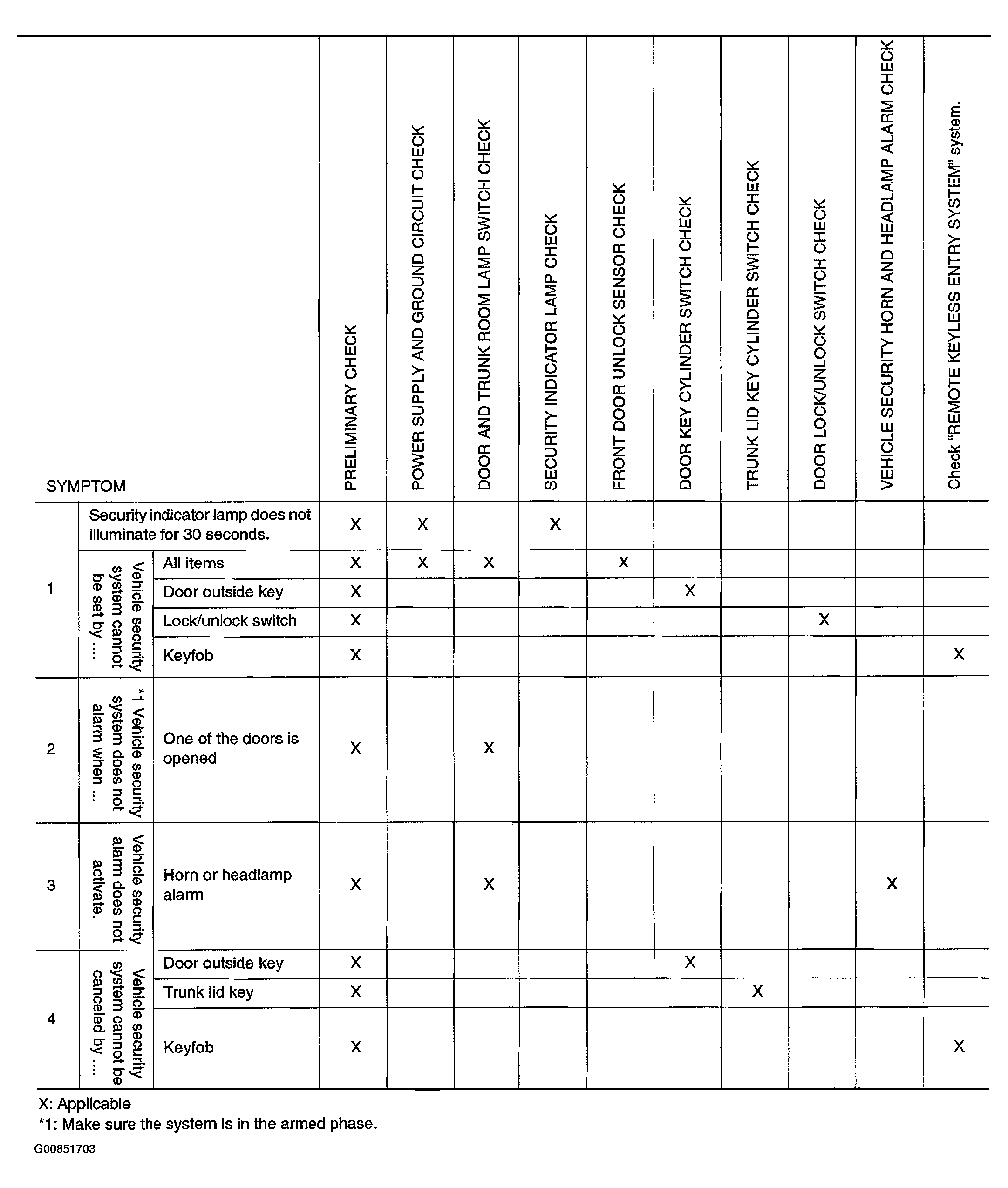

Fig 1: Identifying Symptom Chart
G00851703Courtesy of NISSAN MOTOR CO., U.S.A.

Before starting trouble diagnoses above, perform  "PRELIMINARY CHECK  ".

Symptom numbers in the symptom chart correspond with those of preliminary check.
