Preliminary Check

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.

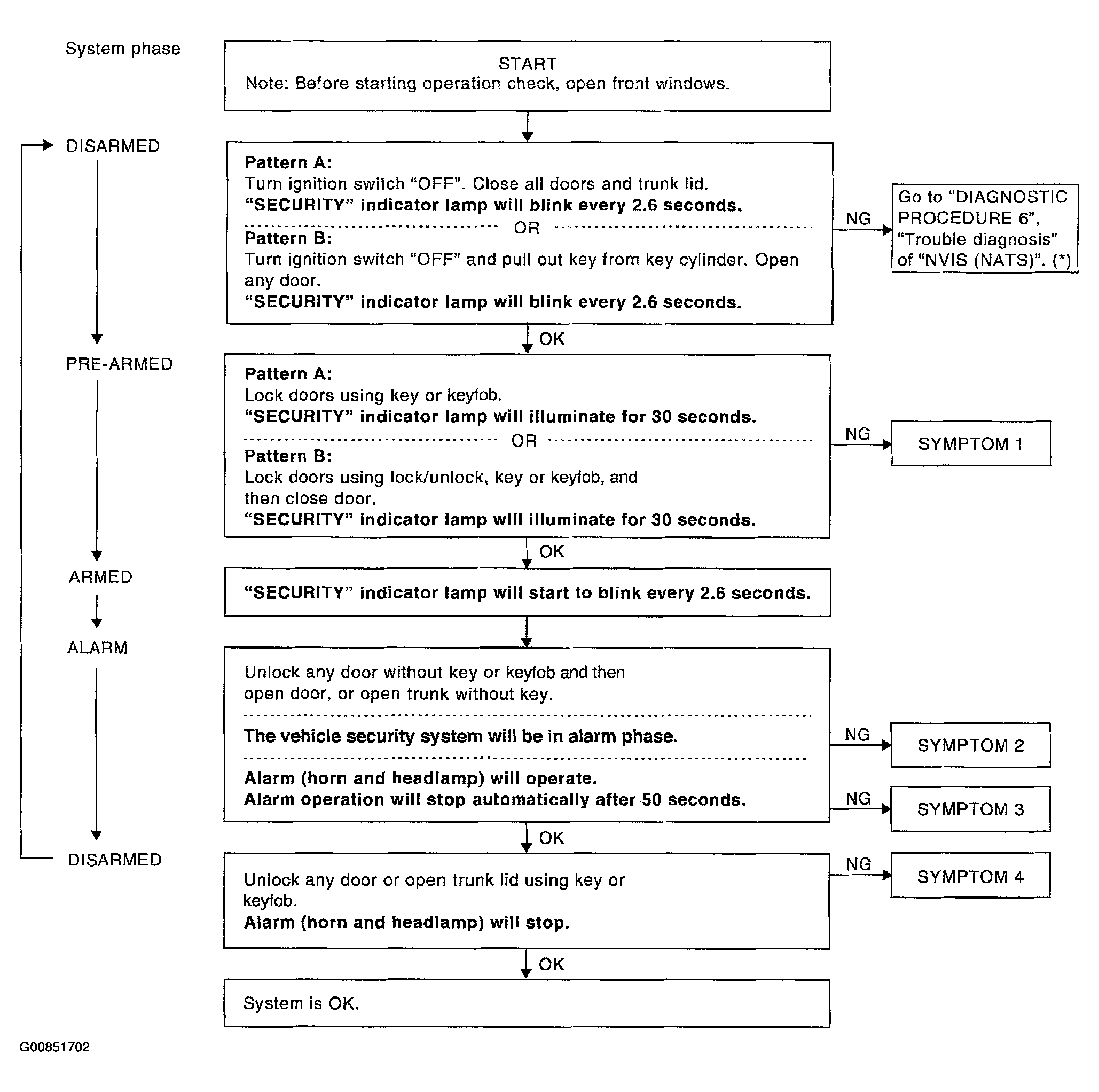

Fig 1: Preliminary Check
G00851702Courtesy of NISSAN MOTOR CO., U.S.A.

For details of "Pattern A" and "Pattern B" vehicle security system settings, refer to "INITIAL CONDITION TO ACTIVATE THE SYSTEM  ".

* : Refer to NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS .

After performing preliminary check, GO TO symptom chart on next page.
