18. A/T Does Not Shift: D3 --> 22, When Selector Lever "D" --> "2" Position

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

A/T does not shift from D3 to 22 when changing selector lever from "D" to "2" position.

CHECK PNP SWITCH CIRCUIT
With CONSULT-II

Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to PNP switch circuit?

Without CONSULT-II

Does self-diagnosis show damage to PNP switch circuit?

Yes or No
1. Yes: Check PNP switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH "
2. No: Go to "9. A/T DOES NOT SHIFT: D1 --> D2 OR DOES NOT KICKDOWN: D4 --> D2 ".

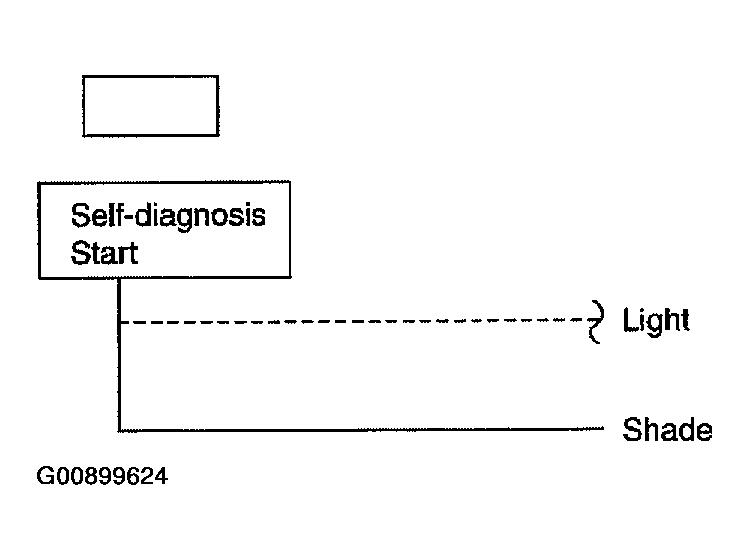

Fig 1: Checking PNP Switch Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
