Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK VALVE RESISTANCE
1. Turn ignition switch to "OFF" position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 3 and ground.

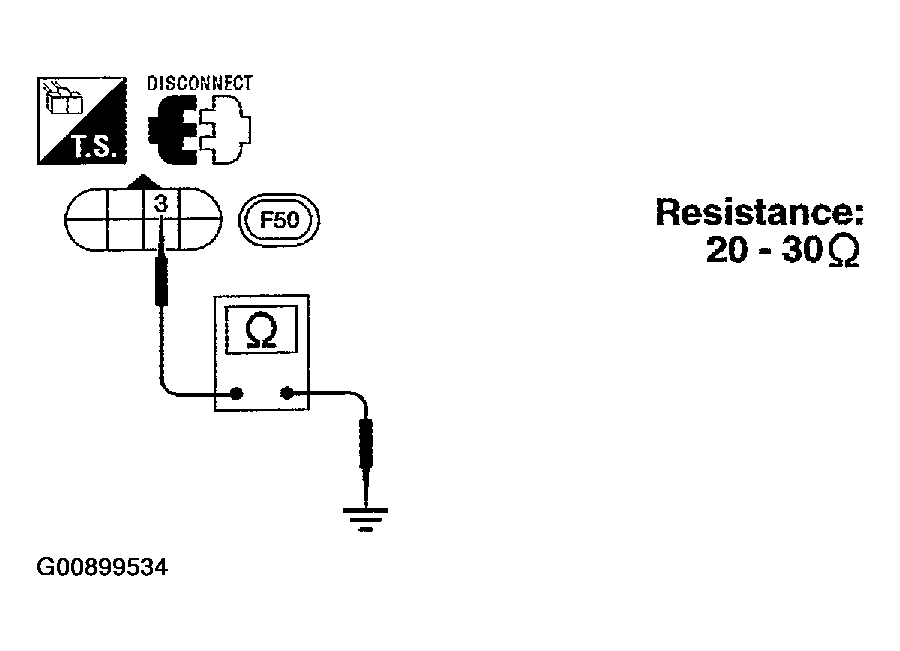

Fig 1: Checking Valve Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 2.
2. NG:
  1. Remove control valve assembly. Refer to "REMOVAL ".
  2. Check the following items:
    - Overrun clutch solenoid valve
      Refer to "COMPONENT INSPECTION ".
    - Harness of terminal cord assembly for short or open
CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to "OFF" position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 3 and TCM harness connector terminal 20.

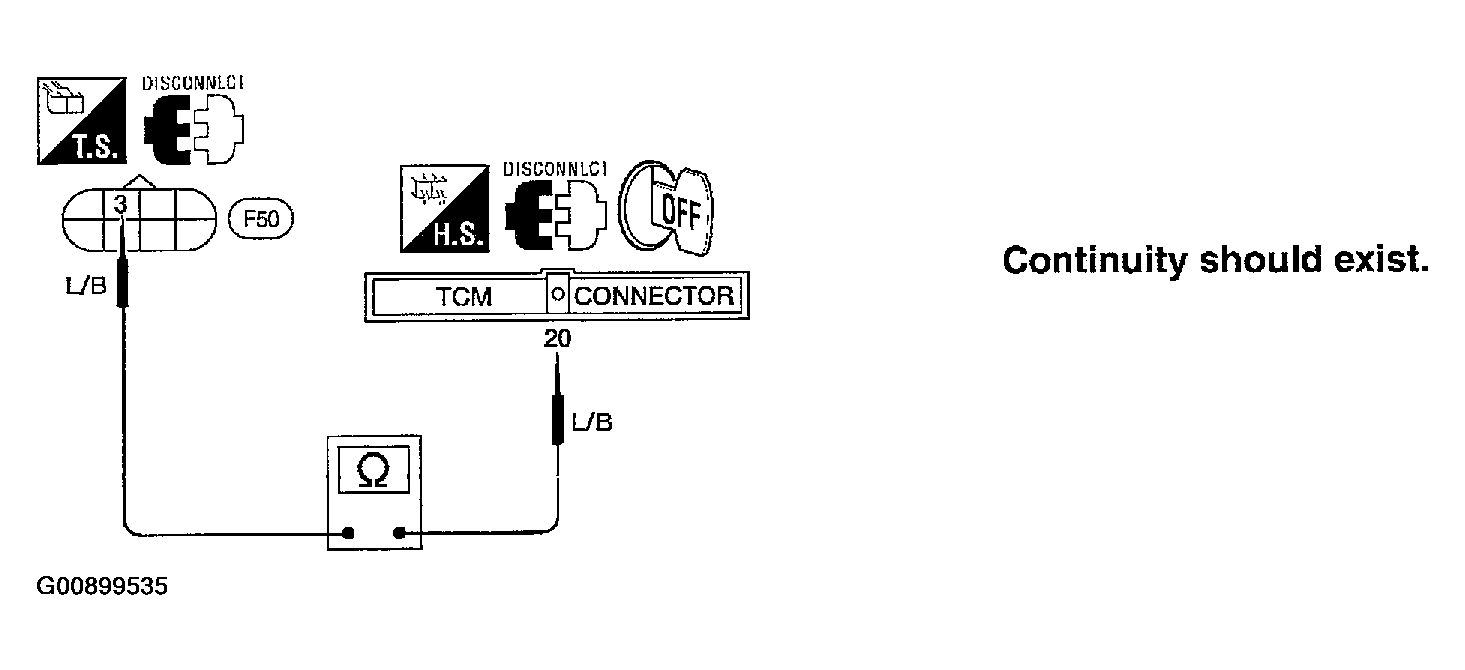

  Fig 2: Checking Continuity Between Terminal 3 And TCM Harness Connector Terminal 20
  Courtesy of NISSAN MOTOR CO., U.S.A.

  If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
1. OK: GO TO 3.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK DTC
Perform "DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE ".

OK or NG
1. OK: INSPECTION END
2. NG:
  1. Perform TCM input/output signal inspection. See INPUT/OUTPUT SIGNAL OF TCM .
  2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
