Park/Neutral Position Switch

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals 1 and 2 and between terminals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through each position.

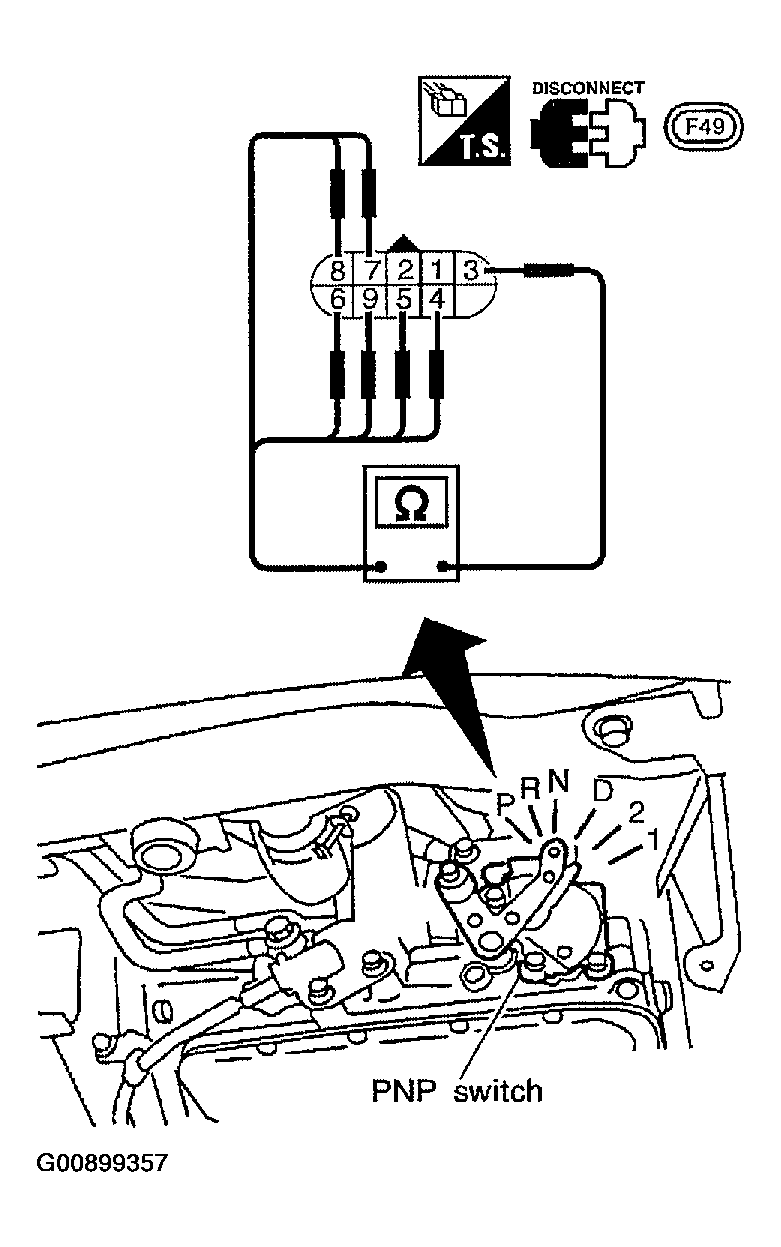

Fig 1: Checking Park/Neutral Position Switch Continuity (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

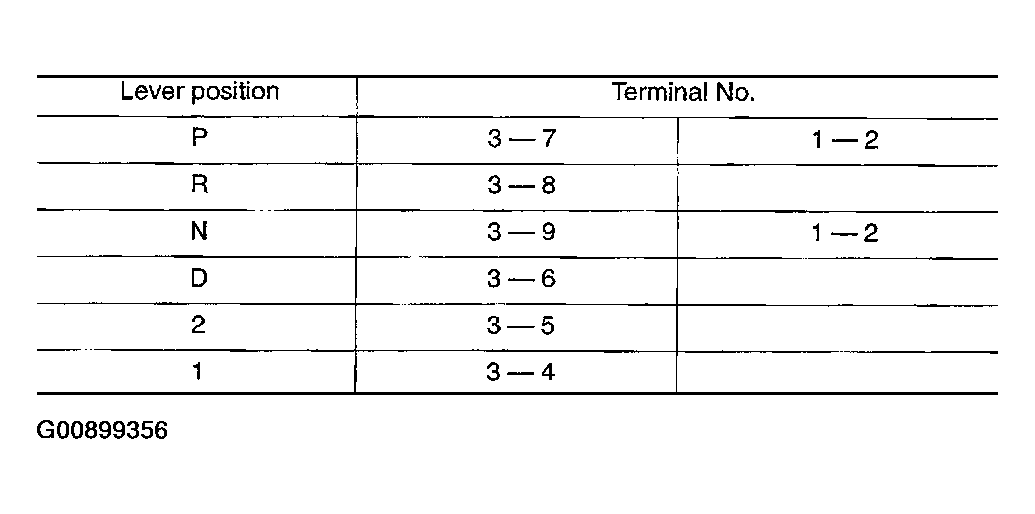

Fig 2: Checking Park/Neutral Position Switch Continuity (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, check again with control cable disconnected from manual shaft of A/T assembly. Refer to step 1.
If OK on step 2, adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".
If NG on step 2, remove PNP switch from A/T and check continuity of PNP switch terminals. Refer to step 1.
If OK on step 4, adjust PNP switch. Refer to "PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT ".
If NG on step 4, replace PNP switch.

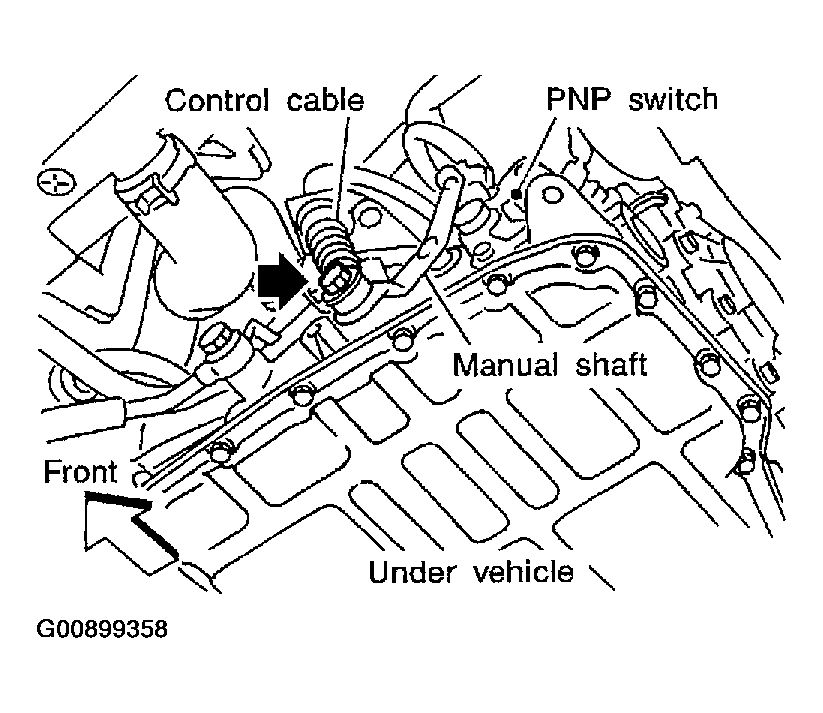

Fig 3: Disconnecting Control Cable From Manual Shaft Of A/T Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
