Park/Neutral Position (PNP) Switch Adjustment

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control cable end from manual shaft.
  2. Set manual shaft in "N" position.
  3. Loosen PNP switch fixing bolts.

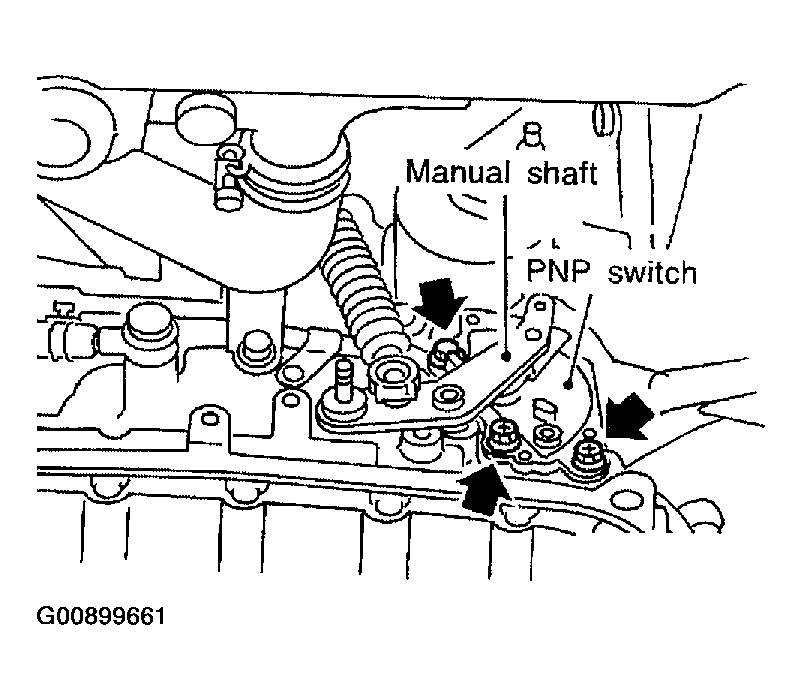

    Fig 1: Loosening PNP Switch Fixing Bolts
    G00899661Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Use a 4 mm (0.157 in) pin for this adjustment.
    1. Insert the pin straight into the manual shaft adjustment hole.
    2. Rotate PNP switch until the pin can also be inserted straight into hole in PNP switch.
  5. Tighten PNP switch fixing bolts.
  6. Remove pin from adjustment hole after adjusting PNP switch.
  7. Reinstall any part removed.
  8. Adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".
  9. Check continuity of PNP switch. Refer to "COMPONENT INSPECTION ".

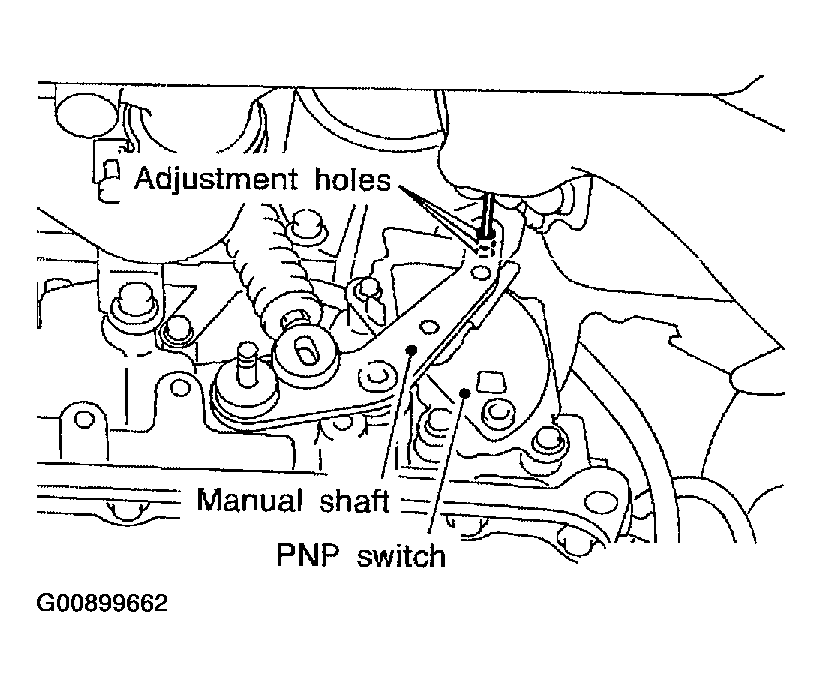

    Fig 2: Adjusting PNP Switch
    G00899662Courtesy of NISSAN MOTOR CO., U.S.A.
