Overall Function Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use this procedure to check the overall function of the EVAP canister vent control valve circuit. During this check, a DTC might not be confirmed.
NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE  and for diagnostic procedure for DTC P0442, see DIAGNOSTIC PROCEDURE (2.5L)  or DIAGNOSTIC PROCEDURE (3.5L)  under DTC P0442: EVAP CONTROL SYSTEM.

For overall function check, see Fig 1.

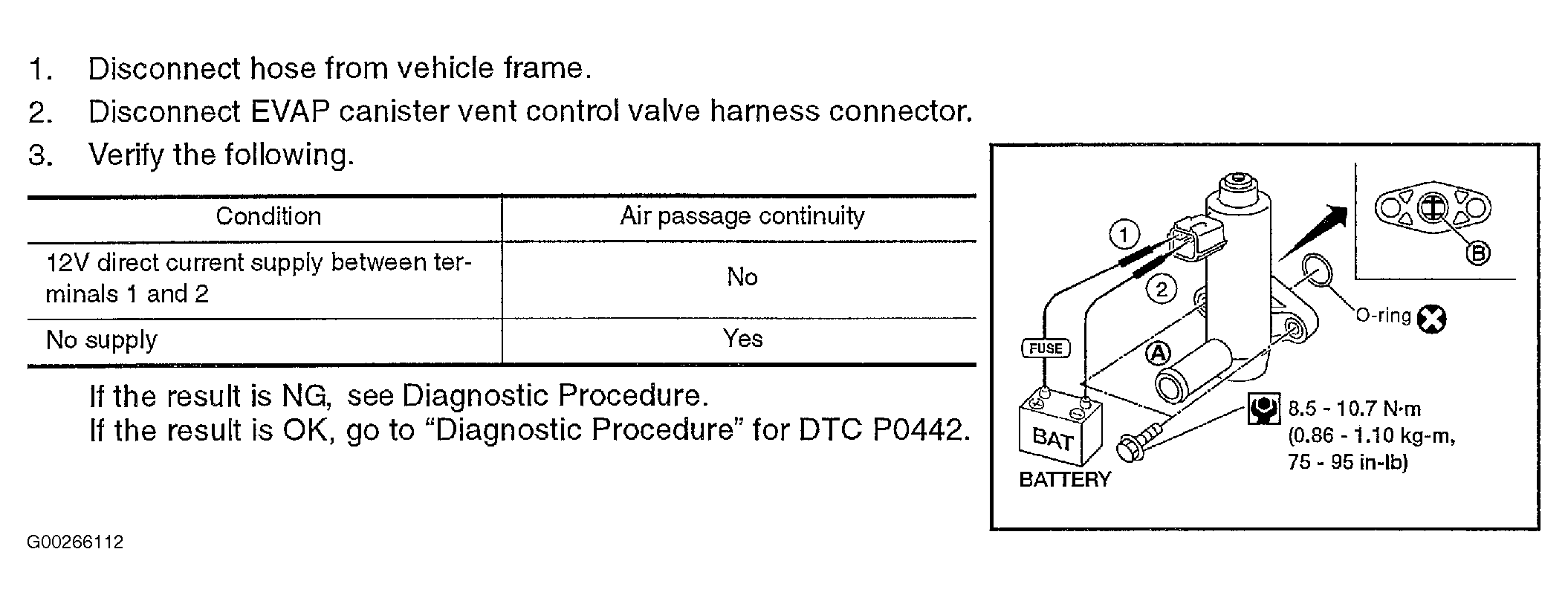

Fig 1: Identifying Overall Function Check For DTC P1448: EVAP Canister Vent Control Valve
G00266112Courtesy of NISSAN MOTOR CO., U.S.A.
