DTC Confirmation Procedure (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If DTC P0011 is displayed with DTC P1111, first perform trouble diagnosis for DTC P1111 . If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
NOTE: Before performing the following procedure, confirm that battery voltage is between 10V and 16V at idle.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode. See Fig 1.
  3. Maintain the following conditions for at least 20 consecutive seconds.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE (2.5L) .

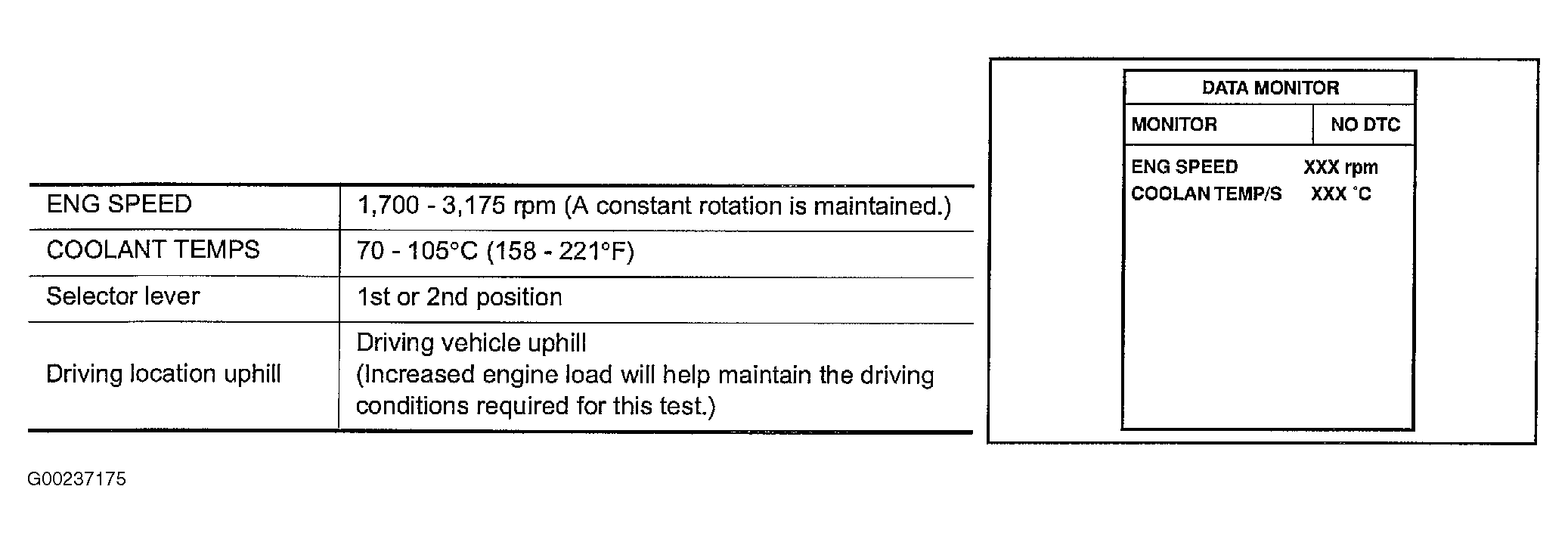

Fig 1: Identifying Data Monitor Mode (2.5L)
G00237175Courtesy of NISSAN MOTOR CO., U.S.A.
