Diagnostic Procedure (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For system and component testing, see SYSTEM & COMPONENT TESTING article.

For diagnostic procedure (2.5L), see Fig 1.

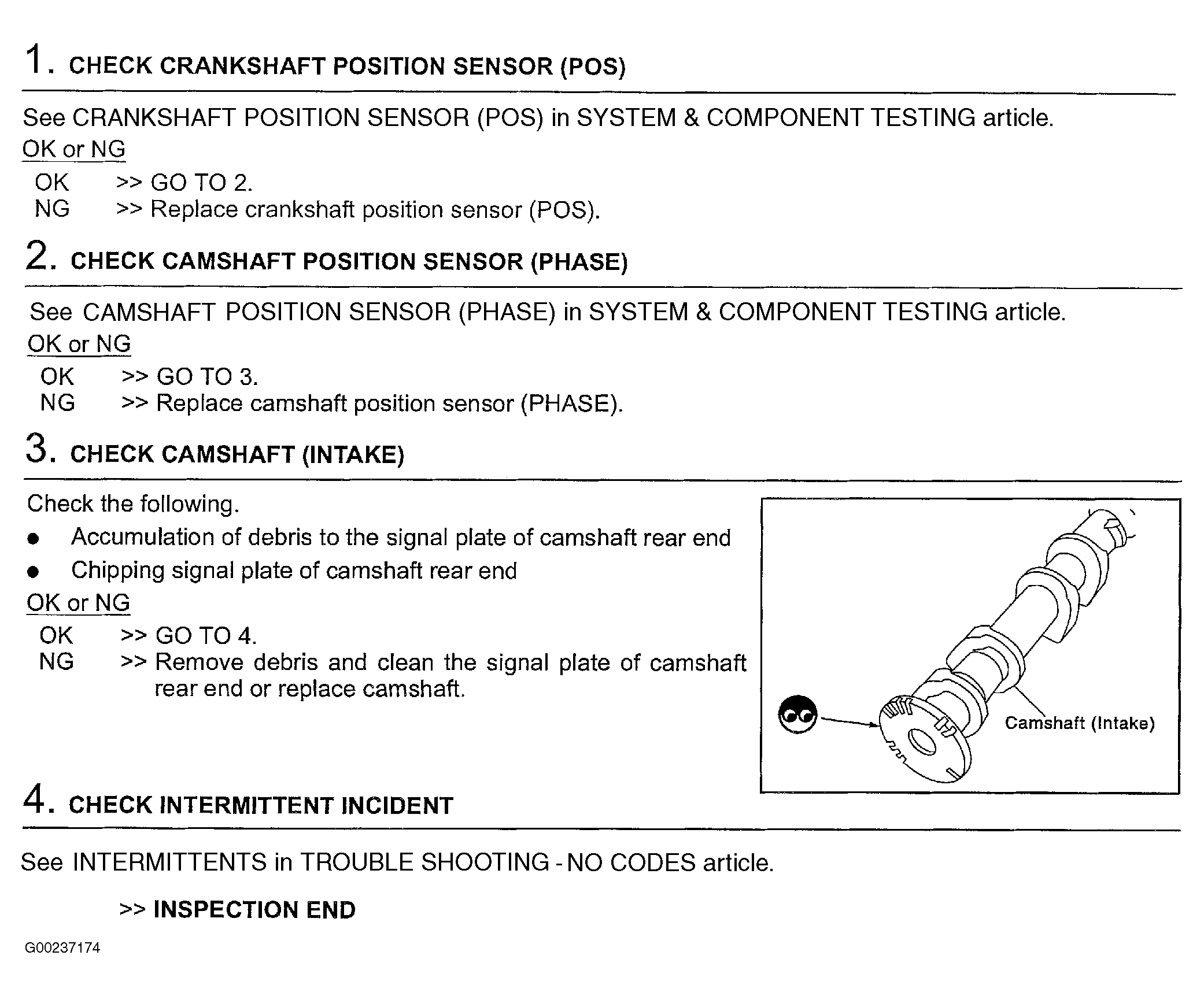

Fig 1: Identifying Diagnostic Procedure For DTC P0011: IVT Control (2.5L)
G00237174Courtesy of NISSAN MOTOR CO., U.S.A.
