Illumination Control Switch

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower driver instrument panel. Refer to "INSTRUMENT LOWER PANEL LH "
  2. Carefully lift tabs and pull illumination control switch out of lower driver instrument panel.
  3. Installation is the reverse order of removal.

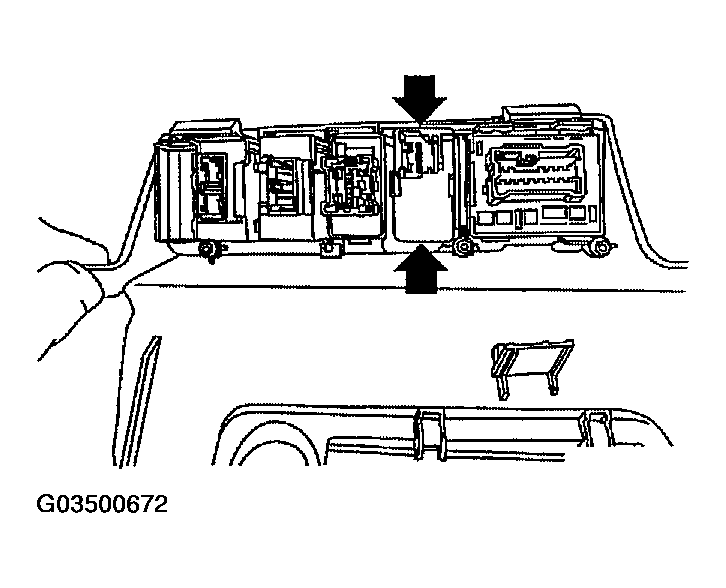

    Fig 1: Removing Lower Driver Instrument Panel
    G03500672Courtesy of NISSAN MOTOR CO., U.S.A.
